Bitvisus 8K60 Artistic Video Wall Controller with 64G Memory and 10-Layer Superimposition for Multi-Screen Displays

Name: Bitvisus 8K60 Artistic Video Wall Controller with 64G Memory and 10-Layer Superimposition for Multi-Screen Displays
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-VJ-106Pro
Price: 100000000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-VJ-106Pro

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T,PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    6x1 2x3 Video Wall Controller, Irregular Splicing Video Wall Controller, Bitvisus 8K60 Video Wall Controller


Model Number:	BIT-VJ-106Pro	Brand Name:	Bitvisus
Place Of Origin:	China	Feature:	Irregular Splicing(horizontal, Vertical, Oblique)
Splicing Method:	Support Normal Splicing And Irregular Splicing	Audio:	3.5mm Audio Splitter Connector
Input:	1x HDMI 2.0	Output:	6x HDMI 1.3
Control:	PC Control	Power Interface:	DC12V2A

Model Number:	BIT-VJ-106Pro
Brand Name:	Bitvisus
Place Of Origin:	China
Feature:	Irregular Splicing(horizontal, Vertical, Oblique)
Splicing Method:	Support Normal Splicing And Irregular Splicing
Audio:	3.5mm Audio Splitter Connector
Input:	1x HDMI 2.0
Output:	6x HDMI 1.3
Control:	PC Control
Power Interface:	DC12V2A

Product Description

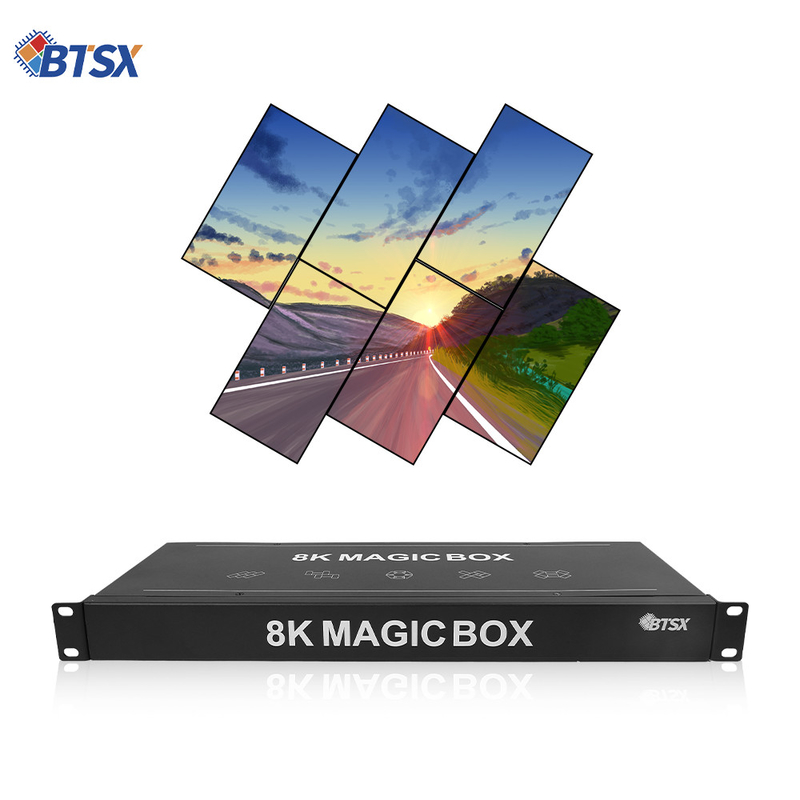

Bitvisus 8K60 6x1 2x3 PIP Artistic Video Wall Irregular Splicing Video Wall Controller

The VJ-106Pro stands apart as a versatile splicing masterpiece, fusing an array of advanced capabilities. It excels in 8K, 4K, and 2K video playback mastery, enabling seamless multi-screen integration (including tailored point-to-point and irregular-shaped displays). Its innovative window management system allows for creative multi-window layouts and instant switching, coupled with a robust 10-layer superimposition feature. The processor also boasts window roaming, precise slice display, and captivating edge effects, setting it apart in the realm of audio-visual solutions.

Features

6 screens with any angle and shape splicing
1 channel HDMI2.0 capture input, 6 channels HDMI1.3 output
Support 8k 60 (7680x4320@60Hz) video decoding
Built-in 64G memory to store materials
Quickly cut video files in seconds
Material slicing function, the material screen can be edited and selected at will
Supports multi-layer material overlay, material picture-in-picture, and up to 10 layers of material overlay
Support output blind plugging (please note that 12 and 34 must be connected at the same time)
Supports RS232/RS485/TTL multiple control protocols and interfaces
Support external U disk copy + playback function (Max. 1 USB drive)
Support network screen projection echo monitoring function
Built-in players support playing two different videos and two sets of different pictures at the same time
Support rolling subtitle function
Supports edge special effects functions (edge indentation, blur level, matte level, amplification, mirroring)

Ideal for a diverse spectrum of applications, the VJ-106Pro is tailored for commercial showcases (revolutionizing multi-screen setups and LED displays), advertising platforms, vibrant bars, sophisticated catering venues, entertainment hubs, cultural tourism experiences, exhibitions, and beyond. It's the ultimate tool for professionals seeking to elevate their audio-visual presentations to the next level.

Product Specifications

VJ-106Pro
Input Interface	1xHDMI 2.0
Line Length	4K60: 5m; 1080P60: 10m
Output Interface	6xHDMI1.3
Line Length	1080P60: 10m
Audio	3.5mm audio separation interface
Control Method	PC host computer
Control Protocol	RS232/RS485/TTL
Alien Adjustment	Support
Window Layout	Any window opening *10, overlay, roaming
Material Management	Video and picture playback control
Memory	64G
Power Supply	DC 12V 2A
Power Consumption	≤ 14W
Operating Temperature	≤ 60℃
Size	440x160x45mm
Shell Material	1U aluminum shell
Weight	1.8kg
Packing List	Equipment1, power supply1, network cable1, certificate1, warranty card*1
After-sales Service	2 years warranty

FAQ

Why Choose Bitvisus?

We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment (weekends and holidays excluded)
OEM/ODM offered for our customers
We are one of leading Manufacturer in this field

How to order?

Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details
We will reply you with proforma invoice based on your order request
Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment

Warranty & After-sale

Our products come with 12 months warranty and life-time service support
You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models

Shipment & payment

T/T, Visa, PayPal, Western Union, L/C available
DHL, UPS, EMS, FedEx, Air freight, Sea freight supported
