Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-MSE-4K60-103PRO
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

bitvisus1*3 2*3 high resolution video wall controller hdmi extender

Description
Place Of Origin: Guangdong, China Brand Name: Bitvisus
Model Number: BIT-MSE-4K60-103PRO Dimension (L X W X H): 6.2cm*21.5cm*7.3cm
Maximum Output Pixel: 330MHz Input Interface: HDMI / DP
Output Interface: HBT *3 Power Supply: 12V @ 2A /AC-DC

bitvisus1*3 2*3 high resolution video wall controller hdmi extender

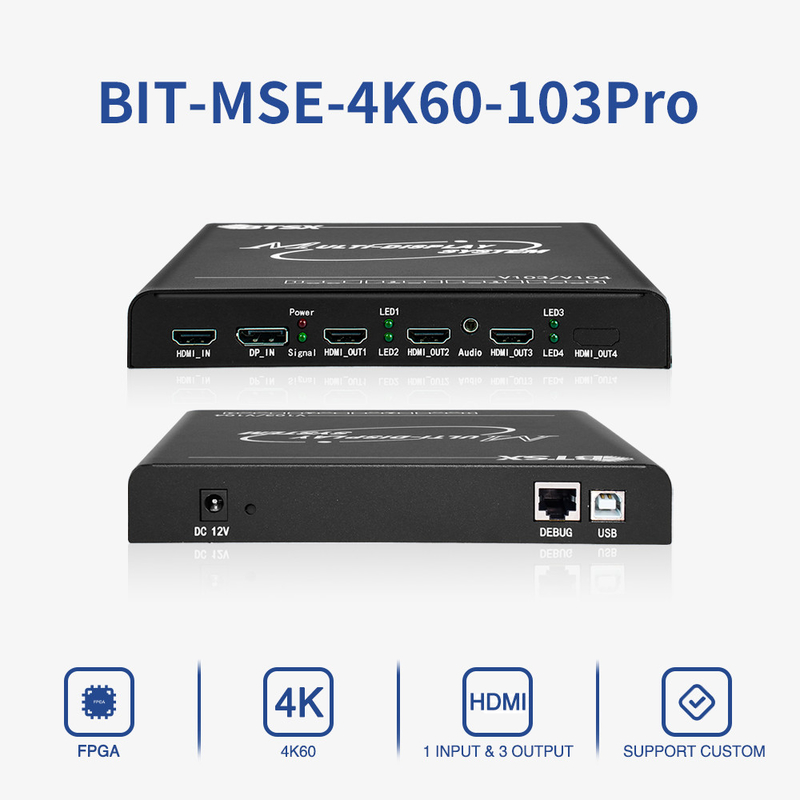

MSE-HBT-4K60-103PRO is an industrial-grade high-performance product specially developed for the demand for multichannel projection fusion. It adopts DP, DVI, or HDMI / DP input interface, HBT standard output port, and supports chassis.



bitvisus1*3 2*3 high resolution video wall controller hdmi extender 0





Product Characteristics

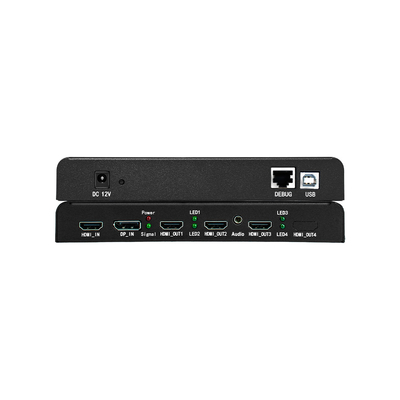

1.BIT-MSE-4K60-103Pro is an industrial grade high-performance Product specially developed for the demand of multichannel Projection fusion. It adopts DP, DVI or HDMI / DP input interface, HDBaseT standard output port, and supports chassis .
2.BIT-MSE-4K60-103Pro Version. Higher resolution support 2x3840x2160@30Hz,3840x2160x2@30Hz,5760x1200@60Hz,compatible with low resolution.
3.Support to modify the EDID through the USB interface.
4.45nm high-end Programmable FPGA chip, which is full hardware real-time Processing architecture and extremely fast Processing speed without delay.
5.Industrial design with thickened 6-layer PCB and 16KV anti-static , strong Product stability.
6.Support parallel operation to meet the real-time display demand of large screen.
7.Low power design, the internal adopts conduction heat dissipation without any external heat dissipation measures, so the reliability is very high.



bitvisus1*3 2*3 high resolution video wall controller hdmi extender 1



Application Scenario

High resolution desktop application, large screen wall, command and dispatching system, multi screen video monitoring, engineering display application, multi-channel Projection, virtual reality, ring theater, large advertising wall, LCD / LED multi screen, etc.



Specifications



Product name BIT-MSE-4K60-103Pro
Maximum video pixel frequency of input interface 600MHz
Maximum video pixel frequency of output interface 300MHz

BIT-MSE-4K60-103Pro

Highest resolution

2x3840x2160@30Hz,3840x2160x2@30Hz

3x1920X1200@60Hz; 3x1920X1080@60Hz

Default resolution: 3072x768@60Hz

Input interface type

HDMI interface, DP interface (choose one from two, HDMI priority)

Supports HDCP2.2

Out interface type

HDMI interface, DP interface (choose one from two, HDMI priority)

Supports HDCP2.2

Output line length 15 meter copper wire
Power Supply 12V@2A AC-DC Power Supply
Quality assurance One year
