Product Details:
|
| Brand: | Bitvisus | Origin: | China |
|---|---|---|---|
| Pseudolaric Acid: | BIT-VWC-104R | Output Single Port Support Resolution: | 1920x1080@60Hz |
| Input Support Maximum Wire Length: | 3M(HDMI Fibre Optic Cable Is Not Recommended） | Input Rotation: | 90/180/270° |
| Input Interface Type: | HDMI 2.0x1 | Output Connector Type: | HDMI 1.3x4, HDMI 2.0x1 (loop) |
| Product Size: | 233x108x28.7mm | Package Weight: | 1.2KG |

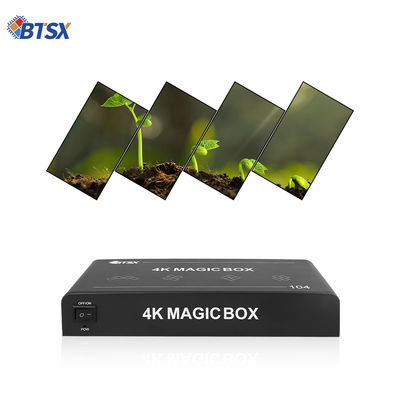

The BIT-VWC-104R rotary splicer is an industrial-grade, high-performance device specifically designed for multi-desktop operations. It features a high-definition processing chip, supporting input resolutions of 3840x2160@30Hz and 1920x1080@60Hz, and outputting at a resolution of 1920x1080@60Hz. With HDMI input and output interfaces, it is widely applicable in KTV, large screen walls, engineering displays, advertising walls, and LCD multi-screens.
Supports HDMI 2.0 and HDCP 2.2 input.
Offers ultra-high resolution output up to 1920x1080@60Hz.
Enables 90/180/270 degree rotation in 2x2/1x2/1x3/1x4 modes.
Pure hardware design for plug-and-play operation without the need for software.
Features low power consumption, energy-saving, and environmentally friendly design with internal conduction cooling and high reliability without requiring external cooling measures.
| Pseudolaric acid | BIT-VWC-104R |
| Input Interface Type | HDMI 2.0x1 |
| Output Connector Type | HDMI 1.3x4,HDMI 2.0x1(loop) |
| Maximum video pixel frequency of input interface | 600MHz |
| Maximum video pixel frequency of output interface | 165MHz |
| Input single port support resolution | 3840x2160@30Hz,1920x1080@60Hz |
| Output single port support resolution | 1920x1080@60Hz |
| Input Support Maximum Wire Length | 3M(HDMI fibre optic cable is not recommended) |
| Maximum line length supported by output | 15M |
| Input Rotation | 90/180/270° |
| Sound frequency | SPDIF Audio separation |
| Control method | Pushbutton, Remote Control |
| Product Size | 233x108x28.7mm |
| Package weight | 1.2KG |
| List of accessories | Remote Control x1, 12V Power Supply x1, HDMI Cable x1, Certificate of Conformity x1, Warranty Card x1 |
| Power supply | 12V@2A AC-DC |
| Warranty | 3 years |
| Power (output) | 5.88W |
