Bitvisus 8 in 9 Out Video Wall Controller with DP 1.2 and 4K60 Input for Multi-Screen Display
Bitvisus 4K60 8 in 9 Out Video Wall Controller RS232 HDMI/DP Network Web Control 2x2 Video Wall Matrix Controller Key Features Supports 8 inputs (4×4K60 with HDMI/DP option, 4×1080P60) and 9×1080P60 outputs with 1×HDMI local display back Remote control via RS232, network WEB control compatible with ...
HDMI DP Video Wall Controller
,4K60 Video Wall Controller

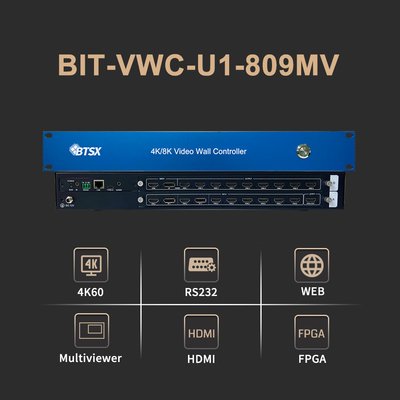

- Supports 8 inputs (4×4K60 with HDMI/DP option, 4×1080P60) and 9×1080P60 outputs with 1×HDMI local display back
- Remote control via RS232, network WEB control compatible with Windows, Mac, tablets, and mobile devices

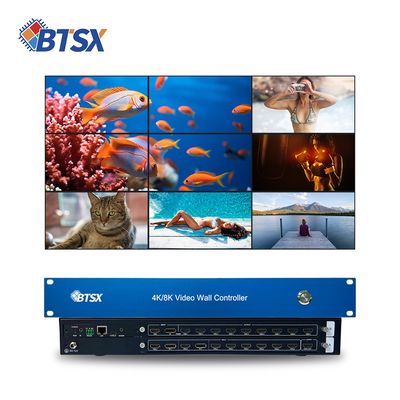

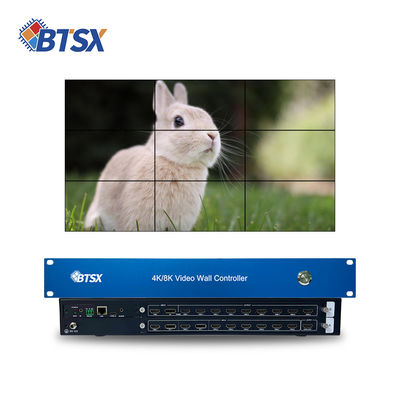

- Multi-screen display capability for combined or independent content display across screens
- Seamless input signal switching without black screen or flashing
- Built-in output signal enhancement for stable long-distance transmission
- Industrial-grade 28nm process chip with advanced heat dissipation for reliable long-term operation

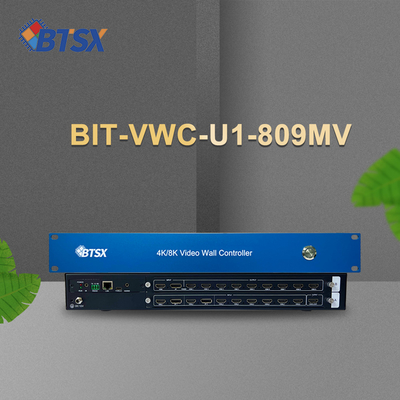

The BIT-VWC-U1-809MV is a professional multi-channel video signal processor and switcher developed by Bitvisus. With 8 input ports and 9 output ports, it can receive signals from multiple sources and distribute them flexibly to display devices.

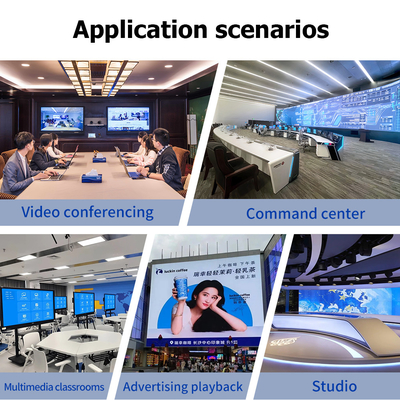

Enables large screen video wall applications with simultaneous multi-signal display and real-time seamless matrix switching. Ideal for video conferencing, multimedia classrooms, command centers, digital signage, and broadcast studios.
| Product Name | BIT-VWC-U1-809MV |
|---|---|
| Input Maximum Pixel Clock Frequency | 600MHz |
| Input Interface | IN1-2: 2×HDMI 2.0, 2×DP 1.2 IN3-4: 2×HDMI 2.0 IN5-8: 4×HDMI 1.3 |
| Input Resolution | IN1-4: 3840×2160P60 IN5-8: 1920×1080P60 |
| Color Depth | 8bit |
| Input Color Format | RGB444, YUV444, YUV422, YUV420 |
| Output Interface | 9×HDMI 1.3, 1×HDMI 2.0 |
| Output Maximum Pixel Clock Frequency | 154MHz |
| Control Interface | Remote control, RS232, Network Web interface |
| Audio | 3.5MM Audio Split |
| Power Supply | 12V5A |
