Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell

Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell
Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell
Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell

Large Image :  Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-Ma-U1-MC0808
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: 452.31
Packaging Details: Packing box
Payment Terms: Paypal, HSBC, T/T,Visa
Supply Ability: 1000Piece/30day
Contact Now

Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell

Description
Highlight:

4K HDMI Matrix Switcher

,

Video Matrix Switcher 8x8

Product Description:

Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell 0

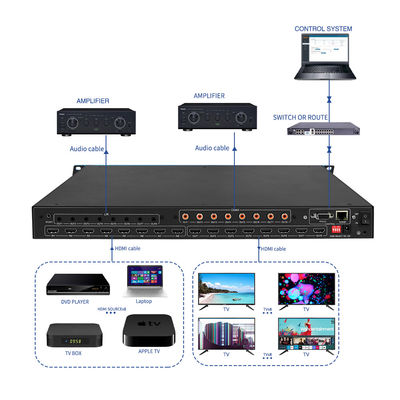

BIT-Ma-U1-MC0808 is a 8 inputs 8 outputs all-digital ultra-clear matrix switcher, which supports a resolution of up to 4Kx2K@60Hz,supports 3D video,HDCP2.2/1.4 protocol,8 bit,10 bit color depth, which can bring customers a lossless true, non-delayed ultra-HD full digital experience. Provide a variety of control interfaces (RS232, APP, WEB) to meet customer control needs.

8 HDMI inputs
HDMI signal input port.Connect an HDMI source device via an HDMI cable, such as DVD player or set-top box.
8 HDMI output
HDMI signal output port.Connect an HDMI display device,such as a TV or monitor,via an HDMI cable.

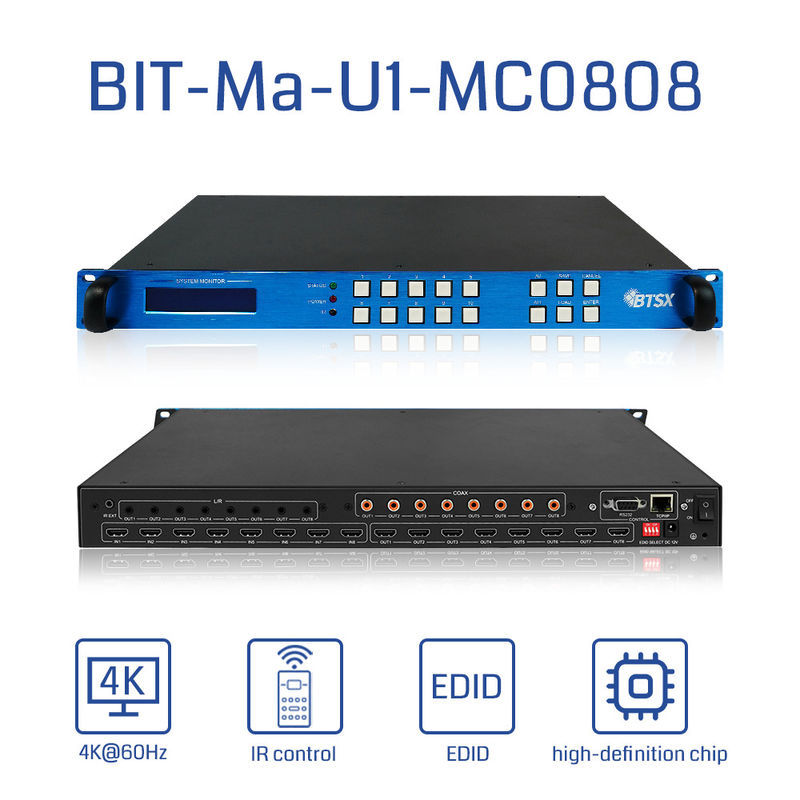

Product model BIT-Ma-U1-MC0808
shell metal shell
color black
size 440mm(L)×200mm(W)×44.5mm(H)
weight 4kg
Power supply
nput:AC100~240V50/60Hz
Output:DC12V/2-3A(US/EUstandard,CE/FCC/ULcertification)
power consumption 43W
operating temperature -10°C~45°C/14°F~113°F
Storage temperature -20°C~60°C/-4°F~140°F
Relative humidity 20~90%RH(non-condensing)
Warranty One year





Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell 1Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell 2Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell 3

Switching/Copying Dual Mode
Multiple display modes for your choic
Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell 4Bitvisus 4K HDMI Matrix Switcher 8x8 8 Inputs 8 Outputs With Metal Shell 5
Product Features:
1. Comply with HDMI2.0 and HDCP2.2/1.4 specifications.
2. Video resolution up to 4Kx2K@60Hz.
3. Support 18Gbps video bandwidth.
4. Support Dolby Vision,HDR10+ and HLG.
5. All HDMI output ports support 4K->1080P video scaling function.
6. Supported HDMI audio formats up to 7.1 high-definition audio channels.
7.Support stripping audio from HDMI source to coaxial audio port and analog audio port output.
8.Support dial code for EDID selection.
9.1U rack mount design with front panel LCD display.
10.Control by front panel buttons,infrared remote control,host computer(RS-232andRJ45)
