Bitvisus 4K60 PIP Point to Point HDMI Multi-screen Processor Video Wall Controller
Bitvisus 4K60 PIP Point to Point HDMI Multi-screen Processor Video Wall Controller
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,HDMI,HDCP,RoHS,FCC
PRODUCT MODEL

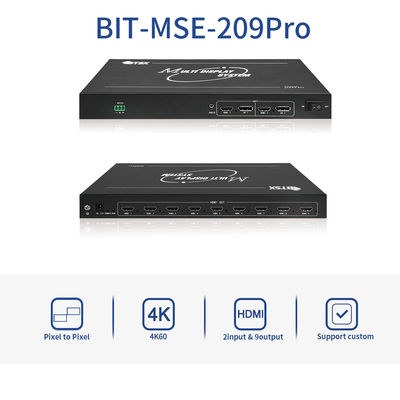

BIT-MSE-209Pro
Trading Properties
MOQ
1Piece
Unit Price
Contact Us
Payment Method
Paypal, HSBC, T/T,Visa
Supply Capacity
1000Piece/30day
Product Summary
Point to point video wall controller ☞Supports ultra-high resolution 4K60(3840x2400@60Hz) ☞Adopt HDMI/DP input interface, HDMI output interface; ☞Support 2 in 9 out, can be combined with any splicing mode within 9 screens; ☞Fixed EDID design, support customized input resolution; ☞Support 1xN, Nx1, ...
Product Details
Highlight:
4K60 PIP Video Wall Controller
Product Name:
Split-Screen Video Processors
Feature:
Point To Point
Audio:
HDMI/3.5mm Audio Interface
Resolution:
4Kx2K@60H
Input:
2 HDMI 2.0/DP 1.2
Output:
9 HDMI 1.3
Power Supply:
DC 12V/2A
Power Consumption:
22W
Products Size:
30*14.2*3.5cm
Warranty:
3 Years
Product Description

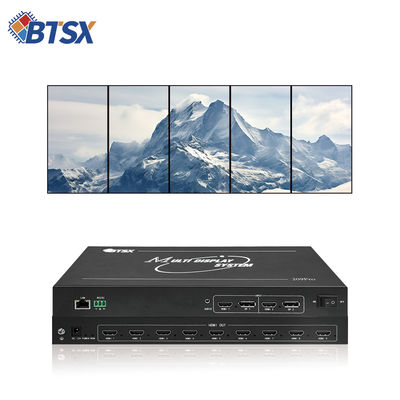

Point to point video wall controller
☞Supports ultra-high resolution 4K60(3840x2400@60Hz)
☞Adopt HDMI/DP input interface, HDMI output interface;
☞Support 2 in 9 out, can be combined with any splicing mode within 9 screens;
☞Fixed EDID design, support customized input resolution;
☞Support 1xN, Nx1, NxN, point to point, no stretching, no deformation, no compression;
☞Adopting FPGA chip, real-time data processing, no delay.
Application Scenarios
Mainly used in the following scenarios: 1. Multi-screen liquid crystal display showroom exhibition 2. Video projector showroom exhibition 3.Monitoring or command center 4.Multimedia video teaching 5.Engineering conference room 6.Digital medical display, etc.
☞Support 2 in 9 out, can be combined with any splicing mode within 9 screens;
☞Fixed EDID design, support customized input resolution;
☞Support 1xN, Nx1, NxN, point to point, no stretching, no deformation, no compression;
☞Adopting FPGA chip, real-time data processing, no delay.
Application Scenarios
Mainly used in the following scenarios: 1. Multi-screen liquid crystal display showroom exhibition 2. Video projector showroom exhibition 3.Monitoring or command center 4.Multimedia video teaching 5.Engineering conference room 6.Digital medical display, etc.
| Product name | BIT-MSE-209Pro | |
| Input | Input interface | 2-way HDMI 2.0/DP 1.2(choose one of two) |
| HDCP features | HDCP 2.2 is supported | |
| Transmission distance | ≤5 meters | |
| Enter the highest pixel clock | 600MHz | |
| Input single-port resolution | 3840x2160@60Hz/3840x2400@60Hz 5760x3240@30Hz/7680x2160@30Hz (4Kx2K@60Hz Resolution within bandwidth) |
|
| Input color format | RGB888,24bit | |
| Output | Output port | 9-way HDMI 1.3 |
| Transmission distance | ≤15 meters | |
| Output the highest pixel clock |
165M | |
| Output single mouth resolution |
1920x1080@60Hz 1920x1200@60Hz (customizable) |
|
| Output color format | RGB888,24bit | |
| Audio | Audio output | HDMI output,3.5mm audio port (audio separation |
| Specifi cations |
Power supply | DC 12V/2A |
| Maximum power consumption |
22W | |
| Storage/working temperature |
-10 to 50°C/0 to 50°C | |
| Product dimensions | Length 300mm*width 142mm*height 35mm | |
| Package weight (net weight of equipment) |
1.8 KG | |
| List of accessories | 12V/2A power supply *1,HDMI/DP cable *2, certificate*1,warranty card*1 |
|
| Others | After sales service | 3 years warranty |
