Highlight:

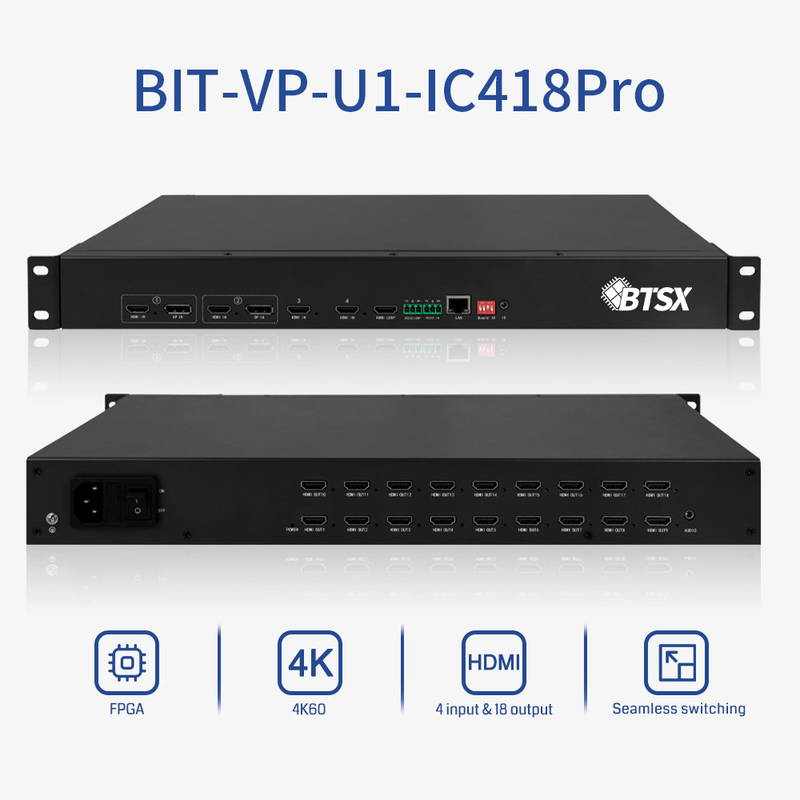

HDMI Video Wall Processor 4k
, IR Control Video Wall Processor 4k
Features: |
Seamless Switching, Screen Cropping, Etc. |
Rotation Function: |
90°,180°,270° |
Audio Interface: |
Audio Follows Out,Audio Separation |
Support: |
OEM/ODM |
Product Name: |
Video Processor |
Control Method: |
IR Control, Serial Port RS232, PC Upper Computer |
Input: |
HDMI 2.0x4,DP 1.2x2 |
Output: |
HDMI 1.3x18 |
4K60 Video Processor
HDMI Matrix Switcher Multiviewer
☞Support 4-channel 4Kx2K@60 input, support EDID management, (Extended Display Identification Data, Extended Display Identification Data); ☞Support input and output rotation: input can be rotated 90°, 180°, 270°, output can be rotated 180° in the first line; ☞Support multi-window control, which can realize picture-on-picture (POP) tiling mode, picture-in-picture (PIP) overlay mode, arbitrary picture overlay, roaming, cross-screen, zoom etc;
☞Support signal cropping function, can remove the black edge of the input signal, local amplification of the signal; ☞Support seamless real-time signal switching, no black screen, no lagging; ☞Support image effect color, saturation and other parameters to adjust the function, to solve the front-end signal color reproduction, with screen freeze and screen mirror function, gamma mode and panel gamma mode; ☞Support IR remote control, RS232, TCP/IP, host computer software control, with keyboard shortcuts, fast operation; ☞Optional audio separation, audio with out support for HDMI OUT 1 or ALL ON or ALL OFF;
☞Support 10 preset saving function;
☞Support full-channel color depth 24bit, pixel format RGB444, high quality video image output;
☞Low power consumption and environmental protection design, internal conduction heat dissipation, support for flexible installation (optional desktop/wall mounting);
☞Can be used with our self-developed window software, can realize any open more open window function.

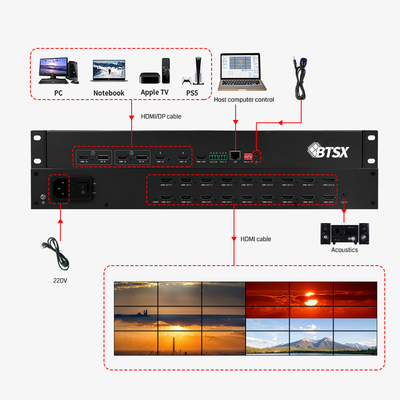

Typical application
Mainly used in ultra-high-definition video surveillance,ultra-large screen walls,large advertising screens in stores,large exhibition screens and other industry applications.
☞Contact customers
Welcome to consult the project function requirements!
company Profile
FAQ
Bitvisus FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ?
1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
