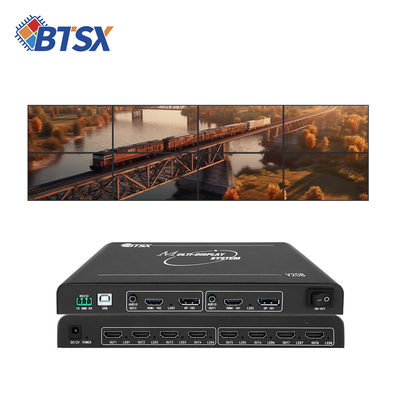

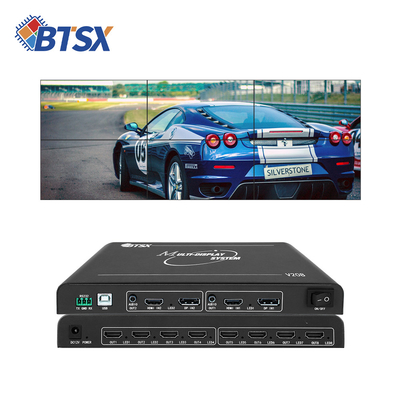

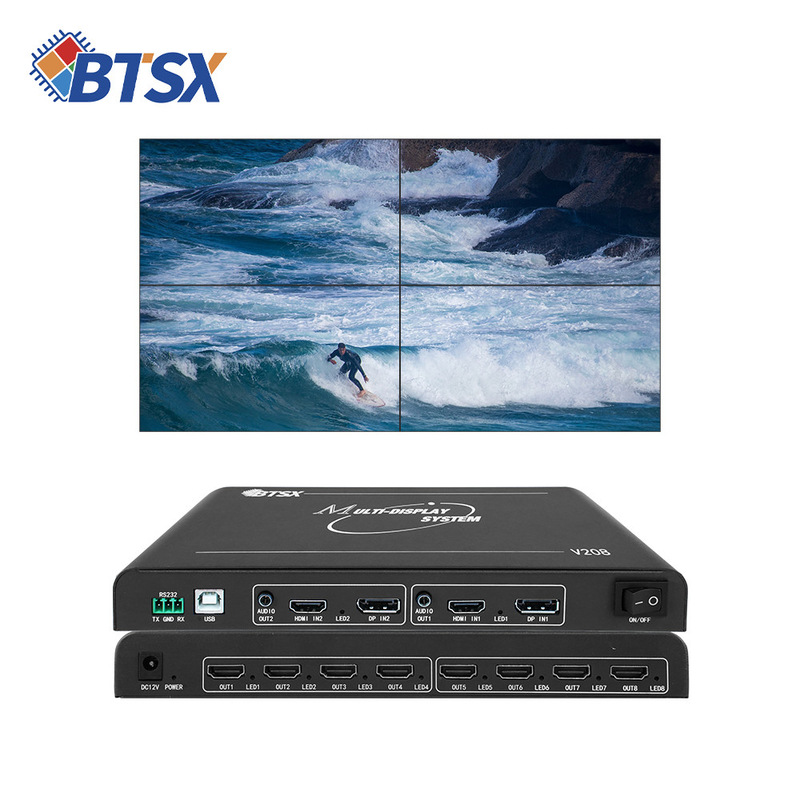

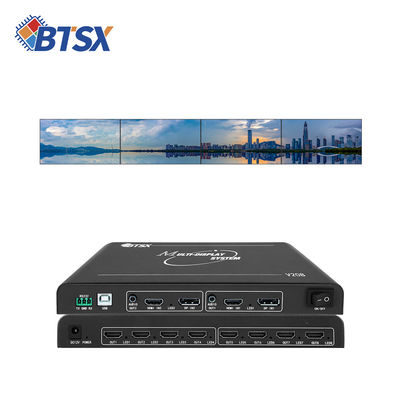

2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD

2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD
2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD
2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD 2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD 2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD 2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD 2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD

Large Image :  2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-MSE-8K-208HD
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: US $ 1054/piece
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD

Description
Place Of Origin: Guangdong, China Brand Name: Bitvisus
Model Number: BIT-MSE-8K-208HD Power: Other
Frequency Range (Hz): Other Dimension (L X W X H): 233mm*108mm*28.7mm
Highlight:

Multi Display Controller 60Hz

,

2x8 Multi Display Controller

2x8 Output and 7680*2400 60Hz Resolution BIT-MSE-8K-208HD Multi Display Controller



BIT-MSE-8K-208HD is an industrial-grade high-performance product developed specifically for the needs of multi-desktop operation and multi-channel projection fusion, with HDMI/DP input interface and HDMI output interface.



2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD 0



2x8 Outputs and 7680*2400 60Hz Resolution BIT-MSE-8K-208HD Multi-Display Controller Features



the maximum support for 2 into 8 out, can support 1x1, 1x2, 1x3, 1x4, 1x6, 1x8, 2x1, 2x2, 2x3, 2x4 horizontal screen splicing, and support large-scale parallel use.

3, its ultra-high-definition resolution supports up to 7680*2400@60Hz, output single port up to 1920x1200@60Hz.

4,Support point-to-point, no stretching, no deformation, wider field of view.

5, using 45nm process high-end programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed never delay.

6, industrial-grade design, thickened 4-layer PCB board, 16KV super anti-static ability, super product stability.

7, low power consumption, energy saving and environmental protection design, internal conduction cooling, without any external cooling measures, high reliability.

8,Support audio and video synchronization, in and out as you go.



2x8 Outputs and 7680*2400 60Hz Resolution BIT-MSE-8K-208HD Multi-Display Application Scenarios

Ultra-high resolution desktop applications, super-large screen walls, command and control systems, multi-screen video surveillance, engineering display applications, multi-channel projection, virtual reality, surround-screen theater, large-scale advertising walls, LCD/LED multi-screens, and so on.



2x8 Output Multi Display Controller 7680x2400 60Hz Resolution BIT-MSE-8K-208HD 1



2x8 Outputs and 7680*2400 60Hz Resolution BIT-MSE-8K-208HD Multi-Display Product specifications



Diethylammonium chloride BIT-MSE-8K-208HD
importation input interface 2CH HDMI 2.0/DP 1.2 (either one)
HDCP function Supports HDCP 2.2
transmission distance ≤5 meters
Input Maximum Pixel Clock 600MHz
Input single port resolution

7680x1080@60Hz/7680x1200@60Hz

(resolution within 4Kx2K@60Hz bandwidth)

Input color format RGB888, 24bit
exports output interface 8CH HDMI 1.3
transmission distance ≤15 meters
Output Maximum Pixel Clock 165M
Output single port resolution

1920x1200@60Hz

1280x800@60Hz

(backward compatible, customizable)

Output Color Format RGB888, 24bit
sound frequency audio output 3.5mm audio jack (audio split)
norm electric power source DC 12V/2A
Maximum power consumption 22W
Storage/working temperature -10 to 50ºC/0 to 50ºC
Product Size L290mm*W143mm*H22mm
Packing weight (net weight of equipment) 1.3KG
List of accessories 12V/2A Power Supply*1, HDMI/DP Cable*2, Certificate of Conformity*1, Warranty Card*1
(sth. or sb) else after-sales service Warranty 3 years
