HDMI / DP 4K Video Wall Controller For Multi Channel Projection Fusion

HDMI / DP 4K Video Wall Controller For Multi Channel Projection Fusion
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,HDMI,HDCP,RoHS,FCC
PRODUCT MODEL
BIT-MSE-4K60-Mini104 Pro
Trading Properties
MOQ
1Piece
Unit Price
Contact Us
Payment Method
T/T, PayPal
Supply Capacity
1000Piece/30day
Product Summary

4K video wall processor for multi-channel projection fusion 1. BIT-MSE-4K60-Mini104 Pro creative ultra-clear processor is an industrial-grade high-performance product specially developed to meet the needs of multi-desktop operation and multi-channel projection integration. It adopts HDMI/DP input ...

Product Details
Highlight:

DP Video Wall Controller

,

4K Video Wall Controller

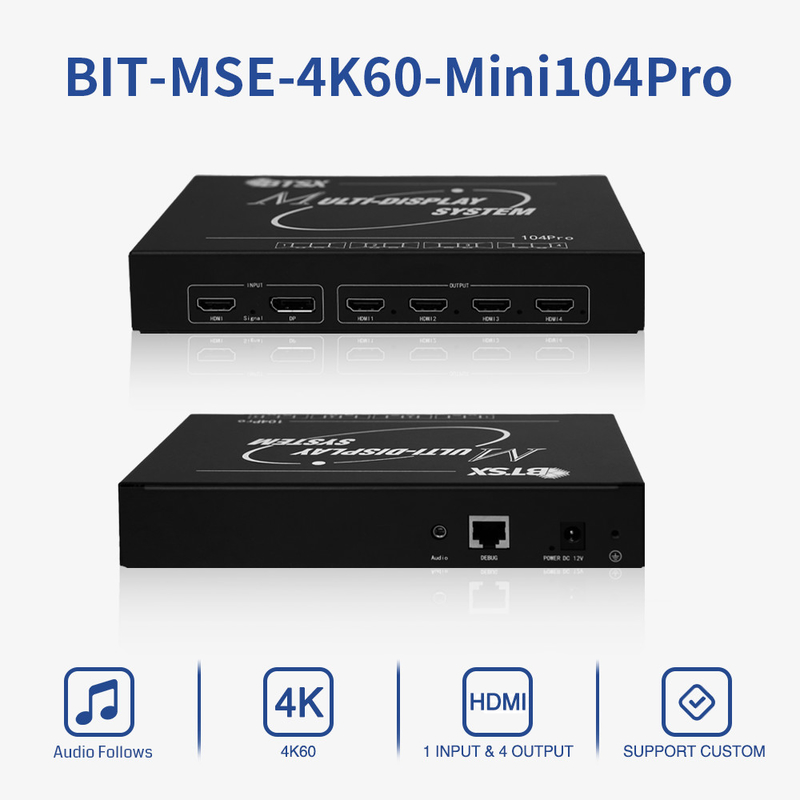

Product Name: BIT-MSE-4K60-Mini104 Pro
HDCP Function: Support HDCP2.2
Product Factory Default Resolution: 3840x2160@60Hz
2 Screens Support Typical Resolutions: 2x1920x1080@60Hz 1920x1080x2@60Hz
Warranty: Three Years
Enter Cable Length: ≤3 Meters (copper Wire)
Output Cable Length: ≤ 15 Meters (copper Wire)
Product Description

4K video wall processor for multi-channel projection fusion

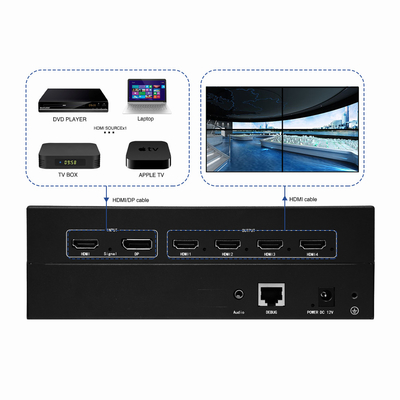

1. BIT-MSE-4K60-Mini104 Pro creative ultra-clear processor is an industrial-grade high-performance product specially developed to meet the needs of multi-desktop operation and multi-channel projection integration. It adopts HDMI/DP input interface and HDMI output.

2. Ultra-high resolution, the highest supported output resolution is 7680 x1200@60Hz/1920x 4800@ 60Hz, and is backward compatible with lower resolutions.



HDMI / DP 4K Video Wall Controller For Multi Channel Projection Fusion

4K video wall processor for multi-channel projection fusion​ Application scenarios

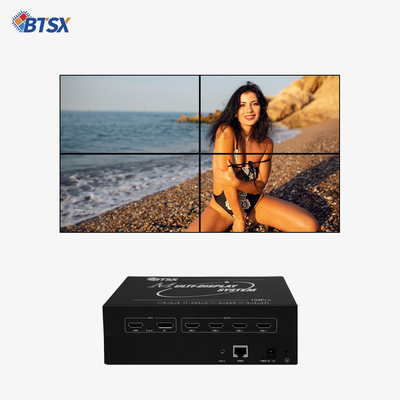

Ultra-high-resolution desktop applications, ultra-large screen walls, command and dispatch systems, multi-screen video surveillance, engineering display applications, multi-channel projection, virtual reality, surround-screen theaters, large advertising walls, LCD/LED multi-screens, etc.



HDMI / DP 4K Video Wall Controller For Multi Channel Projection Fusion

4K video wall processor for multi-channel projection fusion Product specifications



product name BIT-MSE-4K60-Mini104 Pro
Input interface maximum video pixel frequency 600MHz
Maximum video pixel frequency of output interface 300MHz
Enter interface type HDMI interface, DP interface (choose one of the two, HDMI takes priority)
HDCP function Support HDCP2.2
Output interface type

4 HDMI outputs

1 3.5mm audio output interface
audio function Support 3.5mm audio separation; HDMI audio comes out
2 screens support typical resolutions 2x1920x1080@60Hz 1920x1080x2@60Hz
3 screens support typical resolutions

3x1920x1200@60Hz 3x1920x1080@60Hz

1920x1200x3@60Hz 1920x1080x3@60Hz
4 screens support typical resolutions

4x1920x1200@60Hz 4x1920x1080@60Hz

1920x1200x4@60Hz 1920x1080x4@60Hz

2x1920x1080x2@60
Product factory default resolution 3840x2160@60Hz
2x2 maximum supported resolution 3840x2400@60Hz
3x1/1x3 maximum supported resolution 1920x3600@60Hz/5760x1200@60Hz
4x1/1x4 highest supported resolution 1920x4800@60Hz/7680x1200@60Hz
Enter cable length ≤3 meters (copper wire)
Output cable length ≤ 15 meters (copper wire)
Equipment size Length 230mm* Width 113mm* Height 28mm
Equipment net weight 0.8KG
Package Size Length 360mm* Width 215mm* Height 70mm
Package weight 1.1KG
Parts List 12V/2A power supply*1, HDMI/DP cable* 1 , certificate*1, warranty card*1
Warranty three years
