BIT-VWC-104R Multi Display Controller HDMI 2.0 Input 1920x1080 60Hz Output Energy

Name: BIT-VWC-104R Multi Display Controller HDMI 2.0 Input 1920x1080 60Hz Output Energy
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-VWC-104R
Price: 632.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-VWC-104R

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T, PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                    Multi Display Controller HDMI 2.0, Multi Display Controller 1920x1080


Pseudolaric Acid:	BIT-VWC-104R	Input Interface Type:	HDMI 2.0x1
Output Connector Type:	HDMI 1.3x4、HDMI 2.0x1（loop）	Input Single Port Support Resolution:	3840x2160@30Hz，1920x1080@60Hz
Output Single Port Support Resolution:	1920x1080@60Hz	Input Support Maximum Wire Length:	3M(HDMI Fibre Optic Cable Is Not Recommended）
Input Rotation:	90/180/270°	Sound Frequency:	SPDIF Audio Separation

Pseudolaric Acid:	BIT-VWC-104R
Input Interface Type:	HDMI 2.0x1
Output Connector Type:	HDMI 1.3x4、HDMI 2.0x1（loop）
Input Single Port Support Resolution:	3840x2160@30Hz，1920x1080@60Hz
Output Single Port Support Resolution:	1920x1080@60Hz
Input Support Maximum Wire Length:	3M(HDMI Fibre Optic Cable Is Not Recommended）
Input Rotation:	90/180/270°
Sound Frequency:	SPDIF Audio Separation

Product Description

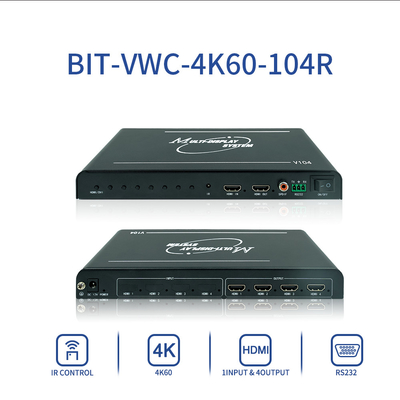

BIT-VWC-104R High-Performance Multi Display Controller HDMI 2.0 Input 1920x1080 60Hz Output Energy

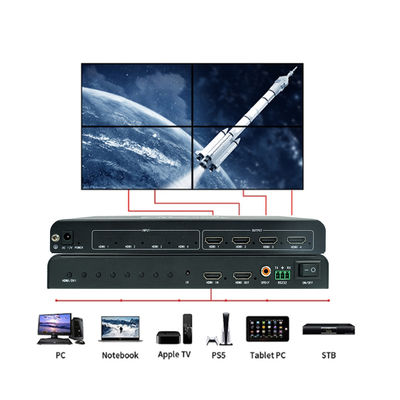

BIT-VWC-104R rotary splicer is an industrial-grade, high-performance product developed specifically for the needs of multi-desktop operation, the product has a high-definition processing chip, support for 3840x2160@30Hz/1920x1080@60Hz resolution input and 1920x1080@60Hz resolution output, using HDMI input interface, HDMI output interface. HDMI input interface, HDMI output interface. Widely used in KTV, large screen wall, engineering display applications, large advertising wall, LCD multi-screen and so on.

BIT-VWC-104R Multi Display Controller HDMI 2.0 Input 1920x1080 60Hz Output Energy 0

BIT-VWC-104R High-Performance Multi Display Controller Product characteristics

1.Input support HDMI 2.0, HDCP 2.2;
2.Ultra-high resolution, outputs up to a supported resolution of 1920x1080@60Hz;

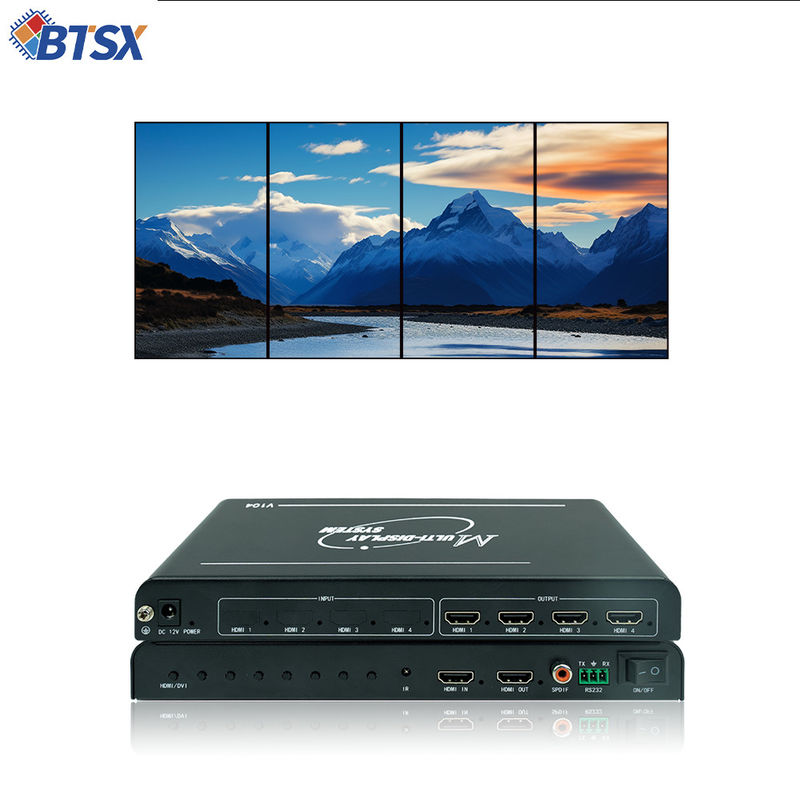

3.2x2/1x2/1x3/1x4 modes support input 90/180/270 degree rotation;

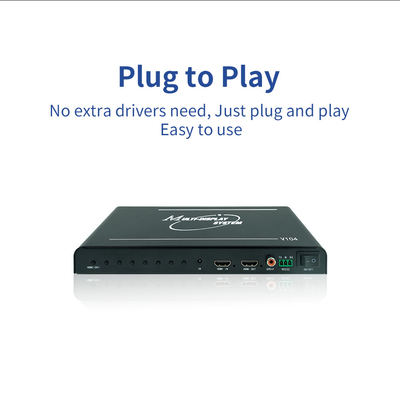

4.Pure hardware design, plug and play, no software required;
5.Low power consumption, energy saving and environmentally friendly design, internal conduction cooling, without any external cooling measures, high reliability.

BIT-VWC-104R Multi Display Controller HDMI 2.0 Input 1920x1080 60Hz Output Energy 1

BIT-VWC-104R Multi Display Controller HDMI 2.0 Input 1920x1080 60Hz Output Energy 2

BIT-VWC-104R High-Performance Multi Display Controller Product specifications

Pseudolaric acid	BIT-VWC-104R
Input Interface Type	HDMI 2.0x1
Output Connector Type	HDMI 1.3x4,HDMI 2.0x1(loop)
Maximum video pixel frequency of input interface	600MHz
Maximum video pixel frequency of output interface	165MHz
Input single port support resolution	3840x2160@30Hz,1920x1080@60Hz
Output single port support resolution	1920x1080@60Hz
Input Support Maximum Wire Length	3M(HDMI fibre optic cable is not recommended)
Maximum line length supported by output	15M
Input Rotation	90/180/270°
Sound frequency	SPDIF Audio separation
Control method	Pushbutton, Remote Control
Product Size	233x108x28.7mm
Package weight	1.2KG
List of accessories	Remote Control x1, 12V Power Supply x1, HDMI Cable x1, Certificate of Conformity x1, Warranty Card x1
Power supply	12V@2A AC-DC
Warranty	3 years
Power (output)	5.88W
