Product Details:
|
Product Name: | BIT-MSE-LT104PRO | The Max Pixel Frequency Of Input Interface: | 600MHz |
---|---|---|---|
The Max Pixel Frequency Of Output Interface: | 165MHz | 1x2 Mode,with Input Support Resolution: | Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz、2560x720@60Hz Firmware 3:2560x800@60Hz、2048x768@60Hz |
2x1 Mode,with Input Support Resolution: | Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz、1280x1440@60Hz Firmware 3:1280x1600@60Hz、1024x1536@60Hz | Input Interface Type: | HDMI2.0x1 |
Output Interface Type: | HDMI1.3 X4、HDMI2.0 X1 (loop Out) | Tare: | 1.6KG |

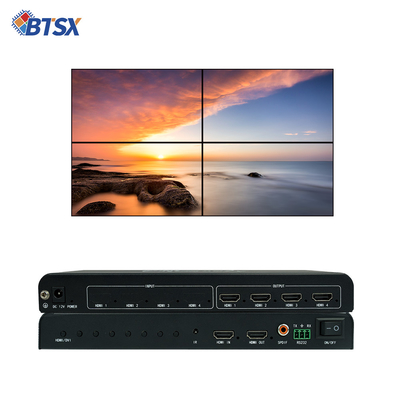

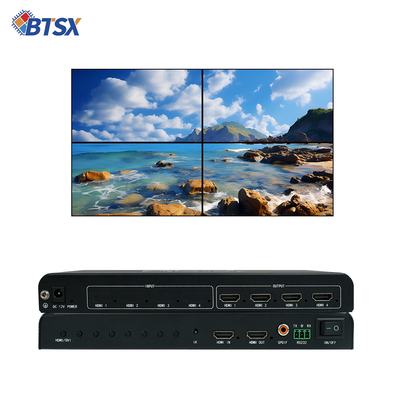

BIT-MSE-LT104PRO Creative Ultra HD processor is anindustrial-grade high-performance product specially developed formulti-desktop operation and multi-channel projection fusionrequirements
1. Input supports HDMI 2.0, HDCP 2.2;
2. Ultra-high resolution, the output with the highest support resolution
4x1920x1200@60Hz/1920x1200x4@60Hz;
3. Support 1 xN, Nx 1, MxN, no stretching, no deformation, more openvision;
4. Pure hardware design, plug and play, does not require any software;
5. Low power consumption, energy saving and environmental
protection design, internal conduction and heat dissipation, without
any external heat dissipation measures

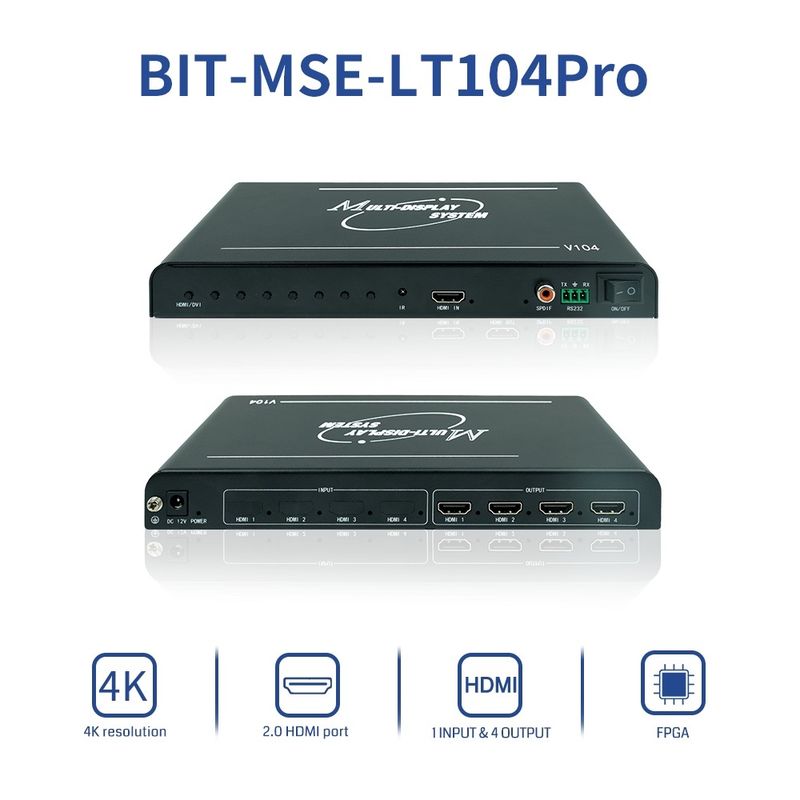

product name | BIT-MSE-LT104PRO |
The max pixel frequency of input interface |
600MHz |
The max pixel frequency of output interface |
165MHz |
1x2 mode,with input support resolution |
Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz,2560x720@60Hz Firmware 3:2560x800@60Hz,2048x768@60Hz |
2x1 mode,with input support resolution |
Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz,1280x1440@60Hz Firmware 3:1280x1600@60Hz,1024x1536@60Hz |
1x3 mode,with input support resolution |
Firmware 1:5760x1200@60Hz Firmware 2:5760x1080@60Hz,3840x720@60Hz Firmware 3:3840x800@60Hz,3072x768@60Hz |
3x1 mode,with input support resolution |
Firmware 1:1920x3600@60Hz Firmware 2:1920x3240@60Hz,1280x2160@60Hz Firmware 3:1280x2400@60Hz,1024x2304@60Hz |
1x4 mode,with input support resolution |
Firmware 1:7680x1200@60Hz Firmware 2:7680x1080@60Hz,5120x720@60Hz |
Firmware 3:5120x800@60Hz,4096x768@60Hz | |
4x1 mode,with input support resolution |
Firmware 1:1920x4800@60Hz Firmware 2:1920x4320@60Hz,1280x2880@60Hz Firmware 3:1280x3200@60Hz,1024x3072@60Hz |
2x2 mode,with input support resolution |
Firmware 1:3840x2400@60Hz,3840x2400@30Hz Firmware 2:3840x2160@60Hz,3840x2160@30Hz, 2560x1440@60Hz Firmware 3:2560x1600@60Hz,2048x1536@60Hz |
The output supports the resolution (In 3 firmware versions) |
Firmware 1:1920x1200@60Hz Firmware 2:1920x1080@60Hz,1280x720@60Hz Firmware 3:1280x800@60Hz,1024x768@60Hz (See the attachment for the firmware description) |
Input interface type | HDMI2.0x1 |
Output interface type | HDMI1.3 x4,HDMI2.0 x1 (loop out) |
Output mode | DVI/HDMI(Keys switch) |
audio frequency | Support HDMI audio with out or SPDIF audio separation |
the maximum line length of input | 3M(The HDMI fiber cable is not recommended) |
The output supports the maximum line length distance |
15M |
product size | 233x108x28.7mm |
tare | 1.6KG |
List of accessories | 12V power supply x1,HDMI cable x1 |
power | 5.88W |
Quality Assurance | Three years |
