Large Screen Multi Screen Controller HDMI high performance BIT-MSE-LT104PRO

Name: Large Screen Multi Screen Controller HDMI high performance BIT-MSE-LT104PRO
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-LT104PRO
Price: 632.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-MSE-LT104PRO

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T, PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Multi Screen Controller HDMI, OEM Multi Screen Controller


Product Name:	BIT-MSE-LT104PRO	Output Interface Type:	HDMI1.3 X4、HDMI2.0 X1 (loop Out)
Input Interface Type:	HDMI2.0x1	The Max Pixel Frequency Of Input Interface:	600MHz
The Max Pixel Frequency Of Output Interface:	165MHz	List Of Accessories:	12V Power Supply X1、HDMI Cable X1
1x2 Mode,with Input Support Resolution:	Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz、2560x720@60Hz Firmware 3:2560x800@60Hz、2048x768@60Hz	2x1 Mode,with Input Support Resolution:	Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz、1280x1440@60Hz Firmware 3:1280x1600@60Hz、1024x1536@60Hz

Product Name:	BIT-MSE-LT104PRO
Output Interface Type:	HDMI1.3 X4、HDMI2.0 X1 (loop Out)
Input Interface Type:	HDMI2.0x1
The Max Pixel Frequency Of Input Interface:	600MHz
The Max Pixel Frequency Of Output Interface:	165MHz
List Of Accessories:	12V Power Supply X1、HDMI Cable X1
1x2 Mode,with Input Support Resolution:	Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz、2560x720@60Hz Firmware 3:2560x800@60Hz、2048x768@60Hz
2x1 Mode,with Input Support Resolution:	Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz、1280x1440@60Hz Firmware 3:1280x1600@60Hz、1024x1536@60Hz

Product Description

And Versatile BIT-MSE-LT104PRO Multi Display Controller for Multi-Screen and Large Screen Wall Display

BIT-MSE-LT104PRO Creative Ultra HD processor is anindustrial-grade high-performance product specially developed formulti-desktop operation and multi-channel projection fusionrequirements.

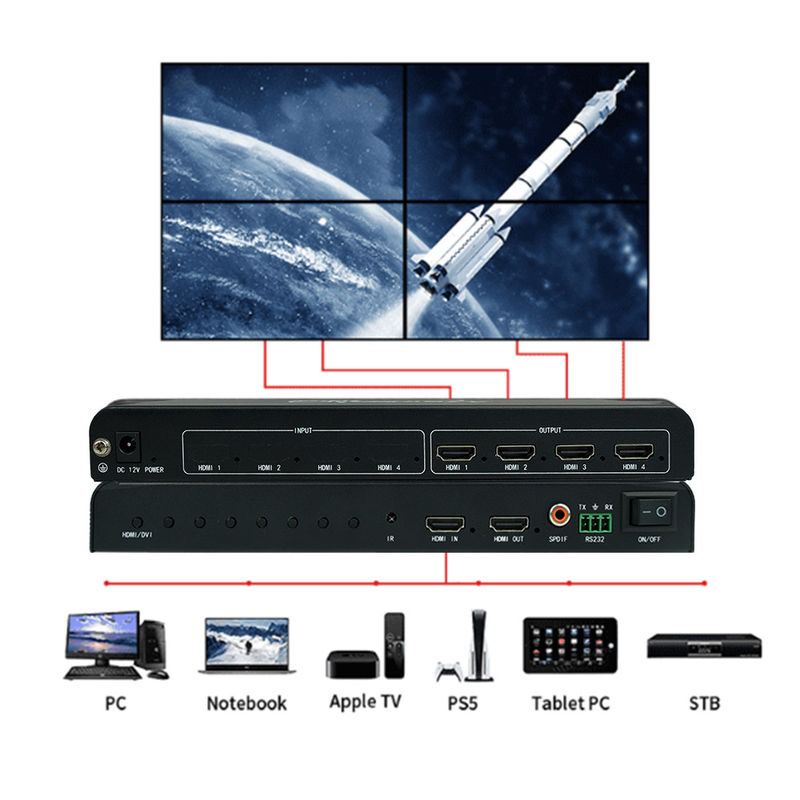

Large Screen Multi Screen Controller HDMI high performance BIT-MSE-LT104PRO 0

Multi-function BIT-MSE-LT104PRO Multi-Display Controller Features

1. Input supports HDMI 2.0, HDCP 2.2;
2. Ultra-high resolution, the output with the highest support resolution
4x1920x1200@60Hz/1920x1200x4@60Hz;
3. Support 1 xN, Nx 1, MxN, no stretching, no deformation, more openvision;
4. Pure hardware design, plug and play, does not require any software;
5. Low power consumption, energy saving and environmental
protection design, internal conduction and heat dissipation, without
any external heat dissipation measures

Large Screen Multi Screen Controller HDMI high performance BIT-MSE-LT104PRO 1

Multifunction BIT-MSE-LT104PRO Multi-Display Controller Applications

Suitable for resolution desktop applications, large screen walls, engineering display applications, large advertising walls, LCD multi-screens, and so on.

Large Screen Multi Screen Controller HDMI high performance BIT-MSE-LT104PRO 2

Parameters of Multi-function BIT-MSE-LT104PRO Multi-display Controller

product name	BIT-MSE-LT104PRO
The max pixel frequency of input interface	600MHz
The max pixel frequency of output interface	165MHz
1x2 mode,with input support resolution	Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz,2560x720@60Hz Firmware 3:2560x800@60Hz,2048x768@60Hz
2x1 mode,with input support resolution	Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz,1280x1440@60Hz Firmware 3:1280x1600@60Hz,1024x1536@60Hz
1x3 mode,with input support resolution	Firmware 1:5760x1200@60Hz Firmware 2:5760x1080@60Hz,3840x720@60Hz Firmware 3:3840x800@60Hz,3072x768@60Hz
3x1 mode,with input support resolution	Firmware 1:1920x3600@60Hz Firmware 2:1920x3240@60Hz,1280x2160@60Hz Firmware 3:1280x2400@60Hz,1024x2304@60Hz
1x4 mode,with input support resolution	Firmware 1:7680x1200@60Hz Firmware 2:7680x1080@60Hz,5120x720@60Hz
	Firmware 3:5120x800@60Hz,4096x768@60Hz
4x1 mode,with input support resolution	Firmware 1:1920x4800@60Hz Firmware 2:1920x4320@60Hz,1280x2880@60Hz Firmware 3:1280x3200@60Hz,1024x3072@60Hz
2x2 mode,with input support resolution	Firmware 1:3840x2400@60Hz,3840x2400@30Hz Firmware 2:3840x2160@60Hz,3840x2160@30Hz, 2560x1440@60Hz Firmware 3:2560x1600@60Hz,2048x1536@60Hz
The output supports the resolution (In 3 firmware versions)	Firmware 1:1920x1200@60Hz Firmware 2:1920x1080@60Hz,1280x720@60Hz Firmware 3:1280x800@60Hz,1024x768@60Hz (See the attachment for the firmware description)
Input interface type	HDMI2.0x1
Output interface type	HDMI1.3 x4,HDMI2.0 x1 (loop out)
Output mode	DVI/HDMI(Keys switch)
audio frequency	Support HDMI audio with out or SPDIF audio separation
the maximum line length of input	3M(The HDMI fiber cable is not recommended)
The output supports the maximum line length distance	15M
product size	233x108x28.7mm
tare	1.6KG
List of accessories	12V power supply x1,HDMI cable x1
power	5.88W
Quality Assurance	Three years
