Highlight:

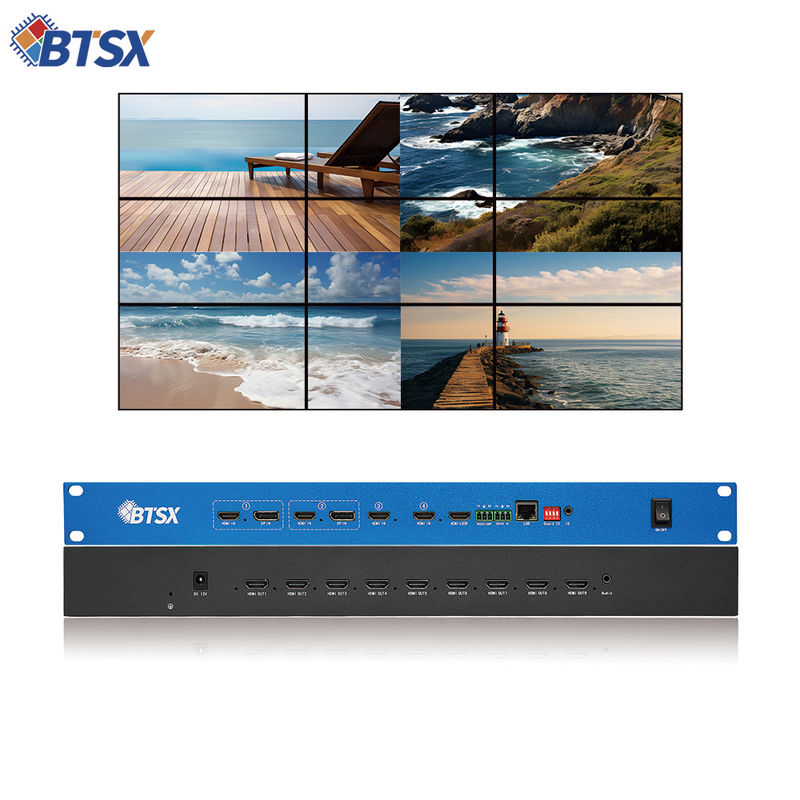

4K60 Video Wall Controller Processor
, Video Wall Controller Processor PIP
Cover Material: |
Aluminum(Blue); Iron(Black) |
Inputs Interface: |
4 X HDMI 2.0, 2 X DP 1.2 |
HDCP: |
2.2 |
Input Pixel Clock Rate: |
600MHz |
Output Pixel Clock Rate: |
165MHz |
Outputs Interface: |
HDMI 1.3x9 (≤15m),HDMI 2.0x1( Loop Out) |
Audio Output: |
3.5mm Audio Port + HDMI Audio Out |
Operating Temperature: |
-10～50ºC/0～80ºC |
Power Consumption: |
30W |
Power Supply: |
DC 12V/5A |
Control Method: |
Remote Control, Serial Port RS232, PC Software |
Size: |
LxWxH: 437mmx177mmx45mm |
Net Weight: |
2.2KG (Iron), 1.5KG (Aluminium) |
Colour Format: |
RGB444, YUV444,YUV422,YUV420 |
4K60 4in 9 Out Video Wall Controller/Processor seamless switch,PIP, Roaming,Overlay,Zooming
|
Max output resolution each screen
|
1920x1080@60Hz/1920x1200@60Hz |
|
Control method
|
Remote control, RS232, TCP/IP control methods |
| Functions |
PIP, POP, overlay mode, arbitrary picture overlay, roaming, cross-screen, zoom, etc |
|
Accessories list
|
12V/5A power supply x1, IR receiver head x1,
remote control x1, certificate of conformity x1, warranty card x1, network cable x1, HDMI or DP cable x1, USB to RS232 serial cable (optional)
|
|
After-sales warranty
|
1 Year.
(return for repair, shipping cost and tax should be borne by buyer)
|
Supports multi-window control, which can easily realize various functions
such as picture-outside-picture (POP) tile mode, picture-in-picture (PIP)
overlay mode, arbitrary picture overlay, roaming, cross-screen, zoom, etc.
Supports signal cropping function, which can remove black edges and crop
the input signal, making the control methods of the picture more diverse. It
can perfectly solve the black edge problem caused by the front-end signal,
or partially amplify the signal.
Supports 16 splicing modes such as horizontal screen 1x1...1x9; vertical
screen 9x1...1x1; field type: 2x2, 2x3, 3x3, 2x4, 4x2...etc.
Supports 4 channels of 4K*2K@60 input, each input port burns different
resolutions, and supports EDID management, reading, modification and
customization of EDID (Extended Display Identification Data, Extended
Display Identification Data), which improves the The compatibility of the
display device enables the device output signal to adapt to various
applications.
Support input and output rotation: input can be rotated 90°, 180°, 270°, and
the first line of output can be rotated 180°.
Audio separation can be selected, audio output supports HDMI OUT 1 or ALL ON
or ALL OFF
Supports functions such as hot swapping, power-off memory, host computer
readback, plan saving (1), etc.
