Product Details:
|
HDMI Compatible _: | HDMI 2.0b _ | HDC P Compatible: | HDCP 2.2 / HDCP 1.4 |
---|---|---|---|
Video Bandwidth: | 1 8Gbps | Color Space: | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
L / R Audio Format: | PCM 2.0 | Static Protection: | Human Body Model: ±8kV (air Discharge), ±4kV (contact Discharge) |
Shell: | Metal Case | The Color: | Black |
Weight: | Transmitter : 160g, Receiver: 155g | Power Consumption: | 9.3 6 Watts |
Highlight: | HDMI Fiber Extender 150m,HDCP 1.4 HDMI Fiber Extender,HDCP 2.2 HDMI Extender 150m |

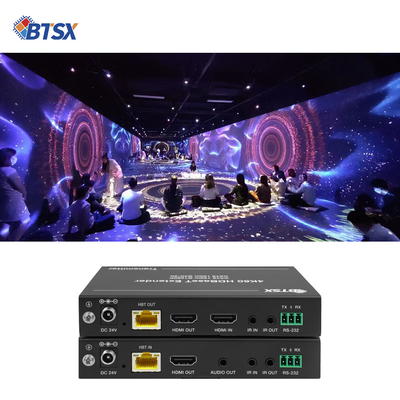

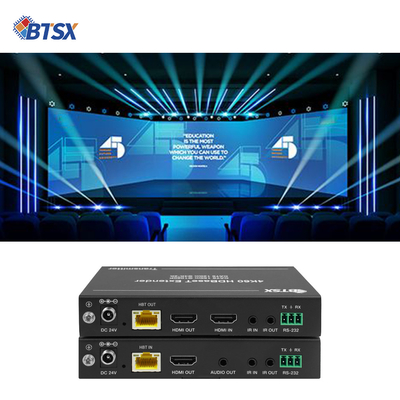

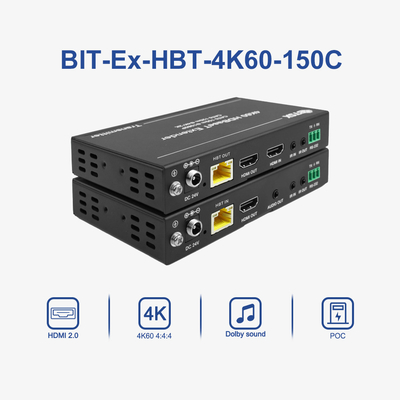

This HDMI 150m extender (HDBaseT) can extend high-definition audio and video signals, RS-232 signals and bi-directional IR signals up to 150 meters between the transmitter and receiver through a single CAT cable. The video resolution supports up to 4K2K@60Hz 4:4:4. Support 1 HDMI loop output. The receiver can de-embed the audio from the source device to the analog audio output port AUDIO OUT. This product supports PoC function. In addition, this extender supports two-way infrared signal control, that is, users can control it through IR at the source or display end.
Compatible with HDMI 2.0b, HDCP 2.2/HDCP 1.4 and DVI 1.0
Support 18Gbps bandwidth
The input and output extension distance can reach 120 meters / 150 meters, and the supported resolution can reach 4K2K / 1080P
Support 1 HDMI loop output (transmitter)
Supports de-embedding source device audio to analog stereo output (receiving side)
With bi-directional IR, RS-232 and CEC pass-through
Supports HDR, HDR 10+, Dolby Vision and HLG functions
Support PoC (Power over Cable) function

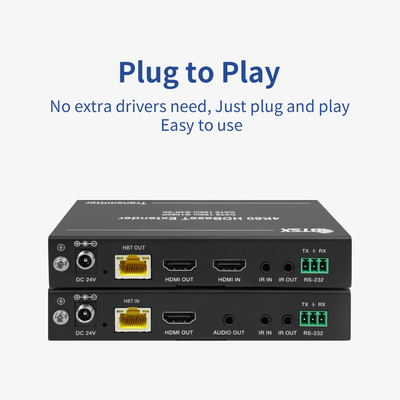

Reasonable design, easy to install
parameter specification | |
HDMI compatible _ | HDMI 2.0b _ |
HDC P Compatible | HDCP 2.2 / HDCP 1.4 |
video bandwidth | 1 8Gbps |
video resolution |
4K 2K 50 /60Hz 4:4:4 4K 2K 50 /60Hz 4:2:2 4K 2K 50/60Hz 4: 2 :0 4K 2K 30Hz 4:4 : 4 1080p , 1080i , 720p , 720i , 480p, 480i All 3D TV formats All computer resolutions, including 1920x1200 |
color space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
color depth |
8 /10/12- bit ( 1080P 60 Hz , 4K 30 Hz , 4K 60 Hz YCbCr 4 :2:2/4:2:0) 8- bit ( 4K 60Hz 4 :4:4) |
HDMI audio format |
LPCM 2.0/2.1 /5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus ( DD + ), DTS - ES , DTS HD Master , DTS HD - HRA , DTS - X |
L / R audio format | PCM 2.0 |
Static protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) |
connect | |
launcher _ |
Input : 1 x HDMI IN [ Type A , 19- pin female] 1 × SERVICE [ Mini - USB , upgrade port] Output : 1 x HDMI OUT [ Type A , 19- pin female] 1 × HDBT OUT [ RJ 45, 8- pin female] Control: 1 x IR IN [3.5 mm Stereo Mini - jack ] 1 x IR OUT [3.5 mm Stereo Mini - jack ] 1 × RS -232 [3- pin Phoenix terminal] |
receiver _ |
Input : 1 x HDBT IN [ RJ 45, 8- pin female] 1 × SERVICE [ Mini - USB , upgrade port] Output : 1 x HDMI OUT [ Type A , 19- pin female] 1 × AUDIO OUT [3.5 mm Stereo Mini - jack ] Control: 1 x IR IN [3.5 mm Stereo Mini - jack ] 1 x IR OUT [3.5 mm Stereo Mini - jack ] 1 × RS -232 [3- pin Phoenix terminal] |
fuselage | |||
shell | metal case | ||
the color | black | ||
size |
Transmitter /Receiver: 1 40 mm [L] x 65 mm [W] x 18 mm [H] |
||
weight | Transmitter : 160g, Receiver: 155g | ||
power supply |
Input: AC 100~240V 50/60Hz Output : DC 24 V /1 A (with locking terminal) |
||
power consumption | 9.3 6 watts | ||
operating temperature | 0° C ~ 40°C / 32°F ~ 104°F | ||
storage temperature | -20° C ~ 60 °C / -4°F ~ 140°F | ||
relative humidity | 20~90% RH (no condensation) | ||
Resolution/ Distance | |||
4 K2K | 1 20 meters | ||
1 080P | 1 50 meters | ||
Resolution/ Line Length | 4K 60 - meter | 4K 30 - meter | 1 080 P 60 - m |
hdmi IN /OUT | 3 meters | 10 meters | 15 meters |
I cable is recommended . |
