Product Details:
|
HDMI Compatible _: | HDMI 2.0b _ | HDC P Compatible: | HDCP 2.2 / HDCP 1.4 |
---|---|---|---|
Video Bandwidth: | 1 8Gbps | L / R Audio Format: | PCM 2.0 |
Static Protection: | Human Body Model: ±8kV (air Discharge), ±4kV (contact Discharge) | Color Space: | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
Video Resolution: | 4K 2K 50 /60Hz 4:4:4 4K 2K 50 /60Hz 4:2:2 4K 2K 50/60Hz 4: 2 :0 4K 2K 30Hz 4:4 : 4 1080p , 1080i , 720p , 720i , 480p, 480i All 3D TV Formats All Computer Resolutions, Including 1920x1200 | HDMI Audio Format: | LPCM 2.0/2.1 /5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus ( DD + ), DTS - ES , DTS HD Master , DTS HD - HRA , DTS - X |
Highlight: | HDBaseT HDMI Fiber Extender,AV System HDMI Fiber Extender,HDBaseT HDMI Extender 150m |

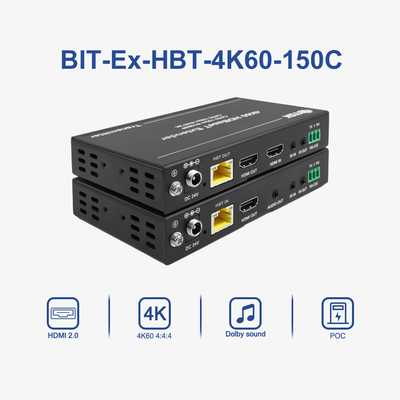

Introducing our comprehensive HDMI 150m extender (HDBaseT) system, comprising a transmitter and receiver pair, designed to seamlessly extend your high-definition audio and video signals, along with RS-232 and bi-directional IR signals, over a staggering 150 meters using a single CAT cable. Experience unparalleled clarity with support for 4K2K@60Hz 4:4:4 video resolution, ensuring a crisp and immersive viewing experience. This innovative solution also boasts an HDMI loop output for added convenience and the capability to de-embed audio from the source device directly to the analog AUDIO OUT port, enhancing audio versatility. Furthermore, powered by PoC functionality and enabling two-way infrared signal control, users can effortlessly manage the system from either the source or display end, maximizing control flexibility. Say goodbye to signal limitations and embrace the ultimate in HDMI extension technology with our CAT cable-based solution.
Compatible with HDMI 2.0b, HDCP 2.2/HDCP 1.4 and DVI 1.0
Support 18Gbps bandwidth
The input and output extension distance can reach 120 meters / 150 meters, and the supported resolution can reach 4K2K / 1080P
Support 1 HDMI loop output (transmitter)
Supports de-embedding source device audio to analog stereo output (receiving side)
With bi-directional IR, RS-232 and CEC pass-through
Supports HDR, HDR 10+, Dolby Vision and HLG functions
Support PoC (Power over Cable) function
Reasonable design, easy to install
parameter specification | |
HDMI compatible _ | HDMI 2.0b _ |
HDC P Compatible | HDCP 2.2 / HDCP 1.4 |
video bandwidth | 1 8Gbps |
video resolution |
4K 2K 50 /60Hz 4:4:4 4K 2K 50 /60Hz 4:2:2 4K 2K 50/60Hz 4: 2 :0 4K 2K 30Hz 4:4 : 4 1080p , 1080i , 720p , 720i , 480p, 480i All 3D TV formats All computer resolutions, including 1920x1200 |
color space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
color depth |
8 /10/12- bit ( 1080P 60 Hz , 4K 30 Hz , 4K 60 Hz YCbCr 4 :2:2/4:2:0) 8- bit ( 4K 60Hz 4 :4:4) |
HDMI audio format |
LPCM 2.0/2.1 /5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus ( DD + ), DTS - ES , DTS HD Master , DTS HD - HRA , DTS - X |
L / R audio format | PCM 2.0 |
Static protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) |
connect | |
launcher _ |

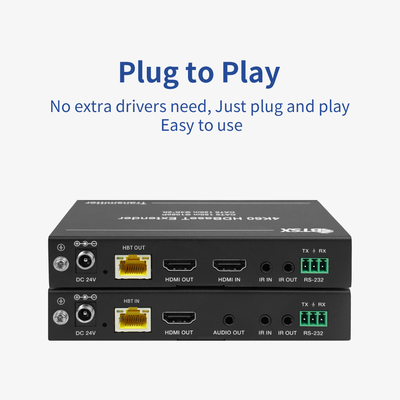

Input : 1 x HDMI IN [ Type A , 19- pin female] 1 × SERVICE [ Mini - USB , upgrade port] Output : 1 x HDMI OUT [ Type A , 19- pin female] 1 × HDBT OUT [ RJ 45, 8- pin female] Control: 1 x IR IN [3.5 mm Stereo Mini - jack ] 1 x IR OUT [3.5 mm Stereo Mini - jack ] 1 × RS -232 [3- pin Phoenix terminal] |
receiver _ |
Input : 1 x HDBT IN [ RJ 45, 8- pin female] 1 × SERVICE [ Mini - USB , upgrade port] Output : 1 x HDMI OUT [ Type A , 19- pin female] 1 × AUDIO OUT [3.5 mm Stereo Mini - jack ] Control: 1 x IR IN [3.5 mm Stereo Mini - jack ] 1 x IR OUT [3.5 mm Stereo Mini - jack ] 1 × RS -232 [3- pin Phoenix terminal] |
fuselage | |||
shell | metal case | ||
the color | black | ||
size |
Transmitter /Receiver: 1 40 mm [L] x 65 mm [W] x 18 mm [H] |
||
weight | Transmitter : 160g, Receiver: 155g | ||
power supply |
Input: AC 100~240V 50/60Hz Output : DC 24 V /1 A (with locking terminal) |
||
power consumption | 9.3 6 watts | ||
operating temperature | 0° C ~ 40°C / 32°F ~ 104°F | ||
storage temperature | -20° C ~ 60 °C / -4°F ~ 140°F | ||
relative humidity | 20~90% RH (no condensation) | ||
Resolution/ Distance | |||
4 K2K | 1 20 meters | ||
1 080P | 1 50 meters | ||
Resolution/ Line Length | 4K 60 - meter | 4K 30 - meter | 1 080 P 60 - m |
hdmi IN /OUT | 3 meters | 10 meters | 15 meters |
I cable is recommended . |
