Product Details:
|
HDC P Compatible: | HDCP 2.2 / HDCP 1.4 | HDMI Compatible _: | HDMI 2.0b _ |
---|---|---|---|
Video Bandwidth: | 1 8Gbps | L / R Audio Format: | PCM 2.0 |
Shell: | Metal Case | The Color: | Black |
Static Protection: | Human Body Model: ±8kV (air Discharge), ±4kV (contact Discharge) | Color Space: | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
Video Resolution: | 4K 2K 50 /60Hz 4:4:4 4K 2K 50 /60Hz 4:2:2 4K 2K 50/60Hz 4: 2 :0 4K 2K 30Hz 4:4 : 4 1080p , 1080i , 720p , 720i , 480p, 480i All 3D TV Formats All Computer Resolutions, Including 1920x1200 | HDMI Audio Format: | LPCM 2.0/2.1 /5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus ( DD + ), DTS - ES , DTS HD Master , DTS HD - HRA , DTS - X |
Highlight: | 150m HDMI Fiber Extender,Audio HDMI Fiber Extender,CE 150m HDMI Extender |

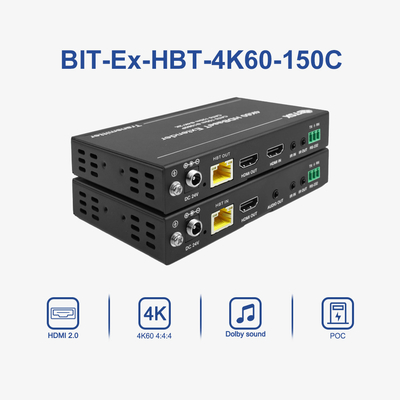

Introducing our comprehensive HDMI 150m extender system featuring HDBaseT technology, which seamlessly stretches high-definition audio and video signals, including 4K2K@60Hz 4:4:4 resolutions, along with RS-232 and bi-directional IR control signals up to an impressive 150 meters, all through a single CAT cable. Equipped with a transmitter and receiver, our solution is designed for effortless integration. The transmitter captures HDMI signals and facilitates IR control signals transmission, while the receiver receives these signals and enables audio de-embedding to analog output ports for flexibility. The added benefit of Power over Cable (PoC) function and two-way IR control enhances user experience, allowing remote operation from either the source or display end. This HDMI extender is the ultimate convenience tool for extending HDMI connections, offering the most streamlined and efficient solution for any professional or home AV setup.
Compatible with HDMI 2.0b, HDCP 2.2/HDCP 1.4 and DVI 1.0
Support 18Gbps bandwidth
The input and output extension distance can reach 120 meters / 150 meters, and the supported resolution can reach 4K2K / 1080P
Support 1 HDMI loop output (transmitter)
Supports de-embedding source device audio to analog stereo output (receiving side)
With bi-directional IR, RS-232 and CEC pass-through
Supports HDR, HDR 10+, Dolby Vision and HLG functions
Support PoC (Power over Cable) function
Reasonable design, easy to install
parameter specification | |
HDMI compatible _ | HDMI 2.0b _ |
HDC P Compatible | HDCP 2.2 / HDCP 1.4 |
video bandwidth | 1 8Gbps |
video resolution |
4K 2K 50 /60Hz 4:4:4 4K 2K 50 /60Hz 4:2:2 4K 2K 50/60Hz 4: 2 :0 4K 2K 30Hz 4:4 : 4 1080p , 1080i , 720p , 720i , 480p, 480i All 3D TV formats All computer resolutions, including 1920x1200 |
color space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
color depth |
8 /10/12- bit ( 1080P 60 Hz , 4K 30 Hz , 4K 60 Hz YCbCr 4 :2:2/4:2:0) 8- bit ( 4K 60Hz 4 :4:4) |
HDMI audio format |
LPCM 2.0/2.1 /5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus ( DD + ), DTS - ES , DTS HD Master , DTS HD - HRA , DTS - X |
L / R audio format | PCM 2.0 |
Static protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) |
connect | |
launcher _ |

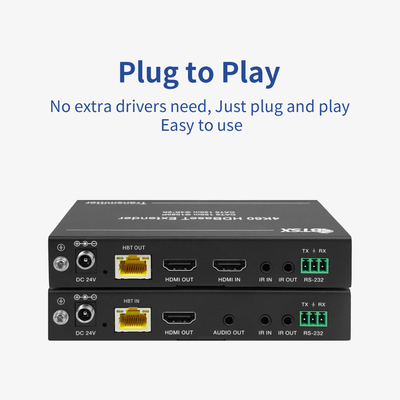

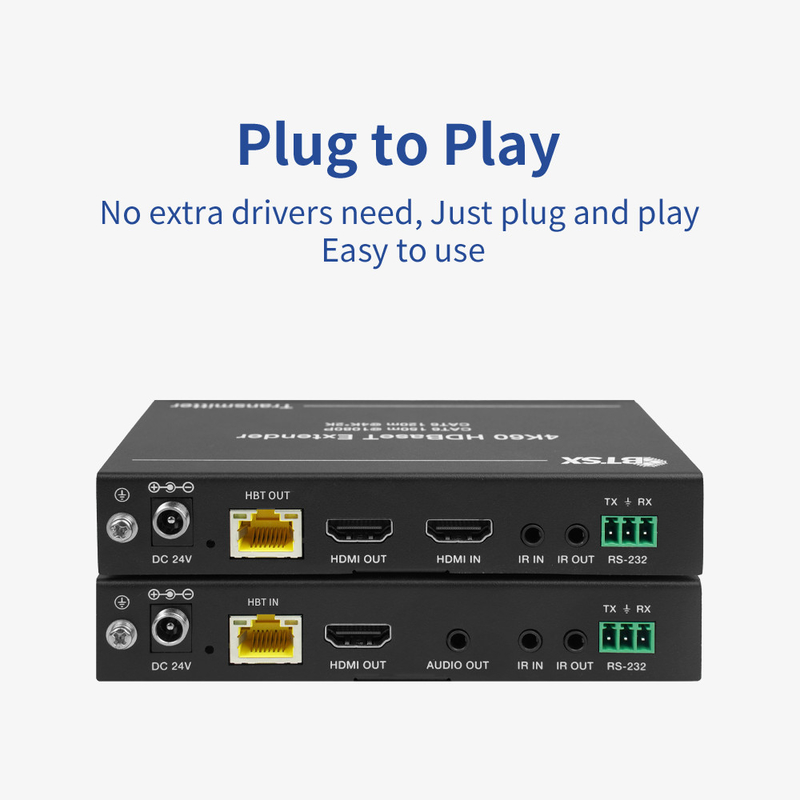

Input : 1 x HDMI IN [ Type A , 19- pin female] 1 × SERVICE [ Mini - USB , upgrade port] Output : 1 x HDMI OUT [ Type A , 19- pin female] 1 × HDBT OUT [ RJ 45, 8- pin female] Control: 1 x IR IN [3.5 mm Stereo Mini - jack ] 1 x IR OUT [3.5 mm Stereo Mini - jack ] 1 × RS -232 [3- pin Phoenix terminal] |
receiver _ |
Input : 1 x HDBT IN [ RJ 45, 8- pin female] 1 × SERVICE [ Mini - USB , upgrade port] Output : 1 x HDMI OUT [ Type A , 19- pin female] 1 × AUDIO OUT [3.5 mm Stereo Mini - jack ] Control: 1 x IR IN [3.5 mm Stereo Mini - jack ] 1 x IR OUT [3.5 mm Stereo Mini - jack ] 1 × RS -232 [3- pin Phoenix terminal] |
fuselage | |||
shell | metal case | ||
the color | black | ||
size |
Transmitter /Receiver: 1 40 mm [L] x 65 mm [W] x 18 mm [H] |
||
weight | Transmitter : 160g, Receiver: 155g | ||
power supply |
Input: AC 100~240V 50/60Hz Output : DC 24 V /1 A (with locking terminal) |
||
power consumption | 9.3 6 watts | ||
operating temperature | 0° C ~ 40°C / 32°F ~ 104°F | ||
storage temperature | -20° C ~ 60 °C / -4°F ~ 140°F | ||
relative humidity | 20~90% RH (no condensation) | ||
Resolution/ Distance | |||
4 K2K | 1 20 meters | ||
1 080P | 1 50 meters | ||
Resolution/ Line Length | 4K 60 - meter | 4K 30 - meter | 1 080 P 60 - m |
hdmi IN /OUT | 3 meters | 10 meters | 15 meters |
I cable is recommended . |
