4 in 4 out KVM Seamless Switch Video Wall Controller 4K60 Video Wall Processor
4 in 4 out KVM Seamless Switch Video Wall Controller 4K60 Video Wall Processor
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,FCC,ROHS
PRODUCT MODEL
BIT-VWC-U1-MD404Ma
Trading Properties
MOQ
1pc
Unit Price
Contact Us by mail: mango@bitvisus.com , or whatsapp: +86 18682365831
Payment Method
T/T,Paypal,Alipay etc...
Supply Capacity
50000
Product Summary
Max output resolution each screen 3840×2160@60Hz Control method Button, Remote control, RS232, Web control via PC, TCP/IP control methods,KVM Functions PIP, POP, overlay mode, arbitrary picture overlay, roaming, cross-screen, zoom, etc Accessories list 220V power supply x1, IR receiver x1, remote ...
Product Details
Highlight:
Seamless Switch Video Wall Controller
,KVM Video Wall Controller
,4K60 Video Wall Processor
Cover Material:
Aluminum(Blue); Iron(Black)
Inputs Interface:
4 X HDMI 2.0
HDCP:
2.2
Input Pixel Clock Rate:
600MHz
Output Pixel Clock Rate:
600MHz
Outputs Interface:
4 X HDMI 2.0
Audio Output:
HDMI Audio Out
Operating Temperature:
-10～50ºC/0～50ºC
Power Consumption:
60W
Power Supply:
220V
Control Method:
KVM,Button, Remote Control, Serial Port RS232, PC Software, Web Control
Size:
430x260x45mm
Weight:
5kg
Colour Format:
24bit，RGB，YUV444、YUV422
Product Description
|
Max output resolution each screen
|
3840×2160@60Hz |
|
Control method
|
Button, Remote control, RS232, Web control via PC, TCP/IP control methods,KVM |
| Functions | PIP, POP, overlay mode, arbitrary picture overlay, roaming, cross-screen, zoom, etc |
|
Accessories list
|
220V power supply x1, IR receiver x1, remote
control x1, network cable x1, USB A-B cable x4
|
|
After-sales warranty
|
1 Year. (return for repair, shipping cost and tax should be borne by buyer) |
|
Input Resolution
|
The following is the base resolution, which needs to be set
using the graphics card D M T standard:
800x600@60Hz,1024x768@60Hz,1280x768@60Hz,1280x800@60Hz,
1280x1024@60Hz1360x768@60Hz,1366x768@60Hz,1400x1050@60Hz,
1440x900@60Hz,1600x1200@60Hz,1680x1050@60Hz,
1920x1200@60Hz,1920x1080i50Hz/59Hz/60Hz/100Hz/120Hz,
1920x1080@24Hz/25Hz/30Hz/50Hz/60Hz/120Hz,3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz,
4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz.
----------------------------------------------
The following special input resolutions are set using the CVT
Synergy standard:
7680x4320@15Hz,7680x2160@30Hz,1920x6480@40Hz,3840x4320@30Hz,
1920x4320@30Hz,2560x2880@60Hz,5120x1440@60Hz,3840x1080@60Hz,
5760x1080@60Hz,7680x1080@29Hz/30Hz/59Hz/60Hz,1920x2160@60Hz,
1920x3240@60Hz,1920x4320@60Hz,1920x2400@60Hz,1920x3600@60Hz,
1920x4800@60Hz,3840x1200@60Hz,5760x1200@60Hz,7680x1200@60Hz,
3840x2400@60Hz.
|
| Output Resolution |
1024x768@60Hz,1280x720@60Hz,1280x800@60Hz,1360x768@60Hz,
1400x1050@60Hz,1440x900@60Hz,3840x1080@60Hz,7680x1080@30Hz/60Hz,
1920x1080@25Hz/29Hz/30Hz/50Hz/60Hz,1920x1200@60Hz/75Hz,5760x1080@30Hz,
3840x2160@29Hz/30Hz/50Hz/60Hz,4096x2160@60Hz,7680x4320@15Hz,
7680x2160@30Hz, 3840x4320@30Hz,1920x6480@40Hz
|

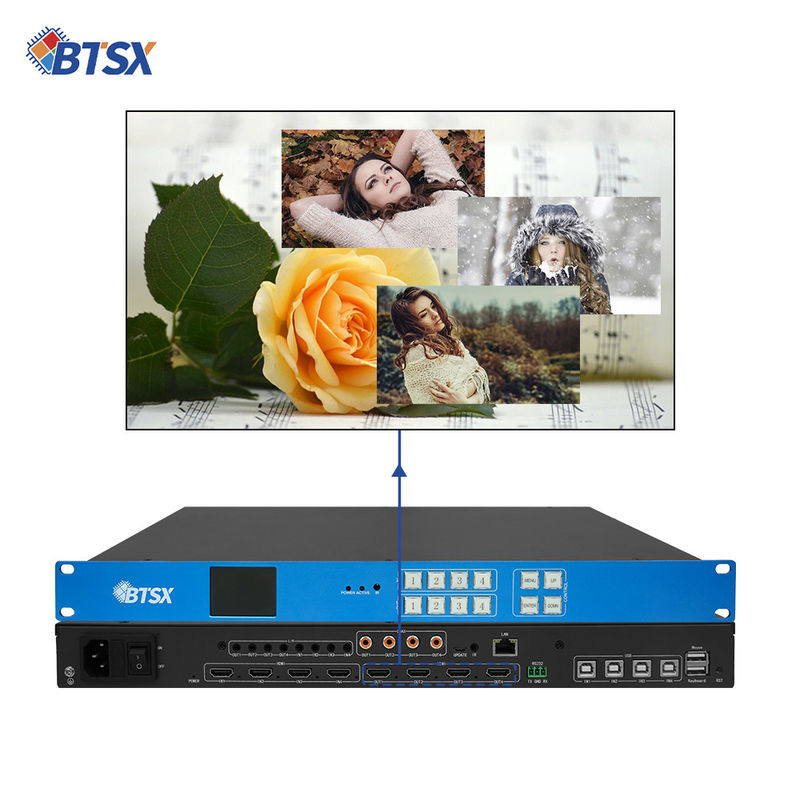

BIT-VWC-U1-MD404Ma is a new video processor with splicing, seamless switching matrix
and roaming launched by Bitvisus, the product has a high-definition
processing chip and supports 4-way 4K60 input and 4-way 4K60 output. Using HDMI
input interface, HDMI output interface. Apply to the command and control system,
multi-screen video surveillance, engineering display applications, multimedia
conference halls, game rooms and so on.
