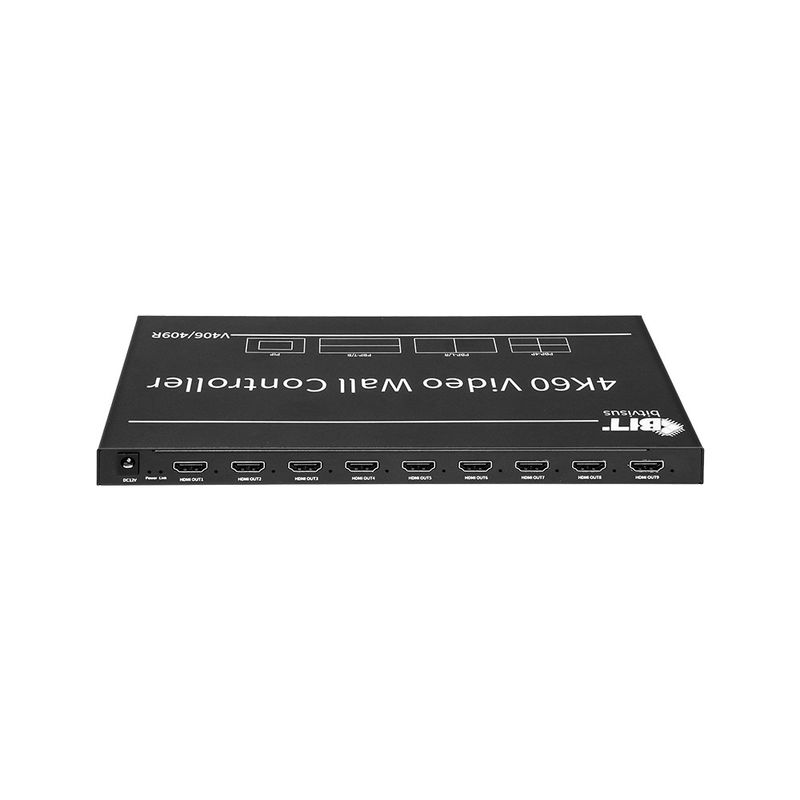

4 In 9 Out Video Wall Controller 12W 4K Video Wall Processor BIT-VWC-409R
4 In 9 Out Video Wall Controller 12W 4K Video Wall Processor BIT-VWC-409R
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,FCC,ROHS
PRODUCT MODEL
BIT-VWC-409R
Trading Properties
MOQ
1pc
Unit Price
Contact Us by mail: mango@bitvisus.com , or whatsapp: +86 18682365831
Payment Method
T/T,Paypal,Alipay etc...
Supply Capacity
50000
Product Summary
BIT-VWC-409R 4K 4in 9out Video Wall Controller/ Video Display Wall Processor/ Video Processor Max output resolution each screen 3840×2160@60Hz Control method Button, Remote control, RS232, Web control via PC, TCP/IP control methods,KVM Functions PIP, POP, overlay mode, arbitrary picture overlay, ...
Product Details
Highlight:
9 Out Video Wall Controller
,Video Wall Controller 12W
,4K Video Wall Processor
Inputs Interface:
3 X HDMI1.4, 1 X HDMI2.0 , 1 X DP1.2 ( ≤ 5 M)
HDCP:
2.2
Input Pixel Clock Rate:
600MHz
Output Pixel Clock Rate:
165MHz
Outputs Interface:
9 X HDMI 1.3
Audio Output:
HDMI Audio Out
Operating Temperature:
-10～50ºC/0～50ºC
Power Consumption:
12W
Power Supply:
DC 12V 2A
Control Method:
Button, Remote Control, Serial Port RS232, PC Software, Android Tablet Web
Size:
270mm*122.5mm*20.5mm
Weight:
1.5kg
Colour Format:
Input: 24 Bit, RGB444 , YUV420; Output: 24bit, RGB444
Product Description
BIT-VWC-409R 4K 4in 9out Video Wall Controller/ Video Display Wall Processor/ Video Processor
|
Max output resolution each screen
|
3840×2160@60Hz |
|
Control method
|
Button, Remote control, RS232, Web control via PC, TCP/IP control methods,KVM |
| Functions | PIP, POP, overlay mode, arbitrary picture overlay, roaming, cross-screen, zoom, etc |
|
Accessories list
|
Equipment* 1 , power supply*1, remote control*1
|
|
After-sales warranty
|
1 Year. (return for repair, shipping cost and tax should be borne by buyer) |
Overview
409R is a cutting-edge and highly versatile solution for advanced video processing needs.
With support for multiple high-definition input sources, including 4K and DisplayPort, and an array of output
options, it offers exceptional flexibility in creating custom splicing configurations.
Its ability to handle various splicing modes, including horizontal, vertical, and custom shapes, along with
support for cascade or parallel setups, makes it adaptable to a wide range of applications. The splicer’s multi
window capabilities, allowing for up to four windows on the screen, provide extensive flexibility in designing
complex video layouts. Users can assign input sources to specific windows, enhancing customization.
Notably, it maintains the highest image quality, with no stretching, deformation, or compression of input
sources, ensuring clear and pristine visuals. Convenient control options, including an infrared remote and
serial RS232 control, make it user-friendly and accessible.
Features
• The device is plug-and-play, ensuring no image distortion, compression, or stretching of input sources. It
supports 90° input source rotation and 180° output line rotation.
• Equipped with HDMI 2.0 and DP 1.2 inputs, it can drive six HDMI outputs with various display modes,
including 2x2, 2x3, 3x2, 1x3, 3x1, 1x4, and 4x1. It supports multiple picture-in-picture modes and multi
device parallel use.
• The single output supports a maximum resolution of 1920x1080@60Hz, while it can handle input sources
with a maximum resolution of 3840x2160@60Hz.
• It uses a high-end 40nm programmable FPGA chip and full hardware real-time processing architecture
for seamless switching modes without noticeable delays.
• Ideal for applications such as exhibition halls, indoor advertising video walls, digital signage, commercial
displays, control rooms, and interactive projections.
