Product Details:
|
| Product Name: | Fiber Optic Extender | Interface Protocol: | HDMI1.4/HDCP1.4 Compatible With DVI 1.0/VGA |
|---|---|---|---|
| Resolution: | 3840x2160@30Hz | Audio: | HDMI Audio Out |
| Power Supply: | DC 12V/2.0A | Transmission Distance: | 20KM |
| Support: | OEM/ODM | Power Consumption: | 6W |
| Size: | 105*76*27mm | Weight: | About 0.5KG |
| Highlight: | UHD HDMI Extender 20km,EDID Over Fiber Extender,KVM Over Fiber Extender |
||

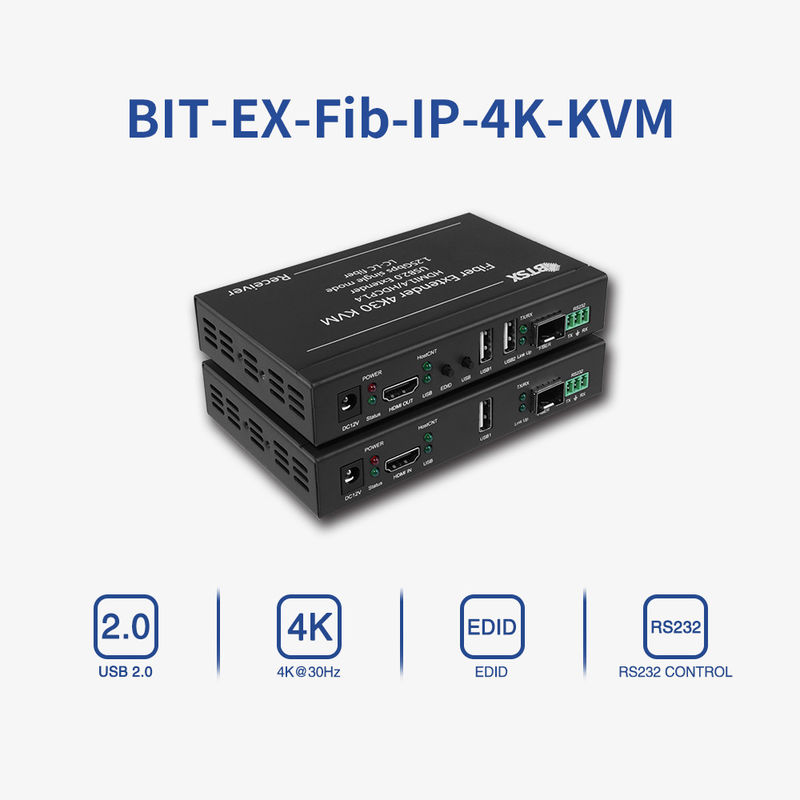

| BIT-Ex-Fib-IP-4K-KVM | ||
| Input | Transmitter(TX) | HDMI 1.4(≤5m),IR,RS232 signal |
| Receiver(RX) | LC-LC single-mode single-core fiber,10KM | |
| output | Transmitter(TX) | LC-LC single-mode single-core fiber,10KM |
| Receiver(RX) | HDMI1.4(≤5m),IR,RS232 signal | |
| audio | HDMI audio out | |
| other | Supported resolution | 4K30Hz is backward compatible with standard resolutions |
| Signal format | Support common resolutions under various input signal formats ;support common signal formats of VESA and HDTV |
|
| color space | Support RGB444;YUV color space | |
| Pixel bandwidth | 297MHz | |
| Transmission bandwidth |
1.25Gbps | |
| Transmission distance |
10KM | |
| through the switch | Support one-to-one,one-to-many(up to 32)optional (PS:All-gigabit smart switch,supports port MAC address binding,each port requires 800MBPS of bandwidth,and the port is not recommended to be full) |
|
| EDID learning | support | |
| KVM | USB 2.0,keyboard and mouse,U disk,radar,infrared touch,printer,etc. |
|
| CEC | support | |
| RS232 | Two-way RS232 transparent transmission | |
| 3D | support | |
| Remote wake up | support | |
| Interface Protocol | HDMI1.4,HDCP1.4 compatible with DVI1.0,VGA | |
| OEM | support | |
| power supply | DC 12V 2A | |
| Power consumption | ≤6W | |
| Storage/operating temperature |
-10～50℃/-25～55℃ | |

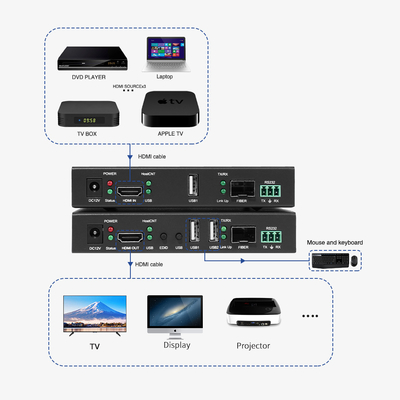

| use | HDMI,KVM,RS232 signal extension | |
| Specification | size | 105*76*27mm |
| weight | About 0.5KG | |
| packing list | Equipment*2,power supply*2,double-ended USB cable*1,single-mode single-core optical module *2, certificate *1,warranty card*1 |
|
| After-sales service | I year warranty | |
