Product Details:
|
Brand Name: | Bitvisus | Place Of Origin: | Guangdong, China |
---|---|---|---|
Product Name: | HBT HDMI Extender Video Transmission Equipment | Private Mold: | Yes |
HDMI Protocol: | HDMI1.4 / HDMI1.2 | Interface: | Standard RJ45 |
Model Number: | BIT-Ex-HBT-150 | Transmitter: | 150m |
Power Supply: | DC 12V | Weight: | 1500g |
Transmit Distance: | 150M | Working Temperature: | -5℃~+70℃ |
Warranty: | 1 Year | Certification: | Ce |
Highlight: | 1920X1080 120M HDMI Extender,CE 120M HDMI Extender,Network HDMI Extender Transmitter |

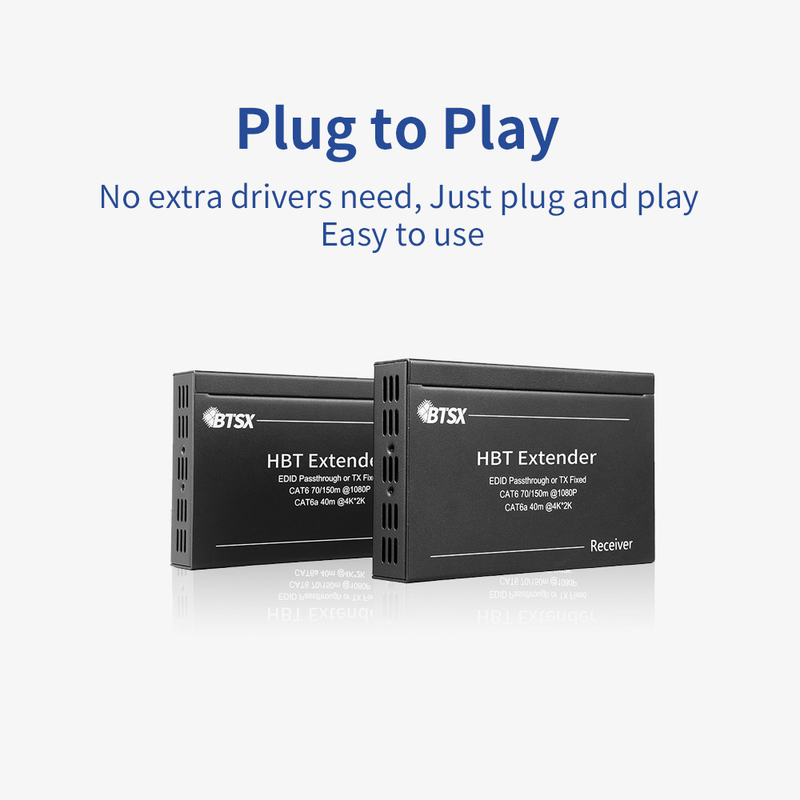

This device excels in transmitting full HD/UHD video signals up to 1080P3D, leveraging CAT6 cables for HDMI signal transmission over a remarkable 150 meters. Embracing the HD-BaseT standard, it guarantees long-range, high-speed, uncompressed video streaming with impeccable clarity, reliability, and stability. Its fanless, low-power design minimizes installation complexities and post-sales expenses. Further, it enables POE (Power over Ethernet) functionality, simplifying power requirements to a single 12V supply for either TX or RX unit. Purely hardware-based, it offers seamless plug-and-play operation without software drivers. Advanced features include CEC/IR/RS232 transparent transmission, bidirectional RS232 and IR control, and USB-KVM capability with 2 USB ports for keyboard and mouse connectivity, enhancing versatility and control.

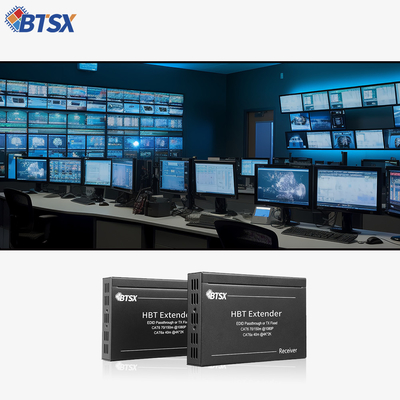

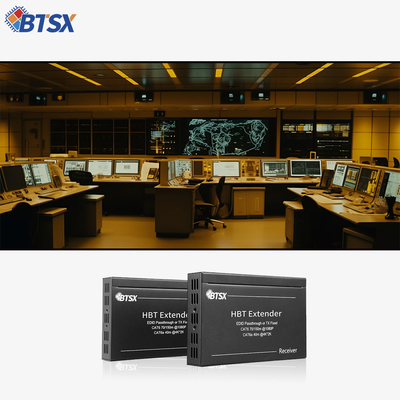

Multi-screen display engineering, multi-channel projection fusion engineering, liquid crystal splicing wall, exhibition exhibition engineering, etc.

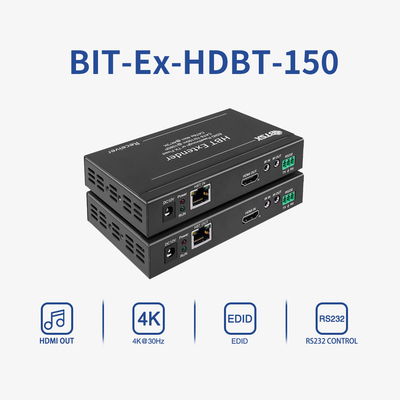

BIT-Ex-HDBT-150 | ||
Input | Transmission terminal(TX) | HDMI1.4(≤5m),IR,RS232 signal |
Reciever terminal(RX) | CAT6E,150m | |
Output | Transmission terminal(TX) | CAT6E,150m |
Reciever terminal(RX) | HDMI1.4(≤5m),IR,RS232 signal | |
Audio | HDMI audio signal | |
Other | Resolution | 1200P60Hzdownward compatibility; |
Signal Format |
Supports common resolution in various input signal formats; Supports common VESA and HDTV signal formats |
|
sRGB | Support RGB444;YUV sRGB | |
Pixel Bandwidth | 165MHz/300MHz,full-digital | |
Transmission Bandwidth | 6Gbps | |
Transmission Distance | 1080pCAT6E,150m | |
CEC | Support | |
RS232/IR |
Two-way RS232 transparent transmission/ Two-way IR transparent transmission |
|
3D | Support | |
POE Power Supply | Unidirectional power supply | |
Interface Protocol | HDMI1.4,HDCP2.2 Compatible DVI1.0,VGA | |
EDID Fixed/Transparent Transmission |
Support | |
OEM | Support | |
Power Supply | DC 12V 2A | |
Power Dissipation | ≤12W | |
Storage/Operating Temperature | -10~50ºC/-25~55ºC | |
Usage | HDMI,KVM,IR,RS232 Signal Extension | |
Specification | Dimenssion | 105*76*27mm |
Net weight | About 0.5KG | |
Packing List |
Equipment*2,power supply*1,Certification*1, Warranty card*1 |
|
After-sales Service | Warranty 1 year |
