Product Details:
|
Brand Name: | Bitvisus | Model Number: | BIT-Ex-HBT-150 |
---|---|---|---|
Place Of Origin: | Guangdong, China | Private Mold: | NO |
Transmitter: | 150m | Product Name: | HDMI Extender Video Transmission Equipment |
HDMI Protocol: | HDMI1.4 / HDMI1.2 | Application: | Multi Screen Display |
Power Supply: | DC 12V | Weight: | 1500g |
Interface: | Standard RJ45 | Transmit Distance: | 150M |
Highlight: | HDMI Video Transmitter Receiver 1920X1080,150M HDMI Video Transmitter Receiver,150M HDMI Network Extender |
1.HD/UHD Compatibility: Supports 1080P3D and Ultra HD video signals for an immersive viewing experience.
2.Long-Range Transmission: Up to 150 meters with a single CAT6 cable for 1080P HDMI signals.
3.HD-BaseT Efficiency: Fast, uncompressed video with low latency, low power, and high reliability over long distances.
4.POE-Enabled: Powers devices via network cables, simplifying installations and reducing costs.

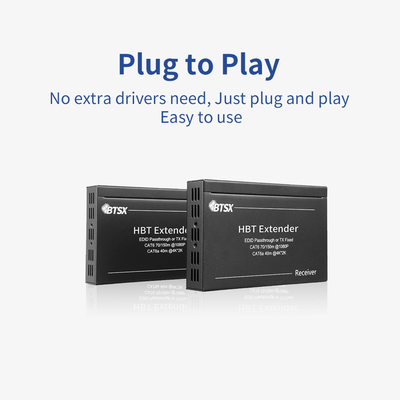

5.Plug-and-Play: Pure hardware design, no software drivers required.
6.Transparent Protocols: Supports CEC, IR, and RS232 transparent transmission for seamless integration.
7.Bidirectional RS232: Enables advanced device control and monitoring.
8.Dual-IR Control: Facilitates remote management and operation.
9.USB-KVM with Dual Ports: Allows remote access and control of connected devices.
Multi-screen display engineering, multi-channel projection fusion engineering, liquid crystal splicing wall, exhibition exhibition engineering, etc.

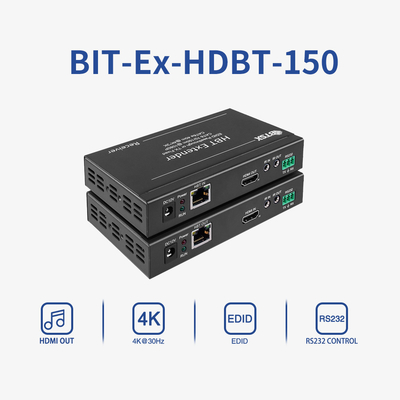

BIT-Ex-HDBT-150 | ||
Input | Transmission terminal(TX) | HDMI1.4(≤5m),IR,RS232 signal |
Reciever terminal(RX) | CAT6E,150m | |
Output | Transmission terminal(TX) | CAT6E,150m |
Reciever terminal(RX) | HDMI1.4(≤5m),IR,RS232 signal | |
Audio | HDMI audio signal | |
Other | Resolution | 1200P60Hzdownward compatibility; |
Signal Format |
Supports common resolution in various input signal formats; Supports common VESA and HDTV signal formats |
|
sRGB | Support RGB444;YUV sRGB | |
Pixel Bandwidth | 165MHz/300MHz,full-digital | |
Transmission Bandwidth | 6Gbps | |
Transmission Distance | 1080pCAT6E,150m | |
CEC | Support | |
RS232/IR |
Two-way RS232 transparent transmission/ Two-way IR transparent transmission |
|
3D | Support | |
POE Power Supply | Unidirectional power supply | |
Interface Protocol | HDMI1.4,HDCP2.2 Compatible DVI1.0,VGA | |
EDID Fixed/Transparent Transmission |
Support | |
OEM | Support | |
Power Supply | DC 12V 2A | |
Power Dissipation | ≤12W | |
Storage/Operating Temperature | -10~50ºC/-25~55ºC | |
Usage | HDMI,KVM,IR,RS232 Signal Extension | |
Specification | Dimenssion | 105*76*27mm |
Net weight | About 0.5KG | |
Packing List |
Equipment*2,power supply*1,Certification*1, Warranty card*1 |
|
After-sales Service | Warranty 1 year |
