Product Details:
|
Model Number: | BIT-Ex-HBT-150 | Brand Name: | Bitvisus |
---|---|---|---|
HDMI Protocol: | HDMI1.4 / HDMI1.2 | Audio: | HDMI Audio Signal |
Product Name: | HBT HDMI Extender Video Transmission Equipment | Place Of Origin: | Guangdong, China |
Interface: | Standard RJ45 | Application: | Multi Screen Display |
Power Supply: | DC 12V | Pixel Bandwidth: | 165MHz/300MHz,full-digital |
Highlight: | Customizable Wireless Video Transmitter Receiver,Wireless Video Transmitter Receiver 4K,Wireless 4K HDMI Extender |
Ultra-HD Support: 1080P3D Full HD/UHD video signals for crisp visuals.
Long-Range HDMI: Up to 150m HDMI transmission via single CAT6 cable at 1080P.
HD-BaseT Advantage: Fast, uncompressed video with reliability, stability, and low power consumption for seamless installations.
POE-Enabled: Network cable power supply (12V) for easy device powering.
Plug-and-Play: Pure hardware design, no software drivers needed.
Transparent Protocols: CEC, IR, RS232 support for seamless integration.
Bi-directional RS232: Advanced communication for device control and monitoring.
Dual IR Control: Remote management with ease.
USB-KVM Integration: 2 USB ports for keyboard & mouse, enabling remote access.

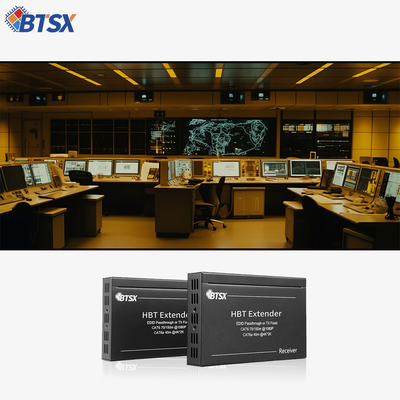

Multi-screen display engineering, multi-channel projection fusion engineering, liquid crystal splicing wall, exhibition exhibition engineering, etc.
BIT-Ex-HDBT-150 | ||
Input | Transmission terminal(TX) | HDMI1.4(≤5m),IR,RS232 signal |
Reciever terminal(RX) | CAT6E,150m | |
Output | Transmission terminal(TX) | CAT6E,150m |
Reciever terminal(RX) | HDMI1.4(≤5m),IR,RS232 signal | |
Audio | HDMI audio signal | |
Other | Resolution | 1200P60Hzdownward compatibility; |
Signal Format |
Supports common resolution in various input signal formats; Supports common VESA and HDTV signal formats |
|
sRGB | Support RGB444;YUV sRGB | |
Pixel Bandwidth | 165MHz/300MHz,full-digital | |
Transmission Bandwidth | 6Gbps | |
Transmission Distance | 1080pCAT6E,150m | |
CEC | Support | |
RS232/IR |
Two-way RS232 transparent transmission/ Two-way IR transparent transmission |
|
3D | Support | |
POE Power Supply | Unidirectional power supply | |
Interface Protocol | HDMI1.4,HDCP2.2 Compatible DVI1.0,VGA | |
EDID Fixed/Transparent Transmission |
Support | |
OEM | Support | |
Power Supply | DC 12V 2A | |
Power Dissipation | ≤12W | |
Storage/Operating Temperature | -10~50ºC/-25~55ºC | |
Usage | HDMI,KVM,IR,RS232 Signal Extension | |
Specification | Dimenssion | 105*76*27mm |
Net weight | About 0.5KG | |
Packing List |
Equipment*2,power supply*1,Certification*1, Warranty card*1 |
|
After-sales Service | Warranty 1 year |
