Bitvisus 8K60 6x1 2x3 PIP Artistic Video Wall Irregular Splicing Video Wall Controller

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T, PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    6x1 Video Wall Controller, 2x3 Video Wall Controller, 8K60 Video Wall Controller


Place Of Origin:	China	Private Mold:	Yes
Model Number:	BIT-VJ-106Pro	Product Name:	Special-shaped Splicing Processor
Feature:	Irregular Splicing(horizontal, Vertical, Oblique)	Splicing Method:	Support Normal Splicing And Irregular Splicing
Audio:	3.5mm Audio Splitter Connector	Input:	1x HDMI 2.0
Output:	6x HDMI 1.3	Control:	PC Control

Place Of Origin:	China
Private Mold:	Yes
Model Number:	BIT-VJ-106Pro
Product Name:	Special-shaped Splicing Processor
Feature:	Irregular Splicing(horizontal, Vertical, Oblique)
Splicing Method:	Support Normal Splicing And Irregular Splicing
Audio:	3.5mm Audio Splitter Connector
Input:	1x HDMI 2.0
Output:	6x HDMI 1.3
Control:	PC Control

Product Description

Bitvisus 8K60 6x1 2x3 PIP Artistic Video Wall Irregular Splicing Video Wall Controller

VJ-106Pro is a magic splicing processor that integrates a variety of functions - 8K/4K/2K video playback control, multi-screen splicing (point-to-point display, special-shaped splicing display), window opening (multi-window scene arbitrary layout and switch), 10-layer superposition, window roaming, slice display, edge effects, etc. It is suitable for a variety of audio and video applications, such as commercial display (multi-screen splicing, LED display), advertising media, bar, catering, entertainment, cultural travel, exhibition and other industries.

Bitvisus 8K60 6x1 2x3 PIP Artistic Video Wall Irregular Splicing Video Wall Controller 0

Features

1．6 screens with any angle and shape splicing
2．1 channel HDMI2.0 capture input, 6 channels HDMI1.3 output
3．Support 8k 60 ( 7680x4320@60Hz ) video decoding
4．Built-in 64G memory to store materials
5．Quickly cut video files in seconds
6．Material slicing function, the material screen can be edited and selected at will
7．Supports multi-layer material overlay, material picture-in-picture , and up to 10 layers of material overlay.
8．Support output blind plugging (please note that 12 and 34 must be connected at the same time)
9．Supports RS232/RS485/TTL multiple control protocols and interfaces
10．Support external U disk copy + playback function(Max. 1 USB drive)
11．Support network screen projection echo monitoring function
12．built-in players support playing two different videos and two sets of different pictures at the same time
13．Support rolling subtitle function
14．Supports edge special effects functions (edge indentation, blur level, matte level, amplification, mirroring)

Bitvisus 8K60 6x1 2x3 PIP Artistic Video Wall Irregular Splicing Video Wall Controller 1

product specifications

VJ -106Pro
enter	interface	1xHDMI 2.0 _ _
	Line length	4K60 : 5m ; 1080P60 : 10m _
output	interface	6xHDMI1.3 _ _ _
	Line length	1080P60 : 10m _
	Audio	3.5mm audio separation interface
other	control method	PC host computer
	control protocol	RS232/RS485/TTL
	Alien adjustment	support
	window layout	Any window opening *10 , overlay, roaming
	Material management	Video and picture playback control
	Memory	64G
	power supply	DC 12V 2A
	Power consumption	≤ 14W
	Operating temperature	≤ 60 ℃

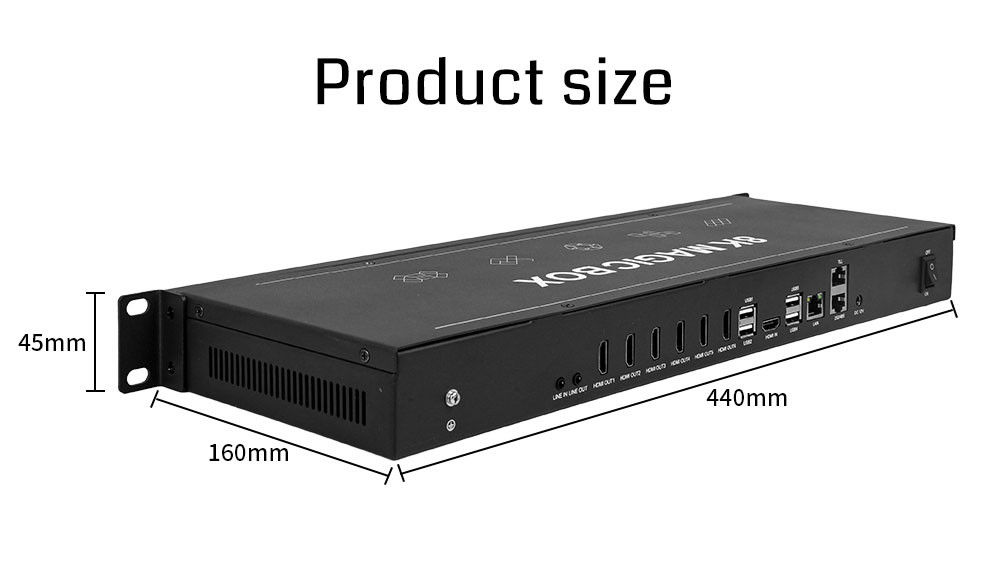

Specification	size	440x160x45mm _ _ _ _ _
	shell material	1U aluminum shell
	weight	1.8kg _
	packing list	Equipment1, power supply1, network cable 1 , certificate1, warranty card*1
	After-sales service	2 years warranty

FAQ

Bitvisus FAQ

Why Choose Bitvisus ?

1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).

2. OEM/ODM offered for our customers.

3.We are one of leading Manufacturer in this field.

How to order ?

1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.

3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale

1.Our products come with 12 months warranty and life-time service support.

2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.

Shipment & payment

1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.

Ratings & Review

Overall Rating

4.7

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

67%

4 stars

33%

3 stars

2 stars

1 stars

All Reviews

D*r

United Kingdom Apr 6.2026

Helpful (12)

The modular card design is practical for our meeting center because we did not need the full 36 inputs at the beginning. The unit handled multiple display layouts such as 3x3 and mixed scenes without much difficulty. EDID and output resolution settings through the browser are useful, though first-time setup requires careful checking of each signal source. Overall, a solid matrix splicer for B2B AV projects.

Emily Brown

United States May 27.2025

Helpful (5)

I was searching for a “4x4 HDMI matrix video wall controller 4K60” and found this Bitvisus model. It handles 4096×2160@60 with no issues and lets us do point-to-point splicing, roaming, and overlay on four screens in our meeting room. Control options are great too – IR remote for quick changes, plus RS232 and web control when our IT guy wants to tweak presets from his laptop. For a compact blue 4K HDMI matrix, it’s been very easy to live with.

Joshua Turner

United States Apr 11.2025

Helpful (3)

I’m using this multi monitor HDMI 3x3 video wall controller 4K 2x2 processor in a small control room and it’s been super stable. We feed 4 HDMI sources plus 1 DP input into it and drive a 3x3 wall with 9 HDMI outputs, plus the DP loop-out for an extra operator screen. Image stays sharp at 4K in and 1080p out, no weird stretching or lag. Exactly what I expected from a 3x3 video wall controller switcher.
