8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller

8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller
8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller
8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller

Large Image :  8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-VJ-106Pro
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller

Description
Brand Name: Bitvisus Model Number: BIT-VJ-106Pro
Audio: 3.5mm Audio Splitter Connector Output: 6x HDMI 1.3
Input: 1x HDMI 2.0 Feature: Irregular Splicing(horizontal, Vertical, Oblique)
Splicing Method: Support Normal Splicing And Irregular Splicing Place Of Origin: China
Suppoprt: OEM,ODM Warranty: 2 Year
Highlight:

PIP LED Screen Video Processor

,

8K60 LED Screen Video Processor

Bitvisus Creative Splicing 8K60 PIP Cropping Zoom Point to Point LCD LED Video Processor

The VJ-106Pro stands apart as an advanced splicing processor, blending exceptional versatility with powerful features. It masterfully harmonizes 8K, 4K, and 2K video playback control, offering unparalleled visual fidelity. Uniquely, it excels in multi-screen orchestration, enabling both precise point-to-point displays and creative special-shaped splicing layouts. With its multi-window scene flexibility, users can freely arrange and switch between views, enhancing interactivity and dynamism.

Elevating the experience further, the VJ-106Pro boasts a 10-layer superimposition capability, allowing intricate layering of content. Window roaming adds a dynamic touch, while slice display and edge effects introduce eye-catching visual elements. These features collectively cater to a diverse range of audio-visual needs, transcending traditional boundaries.



8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 0



Features

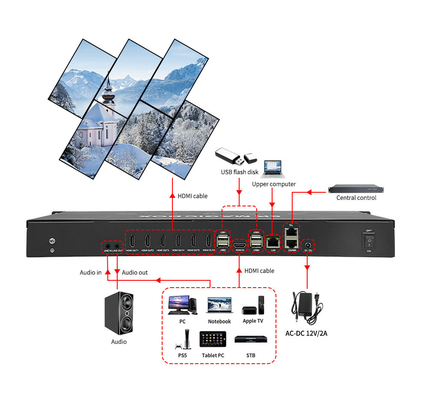

1.6 screens with any angle and shape splicing
2.1 channel HDMI2.0 capture input, 6 channels HDMI1.3 output
3.Support 8k 60 ( 7680x4320@60Hz ) video decoding
4.Built-in 64G memory to store materials
5.Quickly cut video files in seconds
6.Material slicing function, the material screen can be edited and selected at will
7.Supports multi-layer material overlay, material picture-in-picture , and up to 10 layers of material overlay.
8.Support output blind plugging (please note that 12 and 34 must be connected at the same time)
9.Supports RS232/RS485/TTL multiple control protocols and interfaces
10.Support external U disk copy + playback function(Max. 1 USB drive)
11.Support network screen projection echo monitoring function
12.built-in players support playing two different videos and two sets of different pictures at the same time
13.Support rolling subtitle function
14.Supports edge special effects functions (edge indentation, blur level, matte level, amplification, mirroring)



8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 1





Ideal for a diverse spectrum of applications, the VJ-106Pro is tailored for commercial showcases (revolutionizing multi-screen setups and LED displays), advertising platforms, vibrant bars, sophisticated catering venues, entertainment hubs, cultural tourism experiences, exhibitions, and beyond. It's the ultimate tool for professionals seeking to elevate their audio-visual presentations to the next level.



product specifications



VJ -106Pro
enter interface 1xHDMI 2.0 _ _
  Line length 4K60 : 5m ; 1080P60 : 10m _
output interface 6xHDMI1.3 _ _ _
  Line length 1080P60 : 10m _
  Audio 3.5mm audio separation interface
other control method PC host computer
  control protocol RS232/RS485/TTL
  Alien adjustment support
  window layout Any window opening *10 , overlay, roaming
  Material management Video and picture playback control
  Memory 64G
  power supply DC 12V 2A
  Power consumption ≤ 14W
  Operating temperature ≤ 60 ℃

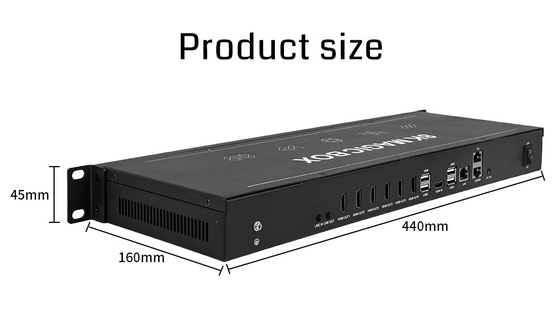

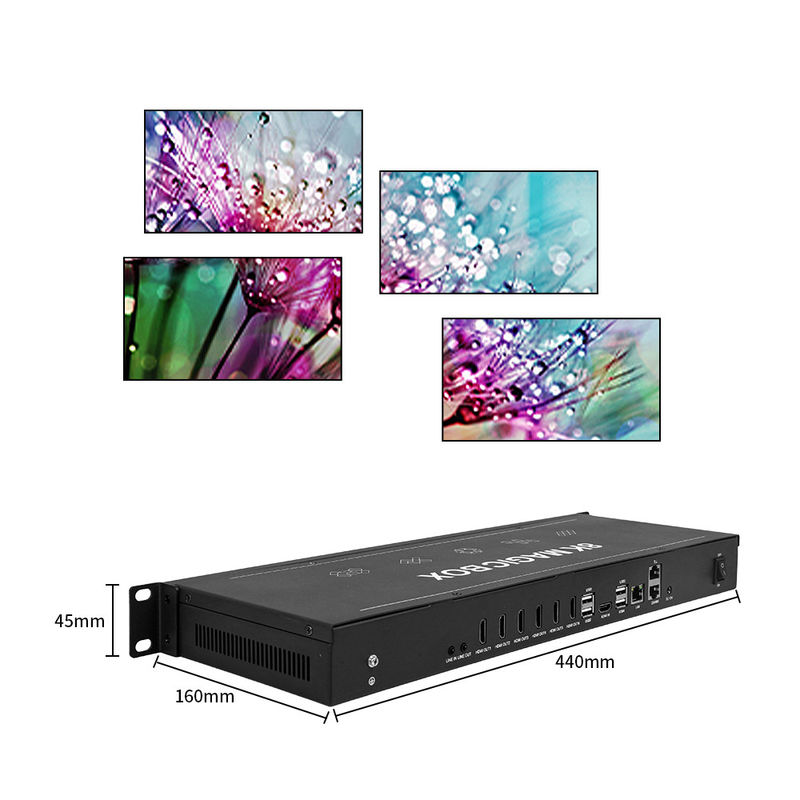

Specification size 440x160x45mm _ _ _ _ _
  shell material 1U aluminum shell
  weight 1.8kg _
  packing list Equipment*1, power supply*1, network cable *1 , certificate*1, warranty card*1
  After-sales service 2 years warranty





FAQ

Bitvisus FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ?
1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.

8K60 PIP Cropping Zoom LCD LED Screen Video Processor Point To Point Video Controller 2
