Product Details:
|
Model Number: | BIT-MSE-U1-416 | Place Of Origin: | Guangdong, China |
---|---|---|---|
Brand Name: | Bitvisus | Feature: | TV Wall Controller |
Type: | Digtal | Size: | 482.6mm*396.8mm*44mm |
Weight: | 5KG | Application: | Stage, AD |
Warranty: | 1 Year | Input: | 4 Input |
Highlight: | HDMI Multi Monitor Video Wall Controller,Multi Monitor Video Wall Controller 4x4 |
BIT-MSE-U1-416 is an industrial-grade, high-performance product with 8Kx2K@60Hz ultra-high-definition resolution, supporting up to 4 inputs and 16 outputs for flexible splicing configurations. It boasts energy-efficient wide voltage power supply, wireless/wired network control, and an ultra-fast 28nm FPGA chip for real-time processing. Designed for durability with 6-layer PCB, 16KV anti-static, and customizable splicing options, it's ideal for applications ranging from ultra-high-res desktops to large-scale display walls, VR, surround-screen theaters, and multi-screen advertising.
1. BIT-MSE-U1-416 is an industrial-grade and high-performance product, and its ultra-high-definition resolution supports even up to 8Kx2K@60Hz.
2. Maximum support 4 inputs and 16 outputs. All splicing modes within 16 screens can be combined arbitrarily: horizontal screens / vertical screens / odd-numbered screens splicing, and supports large-scale parallel use.
3. Adopt wide voltage (100~240V) centralized power supply, low power consumption, energy saving and environmental protection design. Conductive heat dissipation is adopted internally, and no external heat dissipation measures are required. High reliability.
4. Support both wired network control and wireless network control.
5. Using 28nm process high-end programmable FPGA chip, ithas full hardware and real-time processing architecture, making processing speed ultra-fast without delay With Industrial-grade design, it has thickened
6.layer PCB board, 16KV super anti-static ability, and tremendous stability.
7. Any splicing needs can be customized according to userneeds.
Ultra-high resolution desktop applications, ultra-large screen
walls, command and dispatch systems, multi-screen video
surveillance, engineering display applications, multi-channel
projection, virtual reality, surround-screen theater, large
advertising walls, LCD/LED multi-screens, etc.
Product name | BIT-MSE-U1-416 Ultra HD splicing processor |
Input Max.Pixel FPS | 600MHz |
Output Max.Pixel FPS | 165MHz |
4x4 highest resolution | 7680x4320@60Hz |
7x2 highest resolution | 3840x7560@60Hz |
2x7 highest resolution | 13440x2160@60Hz |
3x5 highest resolution | 9600x3240@30Hz |
5x3 highest resolution | 5760x5400@30Hz |
2x5 highest resolution | 9600x2160@60Hz |
5x2 highest resolution | 3840x5400@60Hz |
16x1 highest resolution | 30720x1080@60Hz |
1x16 highest resolution | 1920x17280@60Hz |
1x5 highest resolution | 9600x1080@60Hz |
1x7 highest resolution | 13440x1080@60Hz |
Factory default resolution |
3840x2160@60Hz |
Support customized arbitrary resolution |
√ |
Types of input interface | 4 DP 4 HDMI 1 RJ45 Lan 1 RJ45 Debug port HDCP2.2 |

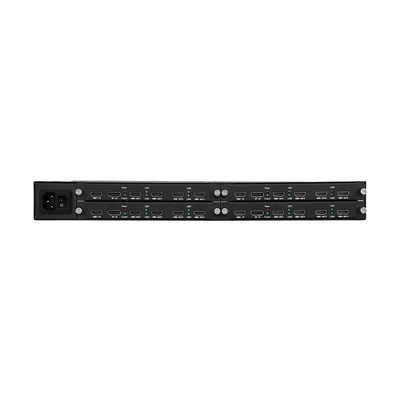

Types of output interface | 4~16 HDMI |
Size | 482.6mm*396.8mm*44mm |
Weight | 5kg |
