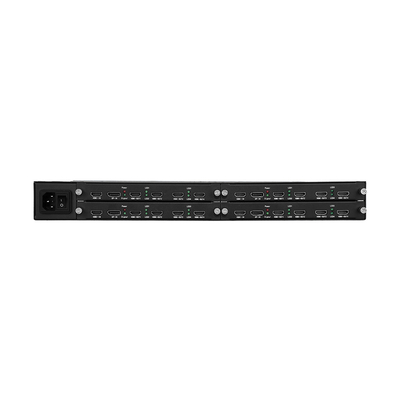

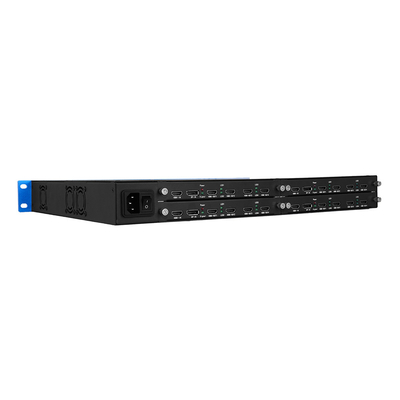

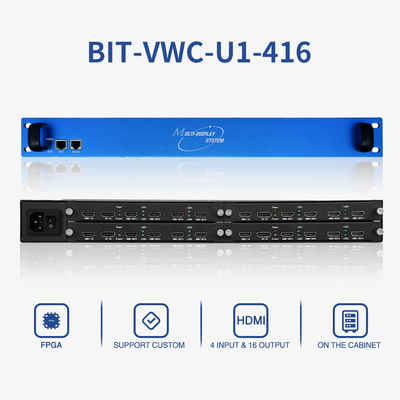

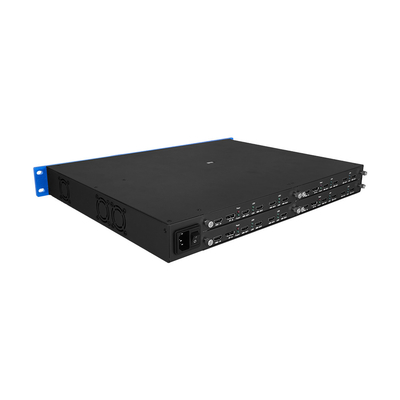

HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4

HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4
HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4
HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4 HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4 HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4 HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4 HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4 HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4

Large Image :  HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-MSE-U1-416
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4

Description
Model Number: BIT-MSE-U1-416 Brand Name: Bitvisus
Place Of Origin: Guangdong, China Types Of Output Interface: 4~16 HDMI
Output: 16 Output Output Interface Type: 16HDMI
Frequency Range (Hz): 1km Factory Default Resolution: 3840x2160@60Hz
Highlight:

HD HDMI Video Projector

,

HDMI Video Projector 4K

,

16 Channels Video Wall Controller 4x4

HD HDMI Video Projector 4K 8K 4x4 2x2 3x3 2x4 16 Channels Video Wall Controller Multi-Screen Expander



The BIT-MSE-U1-416 stands out as an exceptional industrial-grade, ultra-high-performance product that transcends the norm. With its stunning 8Kx2K@60Hz resolution capability, it sets a new benchmark for clarity and detail in display technology. What truly differentiates it is its unparalleled flexibility and scalability, offering up to 4 inputs and 16 outputs, allowing for an infinite variety of screen configurations and splicing modes to suit any creative vision or practical need.

The product's integration of advanced 28nm FPGA technology within a full hardware and real-time processing architecture ensures blazingly fast performance without any discernible delay, catering to the most demanding applications. Its industrial-grade robustness is evident in the thickened 6-layer PCB board, exceptional 16KV anti-static protection, and innovative internal conductive heat dissipation system that eliminates the need for external cooling, further boosting reliability and longevity.







HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4 0



Product features


1. BIT-MSE-U1-416 is an industrial-grade and high-performance product, and its ultra-high-definition resolution supports even up to 8Kx2K@60Hz.

2. Maximum support 4 inputs and 16 outputs. All splicing modes within 16 screens can be combined arbitrarily: horizontal screens / vertical screens / odd-numbered screens splicing, and supports large-scale parallel use.

3. Adopt wide voltage (100~240V) centralized power supply, low power consumption, energy saving and environmental protection design. Conductive heat dissipation is adopted internally, and no external heat dissipation measures are required. High reliability.

4. Support both wired network control and wireless network control.

5. Using 28nm process high-end programmable FPGA chip, ithas full hardware and real-time processing architecture, making processing speed ultra-fast without delay With Industrial-grade design, it has thickened

6.layer PCB board, 16KV super anti-static ability, and tremendous stability.

7. Any splicing needs can be customized according to userneeds.





HD HDMI Video Projector 4K 8K 16 Channels Video Wall Controller 4x4 2x2 3x3 2x4 1



Application scenarios



Ultra-high resolution desktop applications, ultra-large screen
walls, command and dispatch systems, multi-screen video
surveillance, engineering display applications, multi-channel
projection, virtual reality, surround-screen theater, large
advertising walls, LCD/LED multi-screens, etc.



Specifications



Product name BIT-MSE-U1-416 Ultra HD splicing


processor
Input Max.Pixel FPS 600MHz
Output Max.Pixel FPS 165MHz
4x4 highest resolution 7680x4320@60Hz
7x2 highest resolution 3840x7560@60Hz
2x7 highest resolution 13440x2160@60Hz
3x5 highest resolution 9600x3240@30Hz
5x3 highest resolution 5760x5400@30Hz
2x5 highest resolution 9600x2160@60Hz
5x2 highest resolution 3840x5400@60Hz
16x1 highest resolution 30720x1080@60Hz
1x16 highest resolution 1920x17280@60Hz
1x5 highest resolution 9600x1080@60Hz
1x7 highest resolution 13440x1080@60Hz

Factory default

resolution
3840x2160@60Hz
Support customized

arbitrary resolution
Types of input interface 4 DP


4 HDMI


1 RJ45 Lan

1 RJ45 Debug port

HDCP2.2
Types of output interface 4~16 HDMI
Size 482.6mm*396.8mm*44mm
Weight 5kg
