Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-MSE-4K60-103PRO
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

4K60 High Performance Multi Display Controller For Industrial Grade Projection Fusion

Description
Model Number: BIT-MSE-4K60-103PRO Place Of Origin: Guangdong
Brand Name: Bitvisus Output Max Resolution: 7680*1200@30Hz
Processing Chip:: 45nm High-end Programmable FPGA Chip Input Interfaces: HDMI Interface (priority)
Output Interfaces: HDMI Interface (optional) Frequency Range (Hz): 60Hz
Power Supply: 12V@2A AC-DC Power Supply EDID Modification: Supports EDID Modification Through USB Interface
Highlight:

4K60 Multi Display Controller

,

Industrial Multi Display Controller

bitvisus1*3 2*3 high resolution video wall controller hdmi extender



Introducing the MSE-HBT-4K60-103PRO, an industrial-grade masterpiece tailored to meet the rigorous demands of multi-channel projection fusion. This high-performance video wall controller seamlessly integrates diverse input interfaces like DP, DVI, and HDMI/DP, ensuring compatibility with a wide range of devices. Leveraging HBT standard output ports, it facilitates seamless transmission and extension of your video signals. Designed for both flexibility and durability, the MSE-HBT-4K60-103PRO boasts rack-mounting support, enhancing its applicability across various setups and environments.
Product Characteristics:





4K60 High Performance Multi Display Controller For Industrial Grade Projection Fusion 0





Product Characteristics



1,Industrial-Grade Performance: Specifically developed for multichannel projection fusion, the MSE-HBT-4K60-103PRO boasts industrial-grade robustness and performance. It supports DP, DVI, or HDMI/DP input interfaces and HDBaseT standard output ports, ensuring seamless integration with your existing equipment.
2,Ultra-High Resolution Support: Enjoy stunning visuals with support for resolutions up to 2x3840x2160@30Hz, 3840x2160x2@30Hz, and 5760x1200@60Hz. Compatible with lower resolutions, it's the perfect solution for demanding applications.
3,EDID Modification via USB: Conveniently modify EDID settings through the built-in USB interface, simplifying setup and configuration processes.
4,High-End FPGA Chip: Equipped with a 45nm high-end programmable FPGA chip, the MSE-HBT-4K60-103PRO delivers full hardware real-time processing with lightning-fast speeds and zero delay.
5,Industrial Design & Durability: Boasting a thickened 6-layer PCB and 16KV anti-static protection, this video wall controller is designed for unmatched stability and longevity.
6,Parallel Operation Capability: Meet the real-time display demands of large screens with support for parallel operation, ensuring seamless video playback and synchronization across multiple screens.
7,Low Power & High Reliability: Engineered for low power consumption, the MSE-HBT-4K60-103PRO adopts internal conduction heat dissipation, eliminating the need for external cooling measures and enhancing overall reliability.





4K60 High Performance Multi Display Controller For Industrial Grade Projection Fusion 1



Application Scenario

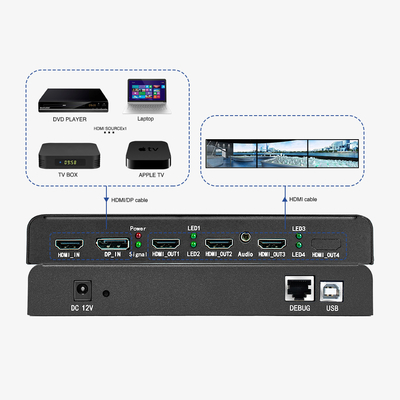

Ideal for a myriad of applications, including high-resolution desktop setups, large screen walls, command and dispatching systems, multi-screen video monitoring, engineering display solutions, multi-channel projection, virtual reality experiences, ring theaters, large advertising walls, and LCD/LED multi-screen configurations. The MSE-HBT-4K60-103PRO is your go-to solution for creating immersive and seamless visual experiences across various industries.



Specifications



Product name BIT-MSE-4K60-103Pro
Maximum video pixel frequency of input interface 600MHz
Maximum video pixel frequency of output interface 300MHz

BIT-MSE-4K60-103Pro

Highest resolution

2x3840x2160@30Hz,3840x2160x2@30Hz

3x1920X1200@60Hz; 3x1920X1080@60Hz

Default resolution: 3072x768@60Hz

Input interface type

HDMI interface, DP interface (choose one from two, HDMI priority)

Supports HDCP2.2

Out interface type

HDMI interface, DP interface (choose one from two, HDMI priority)

Supports HDCP2.2

Output line length 15 meter copper wire
Power Supply 12V@2A AC-DC Power Supply
Quality assurance One year
