4K TV Video Wall Multi Display Controller HBT Video Wall Controller 1x4 4x1

Name: 4K TV Video Wall Multi Display Controller HBT Video Wall Controller 1x4 4x1
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-4K60-103PRO
Price: 632.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-MSE-4K60-103PRO

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T, PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    TV Multi Display Controller, Multi Display Controller 4x1, HBT Video Wall Controller 1x4


Brand Name:	Bitvisus	Place Of Origin:	Guangdong
Model Number:	BIT-MSE-4K60-103PRO	Output Max Resolution:	7680*1200@30Hz
Input Interface:	HDMI / DP	Output Interface:	HBT *3
Processing Chip::	45nm High-end Programmable FPGA Chip	Power:	12V/24
Color:	Black	Warranty:	1 Year

Brand Name:	Bitvisus
Place Of Origin:	Guangdong
Model Number:	BIT-MSE-4K60-103PRO
Output Max Resolution:	7680*1200@30Hz
Input Interface:	HDMI / DP
Output Interface:	HBT *3
Processing Chip::	45nm High-end Programmable FPGA Chip
Power:	12V/24
Color:	Black
Warranty:	1 Year

Product Description

4K TV video wall processor controller 1x4 4x1 HBT video wall splicing controller with transmit function

BIT-MSE-4K60-103Pro is an industrial-grade, high-performance product specifically engineered to cater to the demanding requirements of multichannel projection fusion. This advanced device utilizes DP, DVI, or HDMI/DP input interfaces, and incorporates the HDBaseT standard output port, offering exceptional compatibility and flexibility.

4K TV Video Wall Multi Display Controller HBT Video Wall Controller 1x4 4x1 0

Product Characteristics

High-Resolution Support: Capable of supporting resolutions up to 2x3840x2160@30Hz, 3840x2160x2@30Hz, and 5760x1200@60Hz, with seamless compatibility for lower resolutions.
Real-Time Processing: Equipped with a 45nm high-end programmable FPGA chip, providing full hardware real-time processing architecture for unmatched speed and zero latency.
Rugged Design: Boasts industrial-grade design with a thickened 6-layer PCB and 16KV anti-static capabilities, ensuring maximum product stability and reliability.
Parallel Operation: Enables parallel operation to meet the stringent demands of real-time large-screen displays.
Low Power Design: Features internal conduction heat dissipation, eliminating the need for external cooling measures, thereby enhancing reliability.

4K TV Video Wall Multi Display Controller HBT Video Wall Controller 1x4 4x1 1

Application Scenario

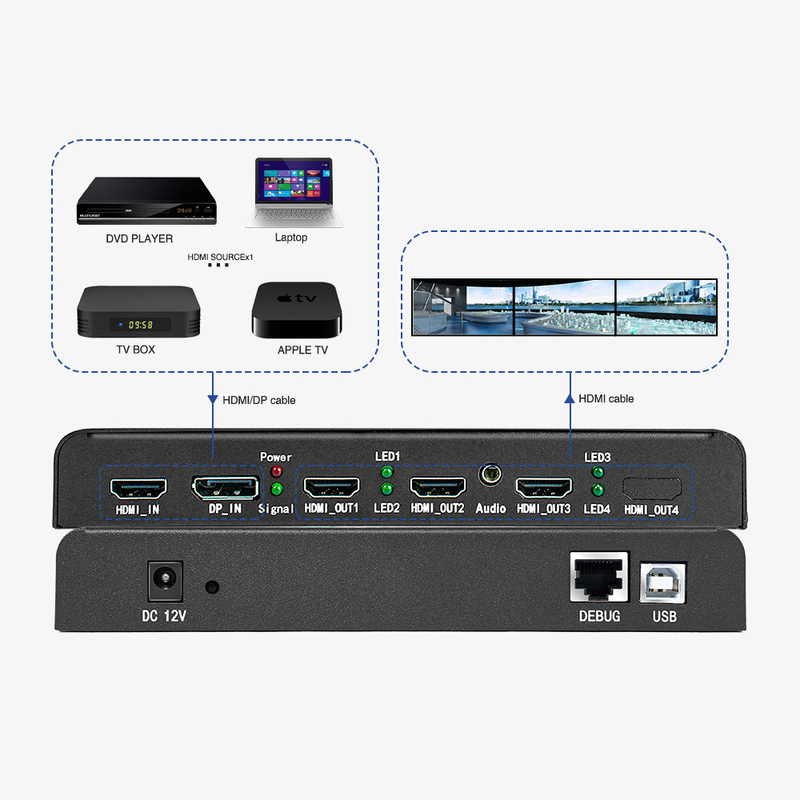

Ideal for a myriad of applications, including high-resolution desktop setups, large screen walls, command and dispatching systems, multi-screen video monitoring, engineering display solutions, multi-channel projection, virtual reality experiences, ring theaters, large advertising walls, and LCD/LED multi-screen configurations. The MSE-HBT-4K60-103PRO is your go-to solution for creating immersive and seamless visual experiences across various industries.

Specifications

Product name	BIT-MSE-4K60-103Pro
Maximum video pixel frequency of input interface	600MHz
Maximum video pixel frequency of output interface	300MHz
BIT-MSE-4K60-103Pro Highest resolution	2x3840x2160@30Hz,3840x2160x2@30Hz 3x1920X1200@60Hz; 3x1920X1080@60Hz Default resolution: 3072x768@60Hz
Input interface type	HDMI interface, DP interface (choose one from two, HDMI priority) Supports HDCP2.2
Out interface type	HDMI interface, DP interface (choose one from two, HDMI priority) Supports HDCP2.2
Output line length	15 meter copper wire
Power Supply	12V@2A AC-DC Power Supply
Quality assurance	One year
