Product Details:
|
| Model Number: | BIT-Ma-U1-MC0808 | Brand Name: | Bitvisus |
|---|---|---|---|
| Private Mold: | Yes | Color: | Black |
| Place Of Origin: | China | Product Name: | HDMI Matrix Vdieo Switcher |
| Resolution: | 4Kx2K@50/60Hz | Control Method: | RS232/RJ45,push-button, IR Remote Control |
| Function: | EDID Function | Operating Temperature: | -10°C~45°C/14°F~113°F |
| Highlight: | 4K60 HDMI Matrix Switcher,HDMI Matrix Switcher 2X3,EDID Video Wall Processor 2x2 |
||

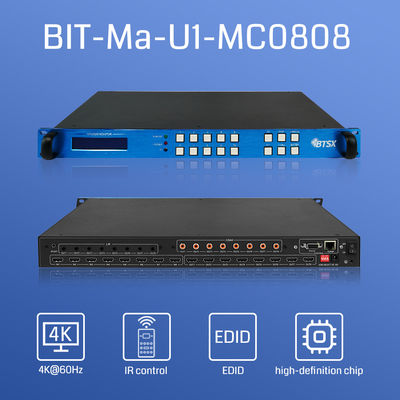

Introducing the BIT-Ma-U1-MC0808, an advanced HDMI switcher that supports seamless video transmission up to 4K2K@60Hz and multi-channel high-resolution digital audio. With the capability to route 8 HDMI signal sources to 8 HDMI display devices, this matrix ensures exceptional audio-visual performance. It also features audio stripping from HDMI sources to coaxial and analog audio ports. Each HDMI output port independently supports video scaling from 4K x 2K to 1080P, ensuring compatibility across different display devices. Conveniently controlled via panel buttons, infrared remote control, or host computer (RS-232 and RJ45), this switcher is perfect for multimedia conference halls, TV teaching, large-screen display projects, and more.
1,Compliant with HDMI2.0 and HDCP 2.2/1.4 specifications
2,Supports video resolution up to 4K x 2K@60Hz
3,18Gbps video bandwidth for unparalleled clarity
4,Compatible with Dolby Vision, HDR10+, and HLG
5,Independent 4K->1080P video scaling function on all HDMI output ports
6,Supports up to 7.1 high-definition audio channels
7,Audio stripping to coaxial and analog audio ports
8,EDID selection via dial code
9,1U rack mount design with front panel LCD display
10,Control options include front panel buttons, infrared remote control, and host computer (RS-232 and RJ45)
| Product model | BIT-Ma-U1-MC0808 |
| shell | metal shell |
| color | black |
| size | 440mm(L)×200mm(W)×44.5mm(H) |
| weight | 4kg |
| Power supply |
nput:AC100~240V50/60Hz
Output:DC12V/2-3A(US/EUstandard,CE/FCC/ULcertification)
|
| power consumption | 43W |
| operating temperature | -10°C~45°C/14°F~113°F |
| Storage temperature | -20°C~60°C/-4°F~140°F |
| Relative humidity | 20~90%RH(non-condensing) |
| Warranty | One year |
1. Comply with HDMI2.0 and HDCP2.2/1.4 specifications.
2. Video resolution up to 4Kx2K@60Hz.
3. Support 18Gbps video bandwidth.
4. Support Dolby Vision,HDR10+ and HLG.
5. All HDMI output ports support 4K->1080P video scaling function.
6. Supported HDMI audio formats up to 7.1 high-definition audio channels.
7.Support stripping audio from HDMI source to coaxial audio port and analog audio port output.
8.Support dial code for EDID selection.
9.1U rack mount design with front panel LCD display.
10.Control by front panel buttons,infrared remote control,host computer(RS-232andRJ45)
