Highlight:
RS232 HDMI Matrix Switcher
, HDMI Matrix Switcher 2x2
, Video Matrix Switcher 4x4
Model Number: |
BIT-Ma-U1-MC0808 |
Brand Name: |
Bitvisus |
Place Of Origin: |
China |
Product Name: |
HDMI Matrix Vdieo Switcher |
Resolution: |
4Kx2K@50/60Hz |
HDCP Compatible: |
HDCP 2.2/1.4 |
Control Method: |
RS232/RJ45,push-button, IR Remote Control |
Input Port: |
8xHDMI TypeA,1xIREXT |
Output Port: |
8xHDMI TypeA,8xCoax Audio(RCA),8xL/RAudio |
Operating Temperature: |
-10°C~45°C/14°F~113°F |
Newest New HDMI matrix 8x8 4x4 2x2 support 3D video RS232 8 In 8 Out hdmi matrix switcher

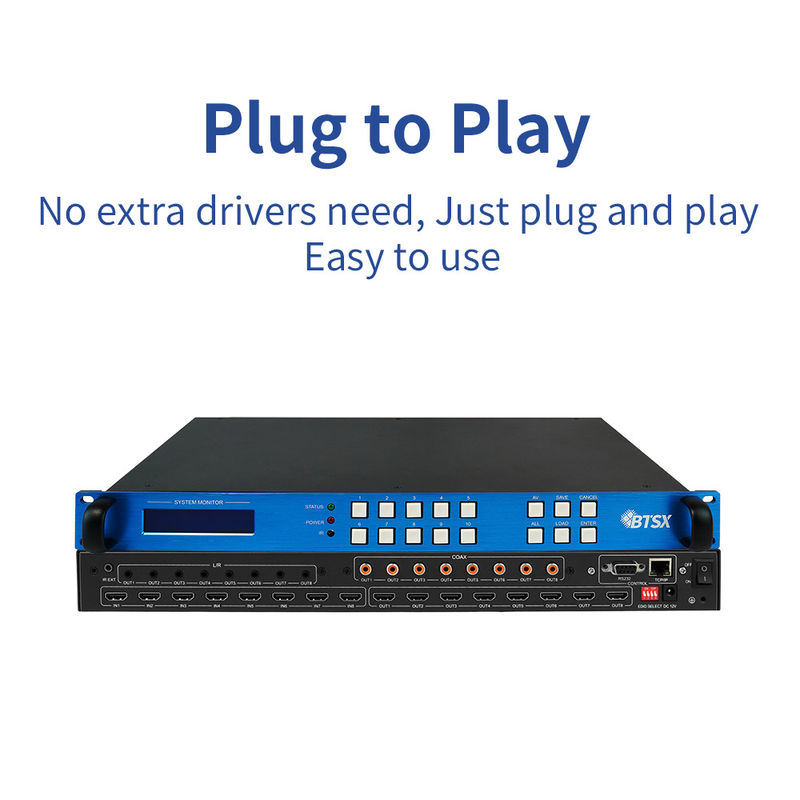

Introducing the BIT-Ma-U1-MC0808, a cutting-edge HDMI switcher designed to elevate your audio-visual experience. This 8x8 matrix supports 4K2K@60Hz video transmission and multi-channel high-resolution digital audio, enabling seamless integration of 8 HDMI signal sources with 8 HDMI display devices.
Key Features:
4K60 Video Transmission: Supports up to 4K2K@60Hz video resolution for crystal-clear visuals.
Multi-Channel Audio: Compatible with various HDMI audio formats including LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X.
Flexible Switching: Allows switching between 8 input and 8 output channels with ease.
Extensive Connectivity: Features coaxial and analog audio outputs, RS-232, TCP/IP control interfaces, and an IR EXT interface for enhanced flexibility.
Specifications:
Key Features:
Ultra-High Resolution: Supports up to 4K2K@60Hz video, ensuring stunning visuals with minimal latency.
Versatile Audio Support: Handles a wide range of HDMI audio formats including LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X.
Powerful Connectivity: Features 8 HDMI input ports and 8 HDMI output ports, along with analog and coaxial audio outputs for expanded
compatibility
Intuitive Controls: Front panel function keys, IR remote control, and advanced EDID management options make operation easy and flexible.
Flexible Installation: CE/FCC/UL certified with AC 100~240V power supply for global compatibility.
Specifications
HDMI Audio Formats Supported: LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Power Supply: Input: AC 100~240V 50/60Hz, Output: DC 12V/2-3A (US/EU standard, CE/FCC/UL certified)
Specification Parameters
| Product model |
BIT-Ma-U1-MC0808 |
| shell |
metal shell |
| color |
black |
| size |
440mm(L)×200mm(W)×44.5mm(H) |
| weight |
4kg |
| Power supply |
nput:AC100~240V50/60Hz
Output:DC12V/2-3A(US/EUstandard,CE/FCC/ULcertification)
|
| power consumption |
43W |
| operating temperature |
-10°C~45°C/14°F~113°F |
| Storage temperature |
-20°C~60°C/-4°F~140°F |
| Relative humidity |
20~90%RH(non-condensing) |
| Warranty |
One year |
Product Features:
1. Comply with HDMI2.0 and HDCP2.2/1.4 specifications.
2. Video resolution up to 4Kx2K@60Hz.
3. Support 18Gbps video bandwidth.
4. Support Dolby Vision,HDR10+ and HLG.
5. All HDMI output ports support 4K->1080P video scaling function.
6. Supported HDMI audio formats up to 7.1 high-definition audio channels.
7.Support stripping audio from HDMI source to coaxial audio port and analog audio port output.
8.Support dial code for EDID selection.
9.1U rack mount design with front panel LCD display.
10.Control by front panel buttons,infrared remote control,host computer(RS-232andRJ45)
