Product Details:
|
| Model Number: | BIT-Ma-U1-MC0808 | Place Of Origin: | China |
|---|---|---|---|
| Brand Name: | Bitvisus | Control Method: | RS232/RJ45,push-button, IR Remote Control |
| Input Port: | 8xHDMI TypeA,1xIREXT | Output Port: | 8xHDMI TypeA,8xCoax Audio(RCA),8xL/RAudio |
| Resolution: | 4Kx2K@50/60Hz | HDCP Compatibility: | HDCP 2.2/1.4 |
| Video Bandwidth: | 18Gbps | Function: | EDID Function |
| Highlight: | 8 Output HDMI Matrix Switcher,8 Input HDMI Matrix Switcher,2X3 HDMI Video Matrix Switch |
||

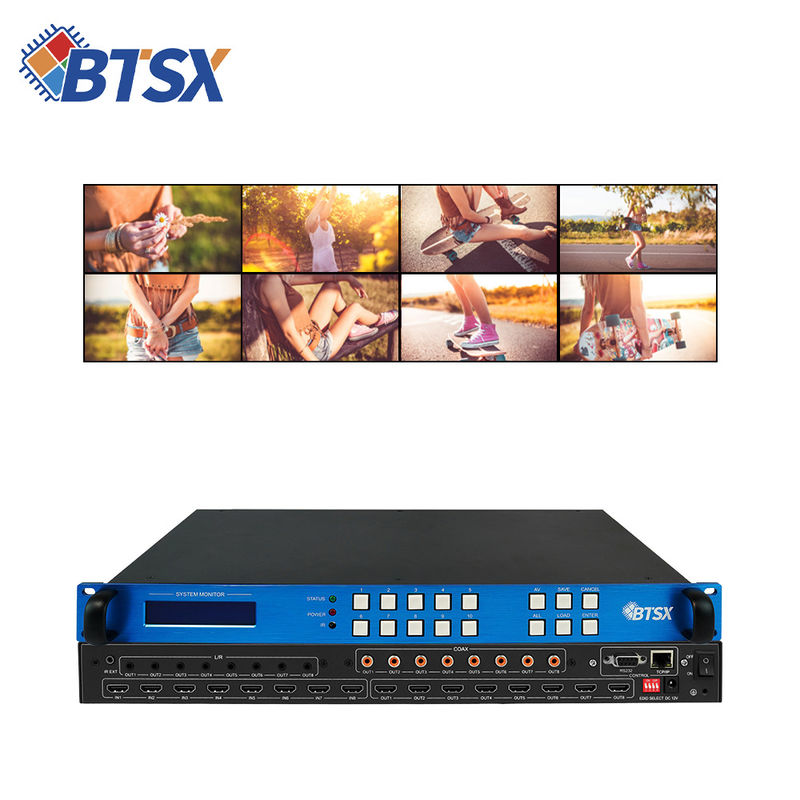

Introducing the BIT-Ma-U1-MC0808, a powerful 8x8 HDMI matrix switcher designed to revolutionize your multimedia experience. This innovative device supports up to 4K2K@60Hz video transmission and multi-channel high-resolution digital audio, making it perfect for applications ranging from multimedia conference halls to home entertainment systems. Each signal is engineered to comply with industry standards, ensuring zero crosstalk, minimal signal attenuation, and perfect output quality.
High-Resolution Support: Experience stunning visuals with support for up to 4K2K@60Hz video resolution.
Multi-Channel Audio: Transmits multiple high-fidelity audio formats including LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X.
8x8 HDMI Matrix: Seamlessly connect up to 8 HDMI sources to 8 HDMI display devices, providing unprecedented flexibility and versatility.
Easy Control: Comes with an intuitive LCD screen for real-time status monitoring and simple control options including scene saving and recalling for quick switching between setups.
Robust Connectivity: Includes both IR and RS-232 control interfaces, TCP/IP networking for remote control, and multiple audio output options like coaxial and analog ports.
Certified Safety: Power supply complies with CE/FCC/UL standards, ensuring safe and reliable operation worldwide.
| Product model | BIT-Ma-U1-MC0808 |
| shell | metal shell |
| color | black |
| size | 440mm(L)×200mm(W)×44.5mm(H) |
| weight | 4kg |
| Power supply |
nput:AC100~240V50/60Hz
Output:DC12V/2-3A(US/EUstandard,CE/FCC/ULcertification)
|
| power consumption | 43W |
| operating temperature | -10°C~45°C/14°F~113°F |
| Storage temperature | -20°C~60°C/-4°F~140°F |
| Relative humidity | 20~90%RH(non-condensing) |
| Warranty | One year |
1. Comply with HDMI2.0 and HDCP2.2/1.4 specifications.
2. Video resolution up to 4Kx2K@60Hz.
3. Support 18Gbps video bandwidth.
4. Support Dolby Vision,HDR10+ and HLG.
5. All HDMI output ports support 4K->1080P video scaling function.
6. Supported HDMI audio formats up to 7.1 high-definition audio channels.
7.Support stripping audio from HDMI source to coaxial audio port and analog audio port output.
8.Support dial code for EDID selection.
9.1U rack mount design with front panel LCD display.
10.Control by front panel buttons,infrared remote control,host computer(RS-232andRJ45)
