Product Details:
|
| Model Number: | BIT-Ma-U1-MC0808 | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Power: | Other | Frequency Range (Hz): | Other |
| Brand Name: | Bitvisius | Input Port: | 8xHDMI TypeA,1xIREXT |
| Output Port: | 8xHDMI TypeA,8xCoax Audio(RCA),8xL/RAudio | HDCP Compatibility: | HDCP 2.2/1.4 |
| Video Bandwidth: | 18Gbps | Operating Temperature: | -10°C~45°C/14°F~113°F |
| Highlight: | 8x8 HDMI Matrix Switcher,HDMI Matrix Switcher IR Control |
||

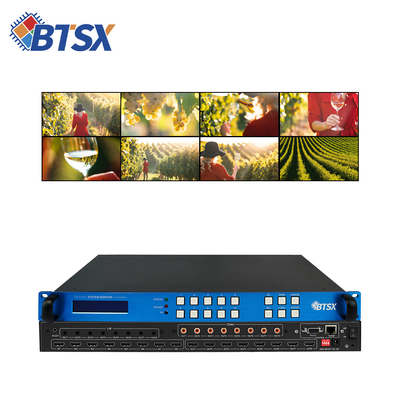

Introducing the BIT-Ma-U1-MC0808, a premium HDMI switcher that revolutionizes multimedia connectivity. Designed for high-performance applications, this matrix switcher supports seamless video transmission up to 4K2K@60Hz and multi-channel high-resolution digital audio from 8 HDMI sources to 8 HDMI displays. Perfect for multimedia conference halls, TV studios, and professional AV setups, the BIT-Ma-U1-MC0808 ensures uncompromised signal quality and flexibility.
High-Resolution Support: Supports up to 4K2K@60Hz video transmission, ensuring crisp and clear visuals for your multimedia content.
Multi-Channel Audio: Supports a wide range of HDMI audio formats, including LPCM 2/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X, for immersive sound experiences.
Signal Integrity: Each signal is meticulously designed to comply with industry standards, eliminating crosstalk, reducing attenuation, and preserving the signal quality throughout the switching process.

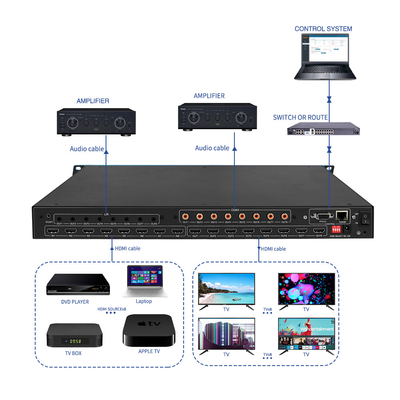

Flexible Connectivity: Equipped with 8 HDMI input and 8 HDMI output ports, enabling seamless integration with various HDMI-enabled devices.
Easy Control: Features an intuitive LCD screen, front panel buttons, IR remote control, and PC-based TCP/IP control for ultimate flexibility and convenience.
| Product model | BIT-Ma-U1-MC0808 |
| shell | metal shell |
| color | black |
| size | 440mm(L)×200mm(W)×44.5mm(H) |
| weight | 4kg |
| Power supply |
nput:AC100~240V50/60Hz
Output:DC12V/2-3A(US/EUstandard,CE/FCC/ULcertification)
|
| power consumption | 43W |
| operating temperature | -10°C~45°C/14°F~113°F |
| Storage temperature | -20°C~60°C/-4°F~140°F |
| Relative humidity | 20~90%RH(non-condensing) |
| Warranty | One year |
1. Comply with HDMI2.0 and HDCP2.2/1.4 specifications.
2. Video resolution up to 4Kx2K@60Hz.
3. Support 18Gbps video bandwidth.
4. Support Dolby Vision,HDR10+ and HLG.
5. All HDMI output ports support 4K->1080P video scaling function.
6. Supported HDMI audio formats up to 7.1 high-definition audio channels.
7.Support stripping audio from HDMI source to coaxial audio port and analog audio port output.
8.Support dial code for EDID selection.

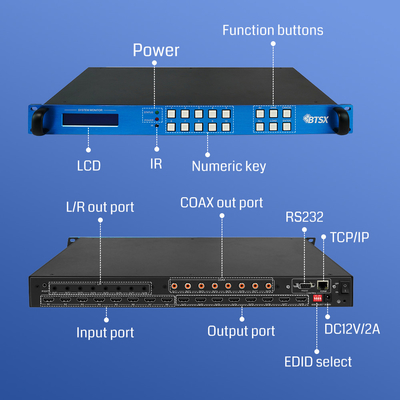

9.1U rack mount design with front panel LCD display.
10.Control by front panel buttons,infrared remote control,host computer(RS-232andRJ45)
