Product Details:
|
Brand Name: | Bitvisus | Model Number: | BIT-Ex-HBT-70 |
---|---|---|---|
Place Of Origin: | Guangdong, China | Private Moldv: | Yes |

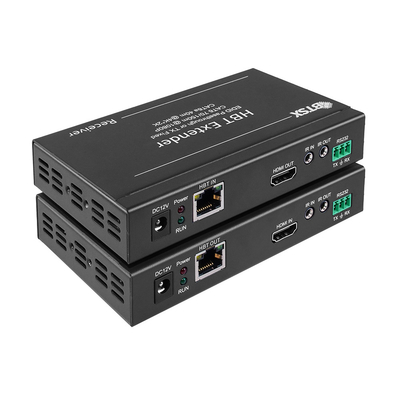

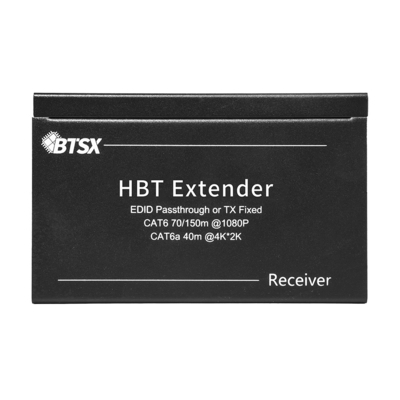

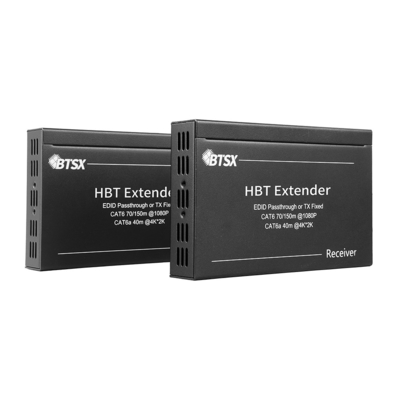

Product Name: | HBT HDMI Extender Video Transmission Equipment | Function: | Extend Transmitting Distance |
Type: | HDMI1.4 / HDMI1.2 | Size: | 135mmx85mmx25mm |
HDMI Version: | HDMI1.4 | Weight: | 0.350kg |
Highlight: | Portable HDBT HDMI Extender,HDBT HDMI Extender CAT60,HDMI Extender 70M |
An Extender Product For Transmitting Hdmi 1.4 Hd Video Signal Through Six Kinds Of Network Cables, Which Can Effectively Extend The Network Transmission Distance And Break The Limit Of Traditional Ethernet Transmission Distance Within 230 Feet.
●Support 4kx2k @ 30hz Resolution Transmission, Downward Compatible With Low Resolution.
●When The Resolution Of Hdmi Interface Is 4kx2k @ 30hz, It Supports Cat.5 Or Cat.6 With A Maximum Length Of 130 Feet.
●The Standard Hbt Transmission Protocol Is Adopted,with Long Transmission Distance,Speed10.2Gbps,Lossless No Compression Of Video Signal,No Delay Clear And Smooth Picture Quality, Reliable Performance, Strong Stability, Low Failure Rate.
●Hbt Standard Supports Power Poe Of Network Cable, And Only Needs To Supply 12v Power For A Single (tx / Rx) Hbt Device.
●Adopt Full Hardware Design Architecture, Plug And Play, Without Any Software Driver.
●Worry-free After-sale, One-year Warranty, Lifetime After-sale
BIT-E x-HDBT-70 | ||

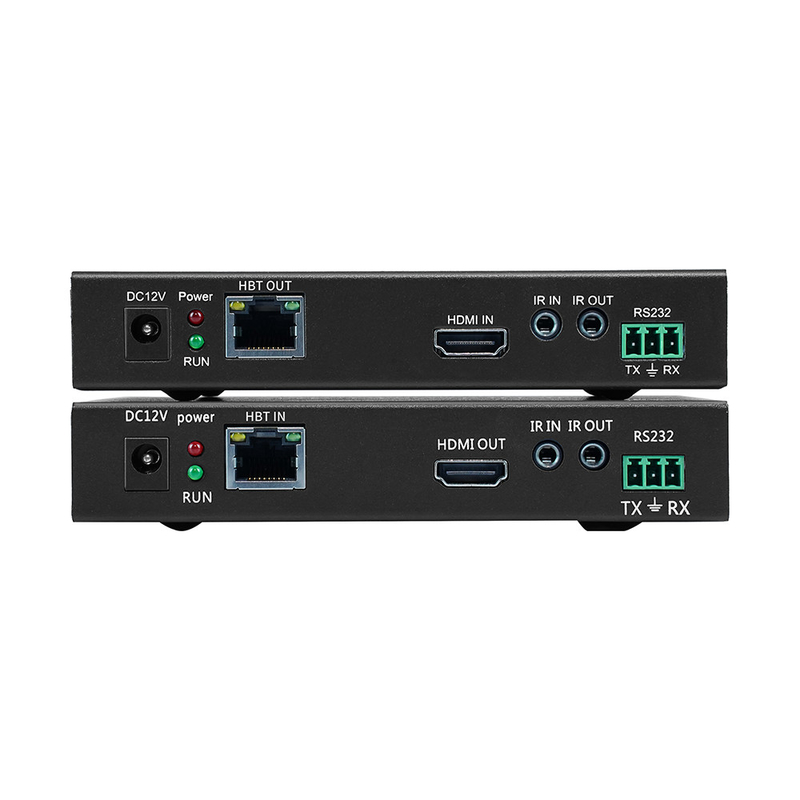

import | transmitting terminal (TX) | HDMI 1.4 (5m), IR, RS232 signal |
receiving terminal (RX) | CAT 6E,70m | |
output | transmitting terminal (TX) | CAT 6E,70m |
receiving terminal (RX) | HDMI 1.4 (5m), IR, RS232 signal | |
audio frequency | HDMI, the audio comes out with you | |
other | Support resolution |
4K30H z downward compatibility; 7680x1200@30,5760X1200@30,7680X1080@30 |
signal format | Support common resolution in various input signal formats; support common signal formats for VESA and HDTV | |
Color space | Support for RGB444; YUV color space | |
Pixel bandwidth | 165 MHz / 300 MHz, full number | |
Transmission bandwidth | 10.2G bps | |
transmission distance |
1080p resolution CAT 6,70m 4k 30 resolution CAT 6 E, 40m |
|
CEC | support | |
RS232/IR | bidirectional RS232 transmission / bidirectional IR | |
3D | support | |
POE supply electricity | One-way power supply | |
Interface protocol | HDMI 1.4, HDCP 2.2 is compatible with DVI 1.0, VGA | |
EDID Solid transmission / through transmission |
support | |
OEM | support | |
source | DC 12V 2A | |
power dissipation | ≤12W | |
Storage / operating temperature | -10~50ºC/-25~55ºC | |
use | The HDMI, KVM, IR, and RS232 signal was prolonged | |
specifications | size | 105*76*27mm |
weight | About 0.5KG | |
packing list | Equipment * 2, power supply * 1, certificate * 1, warranty card * 1 | |
after-sale service | The warranty is 1 year |
