Product Details:
|
| Model Number: | BIT-MV-4K60-401 | Brand Name: | Bitvisus |
|---|---|---|---|
| Product Name: | 4K Multiviewer Screen Splitter | HDMI Output: | 1 X HDMI2.0, 3840x2160@60Hz |
| HDMI Input: | 4 X HDMI1.3, 1920x1080@60Hz | Size: | 233mm*108mm*28.7mm |
| Function: | Picture Segmenter | Control Mode: | Remote Control, Button, RS232 |
| Package Contents: | Power Cable, HDMI Cable, Remote Controls, Device | Certificate: | HDMI, EMC, CE, SGS, HDMI, Verified |
| Highlight: | 4K60 HDMI Multi Viewer,Remote Control HDMI Multi Viewer,Audio Video Screen Splitter |
||
Introducing the BIT-MV-4K60-401, an ultra-high-performance image segmentation processor tailored for demanding visual applications. Equipped with a cutting-edge high-definition processing chip, this innovative device seamlessly supports both 1080P signal input and stunning 4K60/1080P signal output, leveraging HDMI interfaces for both input and output, ensuring seamless connectivity and unparalleled image quality.
Ideal for a wide array of compact yet sophisticated projects, the BIT-MV-4K60-401 excels in environments such as playrooms, multi-screen surgical theaters fostering precision, modern studios embracing creativity, multimedia gymnasiums enhancing interactive experiences, and game rooms delivering immersive entertainment.
Versatile Connectivity: Boasting 4 HDMI inputs, it accommodates multiple video sources with ease, supporting an input resolution of 1920x1080@60Hz and a maximum pixel frequency of 165MHz, ensuring crisp, lag-free visuals.
Future-Proof Output: A single HDMI output delivers exceptional versatility, supporting both 1920x1080@60Hz for compatibility with existing setups and a stunning 3840x2160@60Hz for 4K Ultra HD experiences. With a maximum video pixel frequency of 594MHz, it pushes the boundaries of visual clarity.
Long-Range Capability: Designed for flexibility, the output interface extends your visual experience up to 10 meters, making it an ideal choice for installations requiring extended cable runs without compromising on image quality.
| Product Name | BIT-MV-4K60-401 |
| Input interface maximum video pixel frequency | 165MHz |
| Output interface maximum video pixel frequency | 594MHz |
| Input maximum resolution | 1920x1080@60Hz |
| Maximum output resolution | 3840x2160@60Hz |
| HDMI input interface | 4 x HDMI1.3 |
| HDMI output interface | 1 x HDMI2.0 |
| Control Mode | Remote Control, Button, RS232 |
| Factory default resolution | 1920x1080@60Hz |
| Input connector type | 4 HDMI inputs |
| Output interface type | 1 HDMI output |

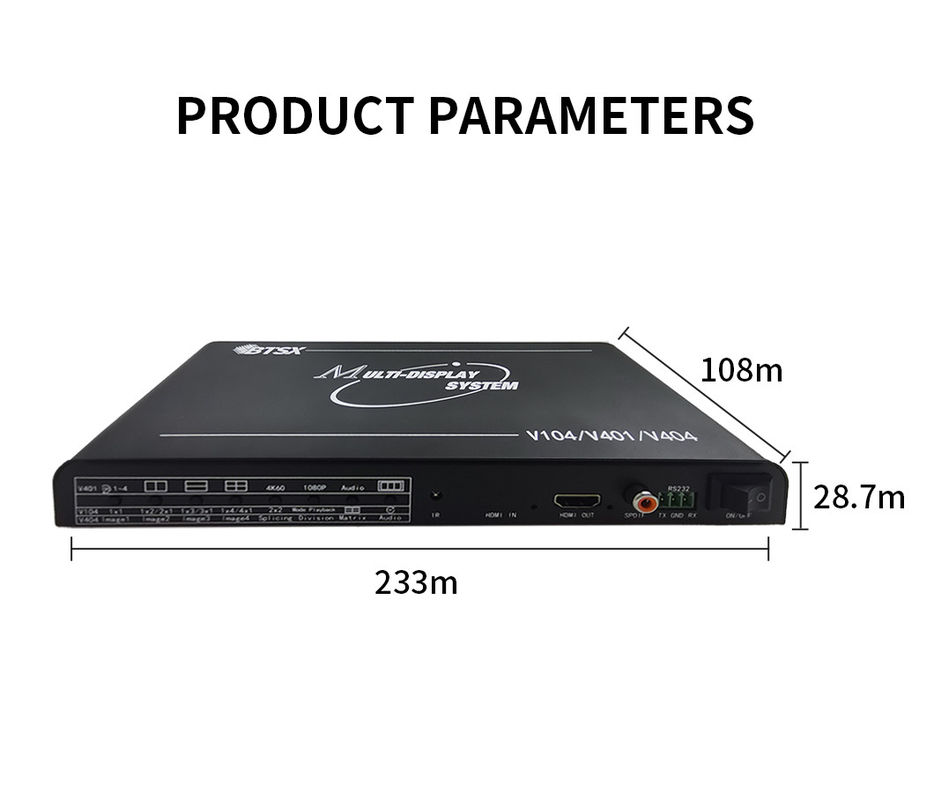

| Size | Length, Width, Height (233mm*108mm*28.7mm) |
| Weight | 1.8KG |
| Power Supply | 12V@2A AC-DC power supply |
| Warranty | one year |
Product Features
1. The input supports HDMI 1.3, HDCP 1.4;
2. Supports single-screen rotation, left-right screen splitting, top-bottom screen splitting, four-screen splitting, equal-ratio splitting, one big and three small splits;
3. Pure hardware design, plug and play, no software required;
4. Support seamless switching and overall brightness adjustment;
5. Support button control, remote control, serial port control;
6. Support audio channel switching, audio separation;
7. Low power consumption, energy saving and environmental protection design, the internal use of conduction heat dissipation,
without any external heat dissipation measures, reliable sex is very high.
