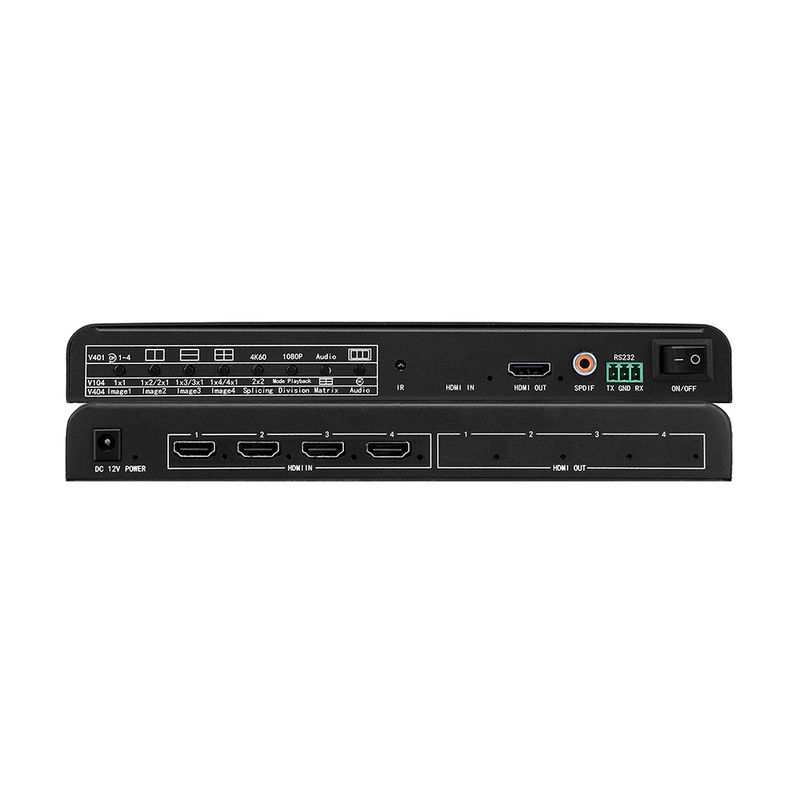

Product Details:
|
| Place Of Origin: | Guangdong, China | Private Mold: | Yes |
|---|---|---|---|
| Brand Name: | Bitvisus | Model Number: | BIT-MV-4K60-401 |
| HDMI Input Interface: | 4 X HDMI1.3 | HDMI Output Interface: | 1 X HDMI2.0 |
| Size: | Length, Width, Height (233mm*108mm*28.7mm) | Factory Default Resolution: | 1920x1080@60Hz |
| Power Supply: | 12V@2A AC-DC Power Supply | Maximum Output Resolution: | 3840x2160@60Hz |
| Highlight: | 4k HDMI Multi Viewer Switcher,OEM HDMI Multi Viewer Switcher,Video Screen 4k HDMI Multiviewer |
||
Product Differentiation:
The BIT-MV-4K60-401 stands out in the market by offering a unique blend of high-performance image segmentation processing capabilities with a focus on versatility and ease of use. Unlike other processors in its class, the BIT-MV-4K60-401 boasts:
Advanced Image Processing Algorithms: Integrated with proprietary image processing algorithms, it enhances colors, contrasts, and details to deliver a more lifelike and immersive viewing experience.
Real-Time Image Adjustment: Enables users to make real-time adjustments to image settings, such as brightness, contrast, and saturation, without interrupting the video flow.
Flexible Configuration Options: Offers a range of customizable settings and configurations, allowing users to tailor the processor's performance to their specific needs and preferences.
Compact & Efficient Design: Designed for space-saving installations, the BIT-MV-4K60-401 combines a sleek form factor with powerful processing capabilities, making it an ideal choice for projects with limited space.
| Product Name | BIT-MV-4K60-401 |
| Input interface maximum video pixel frequency | 165MHz |
| Output interface maximum video pixel frequency | 594MHz |
| Input maximum resolution | 1920x1080@60Hz |
| Maximum output resolution | 3840x2160@60Hz |
| HDMI input interface | 4 x HDMI1.3 |
| HDMI output interface | 1 x HDMI2.0 |
| Control Mode | Remote Control, Button, RS232 |
| Factory default resolution | 1920x1080@60Hz |
| Input connector type | 4 HDMI inputs |
| Output interface type | 1 HDMI output |
| Size | Length, Width, Height (233mm*108mm*28.7mm) |
| Weight | 1.8KG |
| Power Supply | 12V@2A AC-DC power supply |
| Warranty | one year |
Product Features
1. The input supports HDMI 1.3, HDCP 1.4;
2. Supports single-screen rotation, left-right screen splitting, top-bottom screen splitting, four-screen splitting, equal-ratio splitting, one big and three small splits;
3. Pure hardware design, plug and play, no software required;
4. Support seamless switching and overall brightness adjustment;
5. Support button control, remote control, serial port control;
6. Support audio channel switching, audio separation;
7. Low power consumption, energy saving and environmental protection design, the internal use of conduction heat dissipation,
without any external heat dissipation measures, reliable sex is very high.
