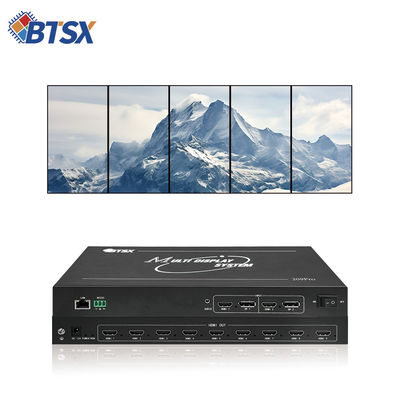

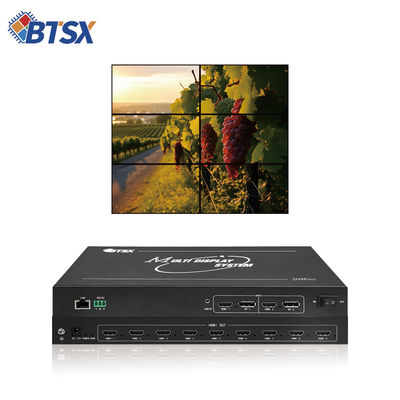

BIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel Management

BIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel Management
Basic Properties
Country Of Origin
China
Brand Name
Bitvisus
Certificate
CE,HDMI,HDCP,RoHS,FCC
PRODUCT MODEL
BIT-MSE-209Pro
Trading Properties
MOQ
1Piece
Unit Price
Contact Us
Payment Method
Paypal, T/T,
Supply Capacity
1000Piece/30day
Product Summary

BIT-MSE-209Pro Industrial-Grade Multi-Desktop & Multi-Channel HDMI/DP Matrix Switcher Introducing the BIT-MSE-209Pro, an industrial-strength high-performance KVM (Keyboard, Video, Mouse) switch designed exclusively for seamless integration of multi-desktop operation and multi-channel project ...

Product Details
Highlight:

HDMI KVM Switch Multi Desktop

,

HDMI KVM Switch Multi Channel
Product Name: BIT-MSE-209Pro
Input Interface: 2-way HDMI 2.0/DP 1.2(choose One Of Two)
HDCP Features: HDCP 2.2 Is Supported
Resolution: 4Kx2K@60H
Input: 2 HDMI 2.0/DP 1.2
Output: 9 HDMI 1.3
Power Supply: DC 12V/2A
Power Consumption: 22W
Products Size: 30*14.2*3.5cm
Warranty: 3 Years
Product Description

BIT-MSE-209Pro Industrial-Grade Multi-Desktop & Multi-Channel HDMI/DP Matrix Switcher


Introducing the BIT-MSE-209Pro, an industrial-strength high-performance KVM (Keyboard, Video, Mouse) switch designed exclusively for seamless integration of multi-desktop operation and multi-channel project management. This cutting-edge solution leverages HDMI/DP input and HDMI output interfaces, empowering users to manage up to 2 inputs and 9 outputs with unparalleled flexibility and efficiency.


BIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel Management



Key Features:

  1. Versatile Connectivity: Supports a maximum of 2 inputs and 9 outputs, allowing for flexible combinations across 9 screens. Ideal for complex multi-monitor setups.

  2. High-Resolution Support: Single input channel supports a maximum resolution of 3840x2400@60Hz, ensuring crisp visuals. Output single channel maxes out at 1920x1200@60Hz, downward compatible with conventional resolutions, including customized special resolutions.

  3. Fixed EDID Design: Customizable input resolution for tailored display settings, ensuring compatibility with a wide range of devices.

  4. Seamless Display Modes: Supports 1xN, Nx1, NxN, point-to-point, no stretch, no deformation, and zero compression for crystal-clear picture quality.

  5. Low Latency & Real-Time Processing: Equipped with an imported 28mm high-end programmable FPGA chip, delivering full hardware real-time processing architecture for ultra-fast speeds and zero delay.

  6. Rugged & Reliable: Designed for harsh environments, featuring superior anti-static protection and active air cooling for heat dissipation. Wide operating temperature range ensures stable performance.

  7. Diverse Application Scenarios: Compatible with computers, Android boxes, game consoles, and more, making it the perfect choice for a variety of video extenders or splitters in complex scenarios.

  8. Strong Compatibility: Seamlessly integrates with various devices, ensuring a smooth user experience across multiple platforms and applications.



BIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel ManagementBIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel ManagementBIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel ManagementBIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel ManagementBIT-MSE-209Pro HDMI KVM Switch Multi Desktop Multi Channel Management



Product name BIT-MSE-209Pro
Input Input interface 2-way HDMI 2.0/DP 1.2(choose one of two)
HDCP features HDCP 2.2 is supported
Transmission distance ≤5 meters
Enter the highest pixel clock 600MHz
Input single-port resolution 3840x2160@60Hz/3840x2400@60Hz
5760x3240@30Hz/7680x2160@30Hz
(4Kx2K@60Hz Resolution within bandwidth)
Input color format RGB888,24bit
Output Output port 9-way HDMI 1.3
Transmission distance ≤15 meters
Output the highest pixel
clock		 165M
Output single mouth

resolution		 1920x1080@60Hz

1920x1200@60Hz
(customizable)
Output color format RGB888,24bit
Audio Audio output HDMI output,3.5mm audio port (audio
separation
Specifi

cations		 Power supply DC 12V/2A
Maximum power
consumption		 22W
Storage/working
temperature		 -10 to 50°C/0 to 50°C
Product dimensions Length 300mm*width 142mm*height 35mm
Package weight (net weight
of equipment)		 1.8 KG
List of accessories 12V/2A power supply *1,HDMI/DP cable *2,
certificate*1,warranty card*1
Others After sales service 3 years warranty
