Product Details:
|
Brand Name: | Bitvisus | Model Number: | BIT-Ex-Fib-IP-4K-KVM |
---|---|---|---|
Transmission Technology: | Fiber Optic | Maximum Transmission DistanceDistance: | 30 Kilometers |
Video Interface: | HDMI | Maximum Supported Resolution: | 3840x2160@30Hz |
USB Ports: | 2x USB 2.0 Ports For Keyboard And Mouse | Type: | KVM Extender |
Power Consumption: | Low Power | Transmission Medium: | Optical Fiber |
Highlight: | Uncompressed HDMI Fiber Extender,Zero Delay HDMI Fiber Extender,KVM Over Fiber Transmitter |

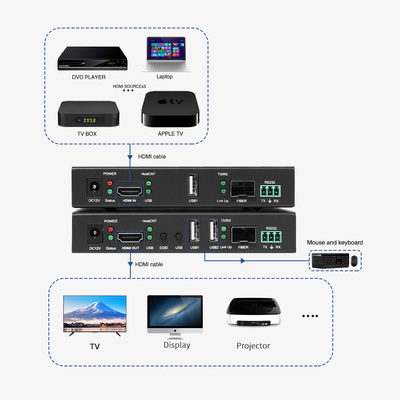

The BIT-Ex-Fib-IP-4K-KVM stands apart as a pioneering Ultra-High-Definition (UHD) Fiber Video Extender, revolutionizing uncompressed, lag-free long-haul transmission of multimedia signals. It seamlessly conveys video, audio, USB-KVM (keyboard, video, mouse control), and RS232 data over robust fiber optic cables, offering a maximum transmission reach of 30 kilometers (officially certified up to 10KM via HDMI 1.4) that sets it apart from competitors.

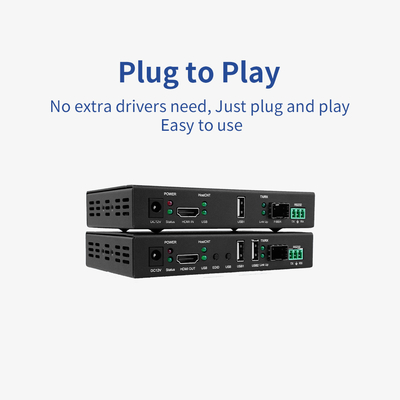

Designed for the future, this extender supports stunning 4K resolutions at 3840x2160@30Hz, while gracefully accommodating lower resolutions for backward compatibility. Its industrial-grade construction underscores its resilience, ensuring reliable operation in demanding environments. Installation is a breeze, offering a true plug-and-play experience without the hassle of software drivers, making it a favorite among professionals.
What truly differentiates the BIT-Ex-Fib-IP-4K-KVM is its advanced feature set, including EDID emulation for seamless display compatibility, bidirectional RS232 communication for remote device control, and comprehensive USB-KVM capabilities that empower remote management and control from a single point. These features, combined with its exceptional transmission capabilities, position the BIT-Ex-Fib-IP-4K-KVM as the go-to solution for a diverse range of applications, from high-end retail spaces and sports arenas to grand exhibition centers, immersive theme parks, and sophisticated conference setups where every detail matters.
BIT-Ex-Fib-IP-4K-KVM | ||
Input | Transmitter(TX) | HDMI 1.4(≤5m),IR,RS232 signal |
Receiver(RX) | LC-LC single-mode single-core fiber,10KM | |
output | Transmitter(TX) | LC-LC single-mode single-core fiber,10KM |
Receiver(RX) | HDMI1.4(≤5m),IR,RS232 signal | |
audio | HDMI audio out | |
other | Supported resolution | 4K30Hz is backward compatible with standard resolutions |
Signal format | Support common resolutions under various input signal formats ;support common signal formats of VESA and HDTV |
|
color space | Support RGB444;YUV color space | |
Pixel bandwidth | 297MHz | |
Transmission bandwidth |
1.25Gbps | |
Transmission distance |
10KM | |
through the switch | Support one-to-one,one-to-many(up to 32)optional (PS:All-gigabit smart switch,supports port MAC address binding,each port requires 800MBPS of bandwidth,and the port is not recommended to be full) |
|
EDID learning | support | |
KVM | USB 2.0,keyboard and mouse,U disk,radar,infrared touch,printer,etc. |
|
CEC | support | |
RS232 | Two-way RS232 transparent transmission | |
3D | support | |
Remote wake up | support | |
Interface Protocol | HDMI1.4,HDCP1.4 compatible with DVI1.0,VGA | |
OEM | support | |
power supply | DC 12V 2A | |
Power consumption | ≤6W | |
Storage/operating temperature |
-10~50℃/-25~55℃ | |
use | HDMI,KVM,RS232 signal extension | |
Specification | size | 105*76*27mm |
weight | About 0.5KG | |
packing list | Equipment*2,power supply*2,double-ended USB cable*1,single-mode single-core optical module *2, certificate *1,warranty card*1 |
|
After-sales service | I year warranty |
