Product Details:
|
EDID Learning: | Yes, Supports Reading Display EDID | Brand Name: | Bitvisus |
---|---|---|---|
Model Number: | BIT-Ex-Fib-IP-4K-KVM | Size: | 105*76*27mm |
Product Name: | Fiber Optic Extender | Transmission Distance: | 20KM |
Selling Units: | Single Item | Support: | OEM/ODM |
Power Consumption: | 6W | Weight: | About 0.5KG |
Highlight: | OEM HDMI Fiber Extender,HDMI Fiber Extender KVM,RS232 4k Video Transmitter |
☞Ultra-high-definition picture 4k30Hz, choose the industry's most advanced video processing chip, transmission distance, low power
consumption.
☞Support the farthest transmission distance of 20 km, HDMI interface input and output.
☞Support resolution customization, the highest supported resolution up to 3840x2160@30Hz, backward compatible with low resolution.
☞Support bidirectional RS232 communication function.
☞Support USB-KVM function, dual USB interface to connect the mouse and keyboard.
☞Learning EDID, read the monitor EDID for easy use.
☞Support zero delay, uncompressed long-distance transmission, easy to install, simple operation, plug and play.

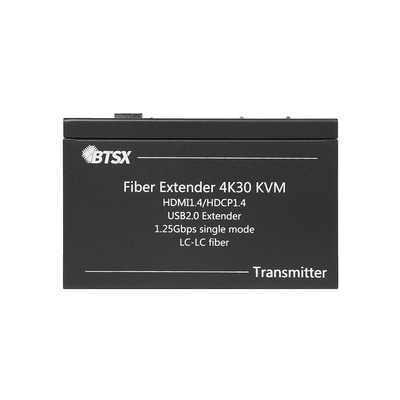

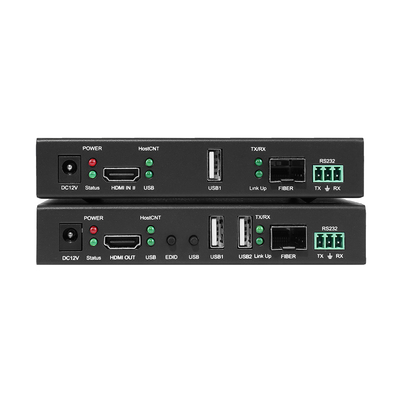

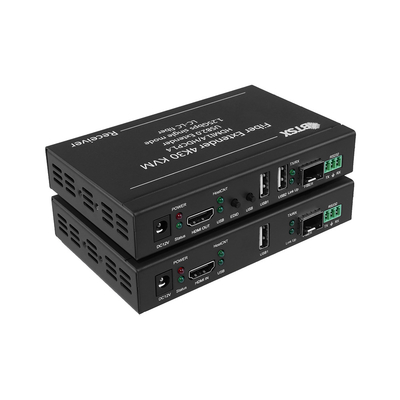

BIT-Ex-Fib-IP-4K-KVM | ||
Input | Transmitter(TX) | HDMI 1.4(≤5m),IR,RS232 signal |
Receiver(RX) | LC-LC single-mode single-core fiber,10KM | |
output | Transmitter(TX) | LC-LC single-mode single-core fiber,10KM |
Receiver(RX) | HDMI1.4(≤5m),IR,RS232 signal | |
audio | HDMI audio out | |
other | Supported resolution | 4K30Hz is backward compatible with standard resolutions |
Signal format | Support common resolutions under various input signal formats ;support common signal formats of VESA and HDTV |
|
color space | Support RGB444;YUV color space | |
Pixel bandwidth | 297MHz | |
Transmission bandwidth |
1.25Gbps | |
Transmission distance |
10KM | |
through the switch | Support one-to-one,one-to-many(up to 32)optional (PS:All-gigabit smart switch,supports port MAC address binding,each port requires 800MBPS of bandwidth,and the port is not recommended to be full) |
|
EDID learning | support | |
KVM | USB 2.0,keyboard and mouse,U disk,radar,infrared touch,printer,etc. |
|
CEC | support | |
RS232 | Two-way RS232 transparent transmission | |
3D | support | |
Remote wake up | support | |
Interface Protocol | HDMI1.4,HDCP1.4 compatible with DVI1.0,VGA | |
OEM | support | |
power supply | DC 12V 2A | |
Power consumption | ≤6W | |
Storage/operating temperature |
-10~50℃/-25~55℃ | |
use | HDMI,KVM,RS232 signal extension | |
Specification | size | 105*76*27mm |
weight | About 0.5KG | |
packing list | Equipment*2,power supply*2,double-ended USB cable*1,single-mode single-core optical module *2, certificate *1,warranty card*1 |
|
After-sales service | I year warranty |
