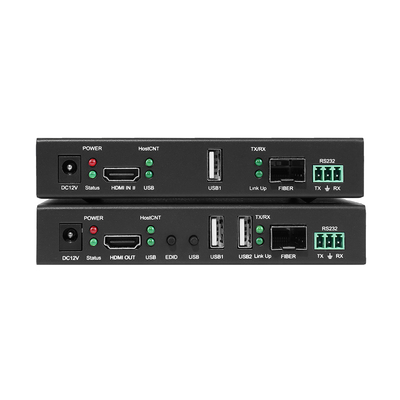

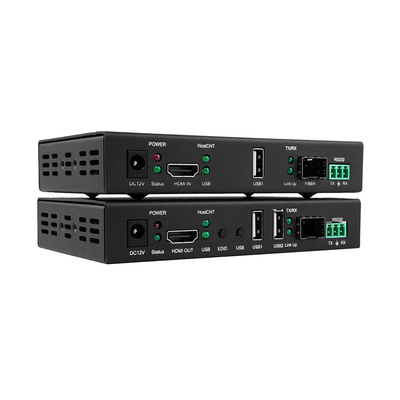

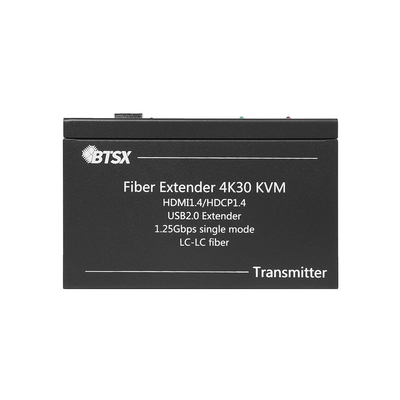

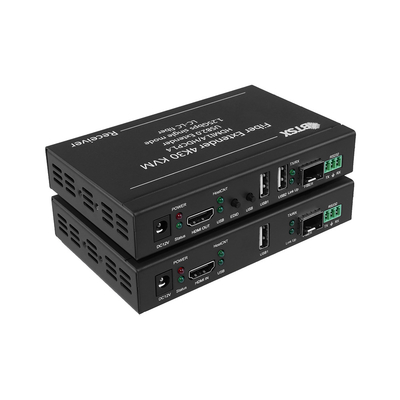

Product Details:
|
Place Of Origin: | China | Model Number: | BIT-Ex-Fib-IP-4K-KVM |
---|---|---|---|
Brand Name: | Bitvisus | EDID Learning: | Yes, Supports Reading Display EDID |
Size: | 105*76*27mm | Interface Protocol: | HDMI1.4/HDCP1.4 Compatible With DVI 1.0/VGA |
Selling Units: | Single Item | Transmission Distance: | 20KM |
Support: | OEM/ODM | Power Consumption: | 6W |
Highlight: | UHD EDID HDMI Extender,EDID HDMI Extender 20Km,KVM HDMI Over Fiber Extender |
This groundbreaking product boasts breathtaking ultra-high-definition visuals at 4K30Hz, leveraging state-of-the-art video processing technology that guarantees low power consumption during extended, long-distance transmissions spanning up to 20 kilometers. Offering unparalleled flexibility, it supports customizable resolutions reaching the pinnacle of 3840x2160@30Hz, ensuring seamless compatibility with a wide range of devices, including those with lower resolutions.
Equipped with cutting-edge features, this product enables bidirectional RS232 communication for robust remote control and monitoring capabilities, as well as USB-KVM functionality that streamlines device management through dual USB ports for mouse and keyboard connection. The innovative EDID learning feature automatically configures display settings for optimal performance, ensuring seamless integration into any system.
Experience unparalleled performance with its zero-delay, uncompressed transmission technology that maintains pristine image and audio quality over vast distances. Designed for user convenience, its plug-and-play architecture eliminates complex installation procedures, allowing for swift and straightforward deployment even by non-technical personnel.
We invite you to engage in personalized consultations with our team, where we tailor our solutions to precisely match your unique project requirements, ensuring unparalleled satisfaction and success.
☞Ultra-high-definition picture 4k30Hz, choose the industry's most advanced video processing chip, transmission distance, low power
consumption.
☞Support the farthest transmission distance of 20 km, HDMI interface input and output.
☞Support resolution customization, the highest supported resolution up to 3840x2160@30Hz, backward compatible with low resolution.
☞Support bidirectional RS232 communication function.
☞Support USB-KVM function, dual USB interface to connect the mouse and keyboard.
☞Learning EDID, read the monitor EDID for easy use.
☞Support zero delay, uncompressed long-distance transmission, easy to install, simple operation, plug and play.
BIT-Ex-Fib-IP-4K-KVM | ||
Input | Transmitter(TX) | HDMI 1.4(≤5m),IR,RS232 signal |
Receiver(RX) | LC-LC single-mode single-core fiber,10KM | |
output | Transmitter(TX) | LC-LC single-mode single-core fiber,10KM |
Receiver(RX) | HDMI1.4(≤5m),IR,RS232 signal | |
audio | HDMI audio out | |
other | Supported resolution | 4K30Hz is backward compatible with standard resolutions |
Signal format | Support common resolutions under various input signal formats ;support common signal formats of VESA and HDTV |
|
color space | Support RGB444;YUV color space | |
Pixel bandwidth | 297MHz | |
Transmission bandwidth |
1.25Gbps | |
Transmission distance |
10KM | |
through the switch | Support one-to-one,one-to-many(up to 32)optional (PS:All-gigabit smart switch,supports port MAC address binding,each port requires 800MBPS of bandwidth,and the port is not recommended to be full) |
|
EDID learning | support | |
KVM | USB 2.0,keyboard and mouse,U disk,radar,infrared touch,printer,etc. |
|
CEC | support | |
RS232 | Two-way RS232 transparent transmission | |
3D | support | |
Remote wake up | support | |
Interface Protocol | HDMI1.4,HDCP1.4 compatible with DVI1.0,VGA | |
OEM | support | |
power supply | DC 12V 2A | |
Power consumption | ≤6W | |
Storage/operating temperature |
-10~50℃/-25~55℃ | |
use | HDMI,KVM,RS232 signal extension | |
Specification | size | 105*76*27mm |
weight | About 0.5KG | |
packing list | Equipment*2,power supply*2,double-ended USB cable*1,single-mode single-core optical module *2, certificate *1,warranty card*1 |
|
After-sales service | I year warranty |
