4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor

4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor
4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor 4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor 4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor 4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor 4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor

Large Image :  4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-MV-U1-MD403
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Contact Us
Packaging Details: Packing box(540mm x 290mm x 110mm/1 piece)
Delivery Time: 7-30day
Payment Terms: Paypal, HSBC, T/T,Visa
Supply Ability: 1000Piece/30day

4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor

Description
Brand Name: Bitvisus Place Of Origin: Guangdong, China
Model Number: BIT-MV-U1-MD403 Input Supports Maximum Resolution: 4096x2160@60Hz
Output Ports: 3x HDMI 2.0 (1 Loop-out) Audio: HDMI Audio Follow, 3.5mm Audio Separation
Power Supply: (Specifics To Be Added From The Document) Product Size: Length X Width X Height: 483mm X 176.2mm X 44.5mm
Package Size: Length X Width X Height: 540mm X 290mm X 110mm Private Mold: NO
Highlight:

PIP Audio Video Matrix Switcher

,

KVM Audio Video Matrix Switcher

Bitvisus 4K60 PIP Seamless Switching Matrix Switcher LCD KVM Multi-Picture Split Processor



BIT-MV-U1-MD403 is an advanced KVM (Keyboard, Video, Mouse) multi-viewer processor tailored for professional-grade video processing and control. This device boasts a remarkable capability to concurrently showcase multiple high-definition images on ultra-high-definition 4K60 displays, encompassing flat-panel TVs and projectors, facilitating seamless integration in diverse sectors including security monitoring, broadcasting, and control rooms.

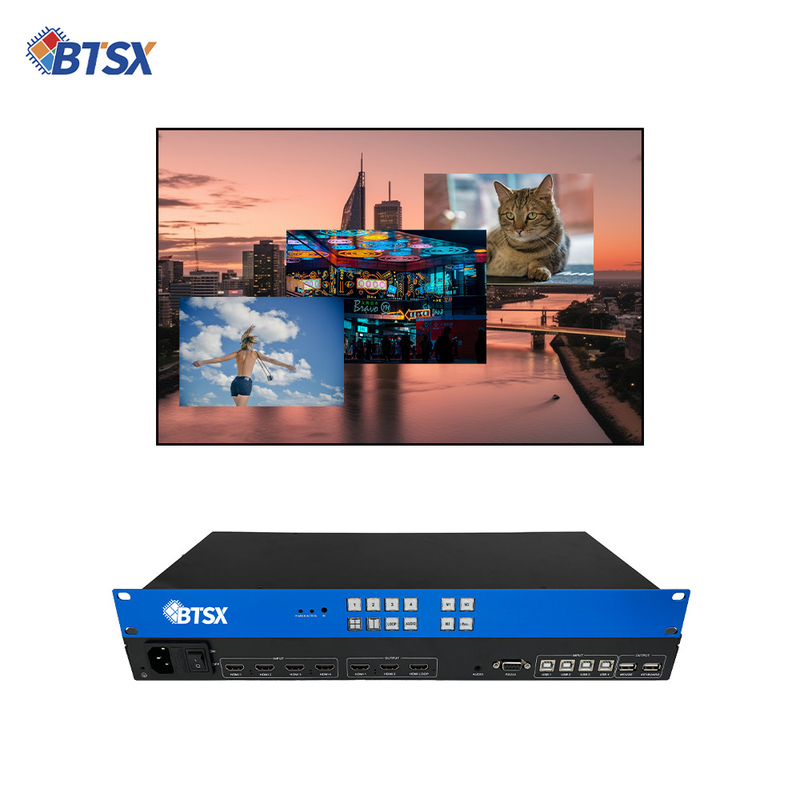

4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor 0



Function of 4k60 4k60 Multi Viewer for 4 In 3 Out KVM Control and PIP



Supports 4-way HDMI 2.0 signal input and 3-way HDMI 2.0 signal output;
Supports 4-way computer USB/BM input and 2-way USB/AM mouse and keyboard output;
Supports 11 conventional resolution outputs, such as 3840x2160P60, 4096x2160P60, 1920x1200P60, 1920x1080P60, etc.;
Supports any combination of multiple windows such as dual-screen simultaneous display of 4 windows, 3 windows, 2 windows, single window, etc.;
Supports dual-screen different display 2 Window, single window and other window combination modes;
Supports controlling window size, PIP transparency, signal source switching, etc. through mouse and keyboard;
Supports asynchronous or synchronous operation of 4 computers with one set of mouse and keyboard;
Supports mouse, key, infrared remote control, can switch signal full screen, 4 screens, 2 screens, scene call, loop audio output and video loop switching, loop change output resolution;
Adopts pure hardware structure design, no operating system, the whole system is completely closed operation, does not require computer and startup software, etc., very simple, good stability, high output graphics quality;
No system or WEB control software is required, only mouse and keyboard can be used to quickly switch all signals and realize the individual scaling of each window.

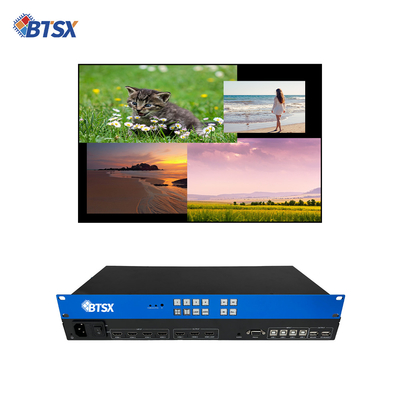

4K60 PIP Audio Video Matrix Switcher LCD KVM Multi Picture Split Processor 1





4k60 Multi Viewer for 4 In 3 Out KVM Control and PIP



product name

BIT-MV-U1-MD403

Inport Put

4xHDMI 2.0

Input supports maximum resolution

4096x2160@60Hz

Output Interface

3xHDMI 2.0(One of the loops)

Supported Output Resolutions

4096x2160P60Hz,4096x2160P30Hz,3840x2160P60Hz,3840x2160P30Hz,2560x1600P60Hz,2560x1440P60Hz,

2560x1080P60Hz,2048x1152P60Hz,1920x1440P60Hz,1920x1200P60Hz,1920x1080P60Hz

control method

Keyboard and mouse, remote control, panel buttons,RS232

Audio

HDMI audio follow, 3.5mm audio separation

Product Size

LxWxH:483mm x 176.2mm x 44.5mm

Package Size

LxWxH:540mm x 290mm x 110mm

Package weight

2.3KG

Power Supply

220V

Parts List

220V power cable x1, remote control x1
