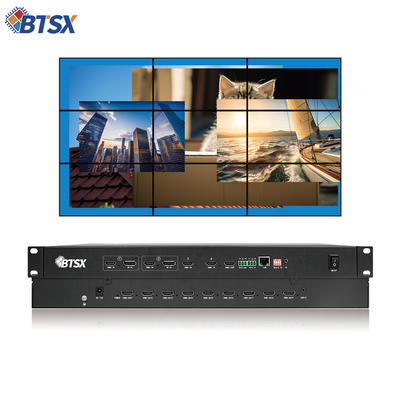

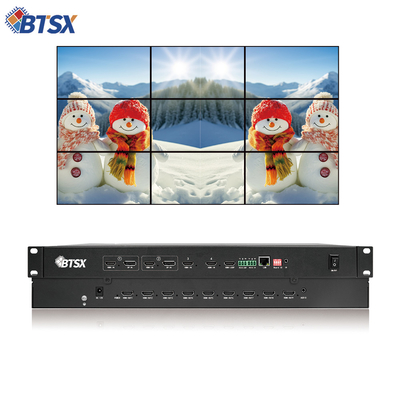

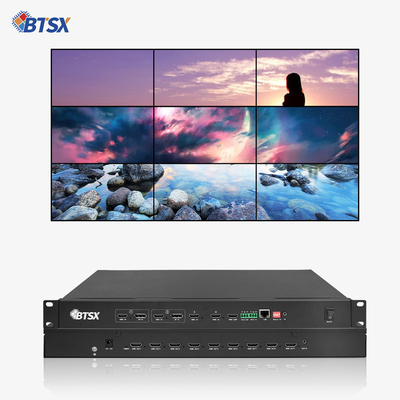

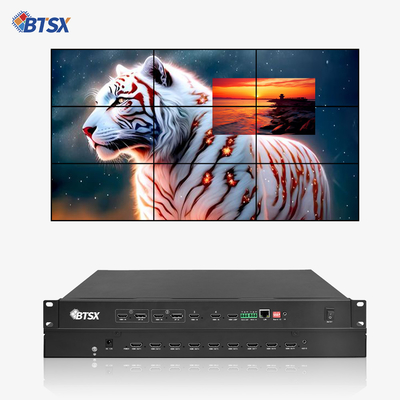

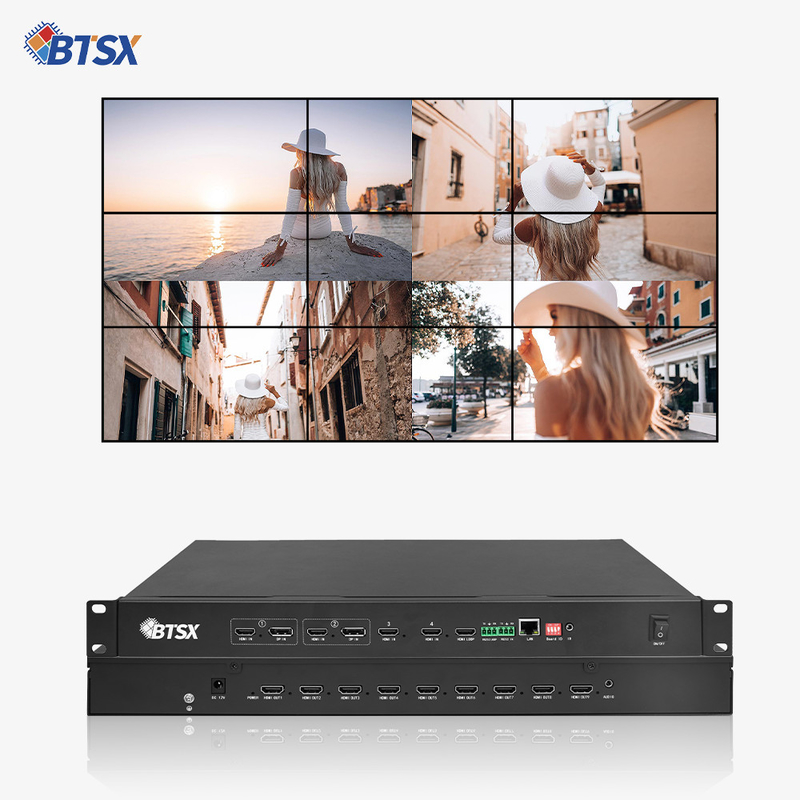

BIT-VP-U1-IC409Pro 3x3 LCD LED Video Wall Controller 4096x2160@60Hz Resolution

Bitvisus 4K60 arbitrary picture overlay HDMI switcher multiviewer video matrix video processor

BIT-VP-U1-IC409Pro Video Wall Controller summarize

BIT-VP-IC409Pro is a newly launched ultra-high-definition splicing processor by Bit Video, which can display multiple dynamic images on multiple screens, and simultaneously realize 4-channel signal input switching, 9-channel output port expansion and splicing Function

BIT-VP-U1-IC409Pro Video Wall Controlle Product Details

1,Supports 4 channels of 4K*2K@60 input,each input port burns different resolutions,and supports EDID management;
2,Supports multi-window control,can realize various functions such as POP tile mode,PIP overlay mode,arbitrary picture overlay,roaming,cross-screen,zoom,etc;
3,Flexible control (infrared remote control, RS232 serial port control,TCP/IP control methods);
4,One key to switch the signal source,Supports seamless real-time switching of signals;
5,Supports 16 splicing modes such as horizontal screen,vertical screen,etc;
6,Support DHCP,Support input can be rotated 90°,180°,270°,and the first line of output can be rotated 180°;
7,Supports image effect color,saturation and other parameter adjustment functions;
8,Audio separation (3.5mm audio port) + audio follow out;
9,With screen freezing function and screen mirroring function,gamma mode and panel.
Typical application
Mainly used in ultra-high-definition video surveillance,ultra-large screen walls,large advertising screens in stores,large exhibition screens and other industry applications.



Specification



Product name	3x3 4K60 LED/LCD video wall controller HDMI switcher
Product features	1.Support EDID management 2.Seamless switching 3.Supports signal cropping function 4.Supports functions such as hot swapping,power-off memory 5.Supports host computer readback,plan saving 6.Supports input and output signal rotation 7.Supports multi-window control 8.Support image adjustment function 9.Supports multiple control methods 10.Support audio follow out, audio separation
Input interface type	HDMI 2.0x4,HDCP 2.2,DP 1.2x2
Output interface type	HDMI 1.3x9 (≤15m)HDMI 2.0x1 (ring out)
Certification	CE,FCC,ROHS,HDMI,HDCP
Resolution	4096X2160@60Hz
Accessories list	12V/5A power supply x1; IR receiver x1; Remote control x1; Certificate x1;Warranty card x1; USB to RS232 serial cable(optional)
Support	ODM,OEM
Warranty	3year
