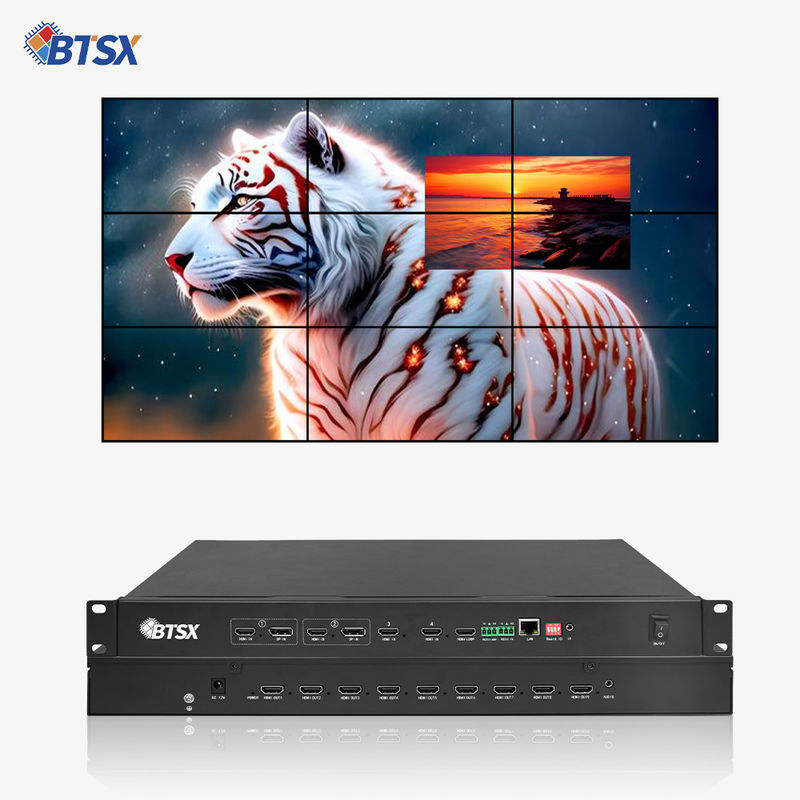

Bitvisus 4K Video Processor 3x3 3x4 3x5 3x6 Video Wall Controller 9 HDMI1.3

Bitvisus 4k60 HDMI Matrix Switcher 3x3 3x4 3x5 3x6 Video Processor Video Wall Controller

BIT-VP-U1-IC409Pro Video Wall Controller summarize

BIT-VP-IC409Pro is a newly launched ultra-high-definition splicing processor by Bit Video, which can display multiple dynamic images on multiple screens, and simultaneously realize 4-channel signal input switching, 9-channel output port expansion and splicing Function

BIT-VP-U1-IC409Pro Video Wall Controlle Product Details

☞ Versatile 4Kx2K@60 Input Support: Accommodates 4 channels of 4Kx2K@60 input, each port capable of handling distinct resolutions, and includes EDID management for seamless integration.

☞ Multi-Window Control Flexibility: Enables diverse functionalities like POP tile mode, PIP overlay, arbitrary picture overlays, roaming, cross-screen capabilities, zoom, and more, enhancing display versatility.

☞ Intuitive Control Options: Features flexible control methods including infrared remote, RS232 serial port, TCP/IP, and upper computer software control, complemented by keyboard shortcuts for swift operation.

☞ Seamless Signal Switching: One-key signal source switching ensures real-time, seamless transitions between inputs.

☞ Comprehensive Splicing Modes: Supports 16 splicing configurations, including horizontal and vertical screens, catering to diverse display layouts.

☞ Rotation & DHCP Support: Allows input rotation at 90°, 180°, 270°, and first output line rotation of 180°. Additionally, supports DHCP for network configuration.

☞ Image Fine-Tuning: Provides image effect adjustments for color, saturation, and other parameters, ensuring optimal visual quality.

☞ High-Quality Display: Full channel color depth of 24bit with RGB444 pixel format ensures vibrant, crisp visuals.

☞ Audio Flexibility: Incorporates audio separation (via 3.5mm port) with audio follow-out, enhancing audio management capabilities.

☞ Screen Management Tools: Includes screen freezing, mirroring, gamma mode, and panel adjustments for precise display control.

☞ Signal Cropping & Amplification: Enables signal cropping to remove black edges and local signal amplification for focused viewing.

☞ Versatile Mounting Solutions: Offers flexible mounting options, suitable for both desktop and wall mounting, adapting to various installation environments.

☞ Integrated Window Software: Compatible with our proprietary window software, enabling the creation and management of multiple, customizable windows for enhanced display functionality.

Typical Applications:
Ideal for ultra-high-definition video surveillance systems, massive screen walls, retail advertising displays, large-scale exhibition screens, and various other industry-specific applications requiring high-performance visual solutions.



Specification



Product name	3x3 4K60 LED/LCD video wall controller HDMI switcher
Product features	1.Support EDID management 2.Seamless switching 3.Supports signal cropping function 4.Supports functions such as hot swapping,power-off memory 5.Supports host computer readback,plan saving 6.Supports input and output signal rotation 7.Supports multi-window control 8.Support image adjustment function 9.Supports multiple control methods 10.Support audio follow out, audio separation
Input interface type	HDMI 2.0x4,HDCP 2.2,DP 1.2x2
Output interface type	HDMI 1.3x9 (≤15m)HDMI 2.0x1 (ring out)
Certification	CE,FCC,ROHS,HDMI,HDCP
Resolution	4096X2160@60Hz
Accessories list	12V/5A power supply x1; IR receiver x1; Remote control x1; Certificate x1;Warranty card x1; USB to RS232 serial cable(optional)
Support	ODM,OEM
Warranty	3year
