Product Details:
|
Place Of Origin: | Guangdong, China | Model Number: | BIT-MSE-U1-416 |
---|---|---|---|
Brand Name: | Bitvisus | Feature: | TV Wall Controller |
Type: | Digtal | Power: | 5W |
Frequency Range (Hz): | 1km | Size: | 482.6mm*396.8mm*44mm |
Output: | 16 Output | Output Interface Type: | 16HDMI |
Highlight: | 8K HD Video Projector,HDMI HD Video Projector,16 Channels Video Wall Controller |
Ultra-high resolution desktop applications, ultra-large screenwalls, command and dispatch systems, multi-screen videosurveillance, engineering display applications, multi-channelprojojection, virtual reality, surround-screen theater, largeadvertising walls, LCD/LED multi-screens, etc.
1.This is an industrial-grade high-performance product with ultra-high-definition resolution and supports up to 8Kx2K.
2.The maximum support is 4 in and 16 out, and multiple splicing modes can be combined arbitrarily horizontal screen / vertical screen / Heterotypic splicing, and supports large-scale parallel use.
3. Centralized power supply with wide voltage (100 ~ 240V), low power consumption, energy-saving and environmental protection design. Conductive heat dissipation is used internally, without any external heat dissipation measures, and its reliability is extremely high.
4.Support wired network control and wireless network control.
5. Adopt high-end programmable FPGA chip with 28nm technology, full hardware real-time processing architecture, ultra fast processing speed without delay.
6.Industrial design, thickened 6-layer PCB board, 16KV super strong anti-static ability, super product stability.
7.Supports large-scale parallel use to ensure real-time display requirements for large screens.
Ultra-high resolution desktop applications, ultra-large screen
walls, command and dispatch systems, multi-screen video
surveillance, engineering display applications, multi-channel
projection, virtual reality, surround-screen theater, large
advertising walls, LCD/LED multi-screens, etc.
Product name | BIT-MSE-U1-416 Ultra HD splicing processor |
Input Max.Pixel FPS | 600MHz |
Output Max.Pixel FPS | 165MHz |
4x4 highest resolution | 7680x4320@60Hz |
7x2 highest resolution | 3840x7560@60Hz |
2x7 highest resolution | 13440x2160@60Hz |
3x5 highest resolution | 9600x3240@30Hz |
5x3 highest resolution | 5760x5400@30Hz |
2x5 highest resolution | 9600x2160@60Hz |
5x2 highest resolution | 3840x5400@60Hz |
16x1 highest resolution | 30720x1080@60Hz |
1x16 highest resolution | 1920x17280@60Hz |
1x5 highest resolution | 9600x1080@60Hz |
1x7 highest resolution | 13440x1080@60Hz |
Factory default resolution |
3840x2160@60Hz |
Support customized arbitrary resolution |
√ |

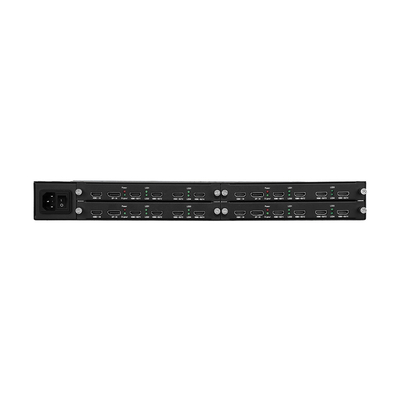

Types of input interface | 4 DP 4 HDMI 1 RJ45 Lan 1 RJ45 Debug port HDCP2.2 |
Types of output interface | 4~16 HDMI |
Size | 482.6mm*396.8mm*44mm |
Weight | 5kg |
