Product Details:
|
Place Of Origin: | Guangdong, China | Model Number: | BIT-MV-U1-MD403 |
---|---|---|---|
Brand Name: | Bitvisus | Application Scenarios: | Security Monitoring, AV Control Rooms |
Display Resolutions: | Multiple Resolutions Supported (up To 4K60) | Signal Switching: | Easy Signal Switching Via Mouse And Keyboard |
Max Output Resolution: | 4096x2160P60Hz | Interface Type: | HDMI 2.0, USB, RS232 |
KVM Functionality: | Seamless Control Of Up To 4 Computers | Resolution Adjustment: | Independent Zooming For Each Window |

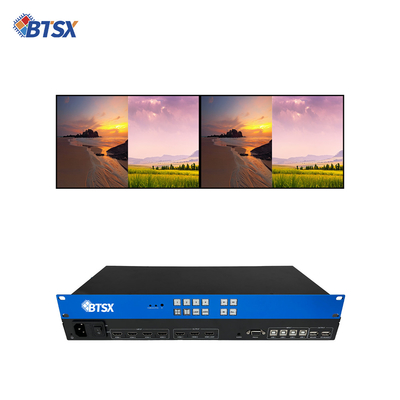

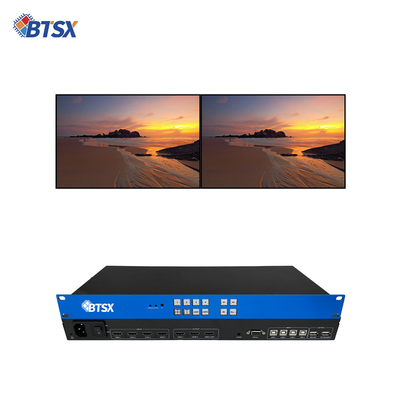

BIT-MV-U1-MD403 Product Overview
For professional environments demanding the very best in video processing and control, look no further than the BIT-MV-U1-MD403 KVM multi-viewer processor. This innovative device supports up to 4K60 resolution and allows for simultaneous display of multiple high-definition images on ultra-high-definition displays. With four HDMI 2.0 input ports and three HDMI 2.0 output ports (including a loop-out), the BIT-MV-U1-MD403 provides ample connectivity options for a wide range of applications. Its advanced control features, including mouse and keyboard KVM functionality, remote control, and RS232 communication, ensure seamless integration and operation. Customize your display layouts, recall predefined modes, and enjoy unparalleled control over your visual content with the BIT-MV-U1-MD403.
BIT-MV-U1-MD403 Product Features
Supports 4-way HDMI 2.0 signal input and 3-way HDMI 2.0 signal output;
Supports 4-way computer USB/BM input and 2-way USB/AM mouse and keyboard output;
Supports 11 conventional resolution outputs, such as 3840x2160P60, 4096x2160P60, 1920x1200P60, 1920x1080P60, etc.;

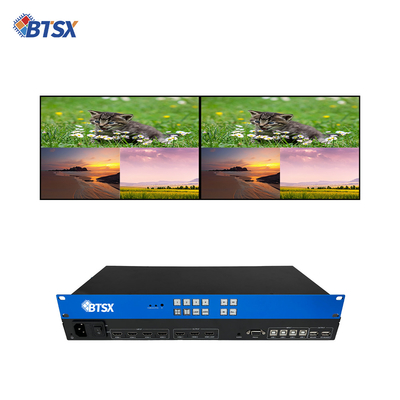

Supports any combination of multiple windows such as dual-screen simultaneous display of 4 windows, 3 windows, 2 windows, single window, etc.;
Supports dual-screen different display 2 Window, single window and other window combination modes;

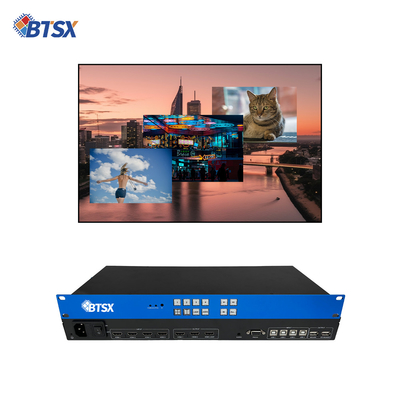

Supports controlling window size, PIP transparency, signal source switching, etc. through mouse and keyboard;
Supports asynchronous or synchronous operation of 4 computers with one set of mouse and keyboard;
Supports mouse, key, infrared remote control, can switch signal full screen, 4 screens, 2 screens, scene call, loop audio output and video loop switching, loop change output resolution;
Adopts pure hardware structure design, no operating system, the whole system is completely closed operation, does not require computer and startup software, etc., very simple, good stability, high output graphics quality;
No system or WEB control software is required, only mouse and keyboard can be used to quickly switch all signals and realize the individual scaling of each window.
BIT-MV-U1-MD403 Product Parameters
Product Name | BIT-MV-U1-MD403 |
Input Port | 4xHDMI 2.0 |
Max Input Resolution | 4096x2160P60Hz |
Output Port | 3xHDMI2.0(其中1路环出) |
Supported Output Resolutions |
4096x2160P60Hz,4096x2160P30Hz,3840x2160P60Hz, 3840x2160P30Hz,2560x1600P60Hz,2560x1440P60Hz, 2560x1080P60Hz,2048x1152P60Hz,1920x1440P60Hz, 1920x1200P60Hz,1920x1080P60Hz |

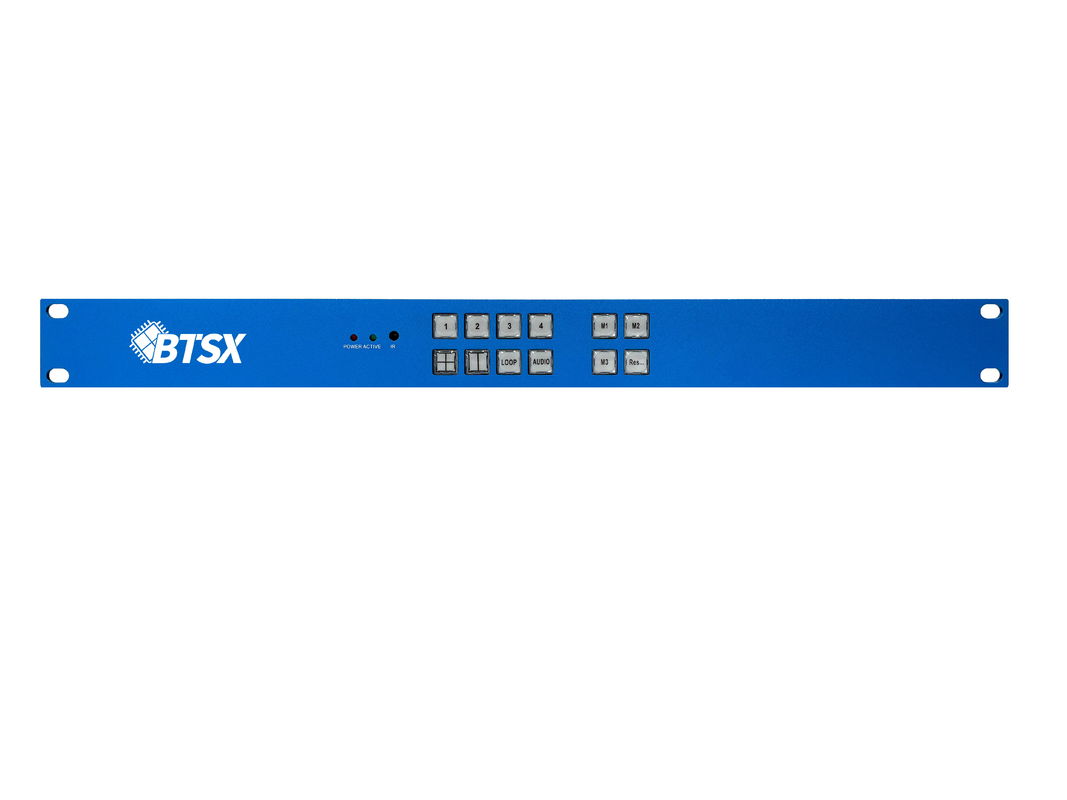

Control Methods | Keyboard and mouse,remote control,panel buttons, RS232 |
Audio | HDMI audio follow,3.5mm audio separation |
Product Dimensions | LxWxH:483mm x176.2mm x44.5mm |
Packaging Dimensions | LxWxH:540mmx290mm x110mm |
Product Weight | 1.4KG |
Packaging Weight | 2.3KG |
Power Supply | 220V |
Accessories List | 220V power cable xl,remote control xl |
Warranty | One year |
