Product Details:
|
Country Of Origin: | Shenzhen, China | Certification: | CE, FCC, RoHS |
---|---|---|---|
Product Name: | BIT-MSE-LT104PRO | Brand: | Bitvisus |
Display Modes: | 1xN, Nx1, MxN | List Of Accessories: | 12V Power Supply X1、HDMI Cable X1 |
1x2 Mode,with Input Support Resolution: | Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz、2560x720@60Hz Firmware 3:2560x800@60Hz、2048x768@60Hz | 2x1 Mode,with Input Support Resolution: | Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz、1280x1440@60Hz Firmware 3:1280x1600@60Hz、1024x1536@60Hz |
Audio Support: | HDMI Audio, SPDIF | Max Pixel Output: | 165MHz |

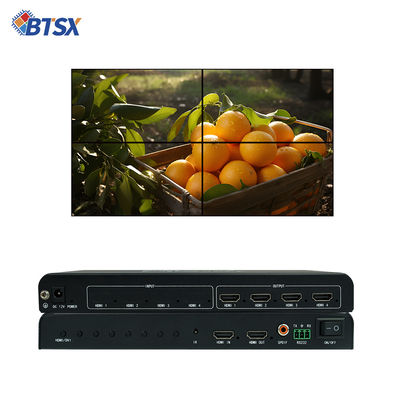

Boasting a sleek industrial design, the BIT-MSE-LT104PRO is crafted for durability and longevity. Made with premium materials, it combines low power consumption with efficient internal conduction and heat dissipation, eliminating the need for external cooling measures. Perfect for large-scale installations, this high-performance extender supports resolutions up to 1920x1200@60Hz, ensuring crisp and clear visuals across multiple displays.
1. Input supports HDMI 2.0, HDCP 2.2;
2. Ultra-high resolution, the output with the highest support resolution
4x1920x1200@60Hz/1920x1200x4@60Hz;
3. Support 1 xN, Nx 1, MxN, no stretching, no deformation, more openvision;
4. Pure hardware design, plug and play, does not require any software;
5. Low power consumption, energy saving and environmental
protection design, internal conduction and heat dissipation, without
any external heat dissipation measures
product name | BIT-MSE-LT104PRO |
The max pixel frequency of input interface |
600MHz |
The max pixel frequency of output interface |
165MHz |
1x2 mode,with input support resolution |
Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz,2560x720@60Hz Firmware 3:2560x800@60Hz,2048x768@60Hz |
2x1 mode,with input support resolution |
Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz,1280x1440@60Hz Firmware 3:1280x1600@60Hz,1024x1536@60Hz |
1x3 mode,with input support resolution |
Firmware 1:5760x1200@60Hz Firmware 2:5760x1080@60Hz,3840x720@60Hz Firmware 3:3840x800@60Hz,3072x768@60Hz |
3x1 mode,with input support resolution |
Firmware 1:1920x3600@60Hz Firmware 2:1920x3240@60Hz,1280x2160@60Hz Firmware 3:1280x2400@60Hz,1024x2304@60Hz |
1x4 mode,with input support resolution |
Firmware 1:7680x1200@60Hz Firmware 2:7680x1080@60Hz,5120x720@60Hz |
Firmware 3:5120x800@60Hz,4096x768@60Hz | |
4x1 mode,with input support resolution |
Firmware 1:1920x4800@60Hz Firmware 2:1920x4320@60Hz,1280x2880@60Hz Firmware 3:1280x3200@60Hz,1024x3072@60Hz |
2x2 mode,with input support resolution |
Firmware 1:3840x2400@60Hz,3840x2400@30Hz Firmware 2:3840x2160@60Hz,3840x2160@30Hz, 2560x1440@60Hz Firmware 3:2560x1600@60Hz,2048x1536@60Hz |
The output supports the resolution (In 3 firmware versions) |
Firmware 1:1920x1200@60Hz Firmware 2:1920x1080@60Hz,1280x720@60Hz Firmware 3:1280x800@60Hz,1024x768@60Hz (See the attachment for the firmware description) |
Input interface type | HDMI2.0x1 |
Output interface type | HDMI1.3 x4,HDMI2.0 x1 (loop out) |
Output mode | DVI/HDMI(Keys switch) |
audio frequency | Support HDMI audio with out or SPDIF audio separation |
the maximum line length of input | 3M(The HDMI fiber cable is not recommended) |
The output supports the maximum line length distance |
15M |
product size | 233x108x28.7mm |
tare | 1.6KG |
List of accessories | 12V power supply x1,HDMI cable x1 |
power | 5.88W |
Quality Assurance | Three years |
