Ultra HD Processor BIT-MSE-LT104PRO Multi-Desktop Multi-Channel Projection with 12V power supply and HDMI cable included

Name: Ultra HD Processor BIT-MSE-LT104PRO Multi-Desktop Multi-Channel Projection with 12V power supply and HDMI cable included
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-LT104PRO
Price: 632.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-MSE-LT104PRO

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T, PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    HDMI cable Ultra HD Processor, Multi-Channel Projection Ultra HD Processor


Country Of Origin:	Shenzhen, China	Certification:	CE, FCC, RoHS
Product Name:	BIT-MSE-LT104PRO	Brand:	Bitvisus
Display Modes:	1xN, Nx1, MxN	List Of Accessories:	12V Power Supply X1、HDMI Cable X1
1x2 Mode,with Input Support Resolution:	Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz、2560x720@60Hz Firmware 3:2560x800@60Hz、2048x768@60Hz	2x1 Mode,with Input Support Resolution:	Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz、1280x1440@60Hz Firmware 3:1280x1600@60Hz、1024x1536@60Hz
Audio Support:	HDMI Audio, SPDIF	Max Pixel Output:	165MHz

Country Of Origin:	Shenzhen, China
Certification:	CE, FCC, RoHS
Product Name:	BIT-MSE-LT104PRO
Brand:	Bitvisus
Display Modes:	1xN, Nx1, MxN
List Of Accessories:	12V Power Supply X1、HDMI Cable X1
1x2 Mode,with Input Support Resolution:	Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz、2560x720@60Hz Firmware 3:2560x800@60Hz、2048x768@60Hz
2x1 Mode,with Input Support Resolution:	Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz、1280x1440@60Hz Firmware 3:1280x1600@60Hz、1024x1536@60Hz
Audio Support:	HDMI Audio, SPDIF
Max Pixel Output:	165MHz

Product Description

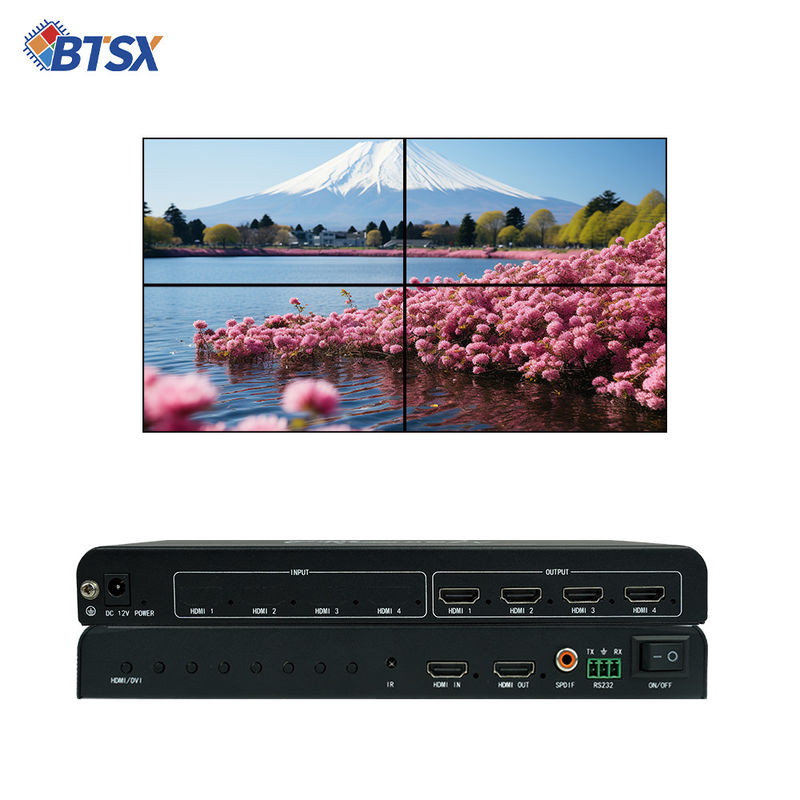

Ultra HD Processor BIT-MSE-LT104PRO for Multi-Desktop & Multi-Channel Projection

Boasting a sleek industrial design, the BIT-MSE-LT104PRO is crafted for durability and longevity. Made with premium materials, it combines low power consumption with efficient internal conduction and heat dissipation, eliminating the need for external cooling measures. Perfect for large-scale installations, this high-performance extender supports resolutions up to 1920x1200@60Hz, ensuring crisp and clear visuals across multiple displays.

Ultra HD Processor BIT-MSE-LT104PRO Multi-Desktop Multi-Channel Projection with 12V power supply and HDMI cable included 0

Multi-function BIT-MSE-LT104PRO Multi-Display Controller Features

1. Input supports HDMI 2.0, HDCP 2.2;
2. Ultra-high resolution, the output with the highest support resolution
4x1920x1200@60Hz/1920x1200x4@60Hz;
3. Support 1 xN, Nx 1, MxN, no stretching, no deformation, more openvision;
4. Pure hardware design, plug and play, does not require any software;
5. Low power consumption, energy saving and environmental
protection design, internal conduction and heat dissipation, without
any external heat dissipation measures

Ultra HD Processor BIT-MSE-LT104PRO Multi-Desktop Multi-Channel Projection with 12V power supply and HDMI cable included 1

Multifunction BIT-MSE-LT104PRO Multi-Display Controller Applications

Suitable for resolution desktop applications, large screen walls, engineering display applications, large advertising walls, LCD multi-screens, and so on.

Ultra HD Processor BIT-MSE-LT104PRO Multi-Desktop Multi-Channel Projection with 12V power supply and HDMI cable included 2

Parameters of Multi-function BIT-MSE-LT104PRO Multi-display Controller

product name	BIT-MSE-LT104PRO
The max pixel frequency of input interface	600MHz
The max pixel frequency of output interface	165MHz
1x2 mode,with input support resolution	Firmware 1:3840x1200@60Hz Firmware 2:3840x1080@60Hz,2560x720@60Hz Firmware 3:2560x800@60Hz,2048x768@60Hz
2x1 mode,with input support resolution	Firmware 1:1920x2400@60Hz Firmware 2:1920x2160@60Hz,1280x1440@60Hz Firmware 3:1280x1600@60Hz,1024x1536@60Hz
1x3 mode,with input support resolution	Firmware 1:5760x1200@60Hz Firmware 2:5760x1080@60Hz,3840x720@60Hz Firmware 3:3840x800@60Hz,3072x768@60Hz
3x1 mode,with input support resolution	Firmware 1:1920x3600@60Hz Firmware 2:1920x3240@60Hz,1280x2160@60Hz Firmware 3:1280x2400@60Hz,1024x2304@60Hz
1x4 mode,with input support resolution	Firmware 1:7680x1200@60Hz Firmware 2:7680x1080@60Hz,5120x720@60Hz
	Firmware 3:5120x800@60Hz,4096x768@60Hz
4x1 mode,with input support resolution	Firmware 1:1920x4800@60Hz Firmware 2:1920x4320@60Hz,1280x2880@60Hz Firmware 3:1280x3200@60Hz,1024x3072@60Hz
2x2 mode,with input support resolution	Firmware 1:3840x2400@60Hz,3840x2400@30Hz Firmware 2:3840x2160@60Hz,3840x2160@30Hz, 2560x1440@60Hz Firmware 3:2560x1600@60Hz,2048x1536@60Hz
The output supports the resolution (In 3 firmware versions)	Firmware 1:1920x1200@60Hz Firmware 2:1920x1080@60Hz,1280x720@60Hz Firmware 3:1280x800@60Hz,1024x768@60Hz (See the attachment for the firmware description)
Input interface type	HDMI2.0x1
Output interface type	HDMI1.3 x4,HDMI2.0 x1 (loop out)
Output mode	DVI/HDMI(Keys switch)
audio frequency	Support HDMI audio with out or SPDIF audio separation
the maximum line length of input	3M(The HDMI fiber cable is not recommended)
The output supports the maximum line length distance	15M
product size	233x108x28.7mm
tare	1.6KG
List of accessories	12V power supply x1,HDMI cable x1
power	5.88W
Quality Assurance	Three years
