Industrial-Grade High-Performance Rotary Splicer BIT-VWC-104R for Multi-Desktop Operation - HDMI Input & Output

Name: Industrial-Grade High-Performance Rotary Splicer BIT-VWC-104R for Multi-Desktop Operation - HDMI Input & Output
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-VWC-104R
Price: 632.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-VWC-104R

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T, PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    HDMI Rotary Splicer


Pseudolaric Acid:	BIT-VWC-104R	Maximum Video Pixel Frequency Of Input Interface:	600MHz
Maximum Video Pixel Frequency Of Output Interface:	165MHz	Input Single Port Support Resolution:	3840x2160@30Hz, 1920x1080@60Hz
Output Single Port Support Resolution:	1920x1080@60Hz	Input Support Maximum Wire Length:	3M(HDMI Fibre Optic Cable Is Not Recommended）
Maximum Line Length Supported By Output:	15M	Input Rotation:	90/180/270°
Sound Frequency:	SPDIF Audio Separation	Control Method:	Pushbutton, Remote Control

Pseudolaric Acid:	BIT-VWC-104R
Maximum Video Pixel Frequency Of Input Interface:	600MHz
Maximum Video Pixel Frequency Of Output Interface:	165MHz
Input Single Port Support Resolution:	3840x2160@30Hz, 1920x1080@60Hz
Output Single Port Support Resolution:	1920x1080@60Hz
Input Support Maximum Wire Length:	3M(HDMI Fibre Optic Cable Is Not Recommended）
Maximum Line Length Supported By Output:	15M
Input Rotation:	90/180/270°
Sound Frequency:	SPDIF Audio Separation
Control Method:	Pushbutton, Remote Control

Product Description

Industrial-Grade High-Performance Rotary Splicer BIT-VWC-104R for Multi-Desktop Operation - HDMI Input & Output

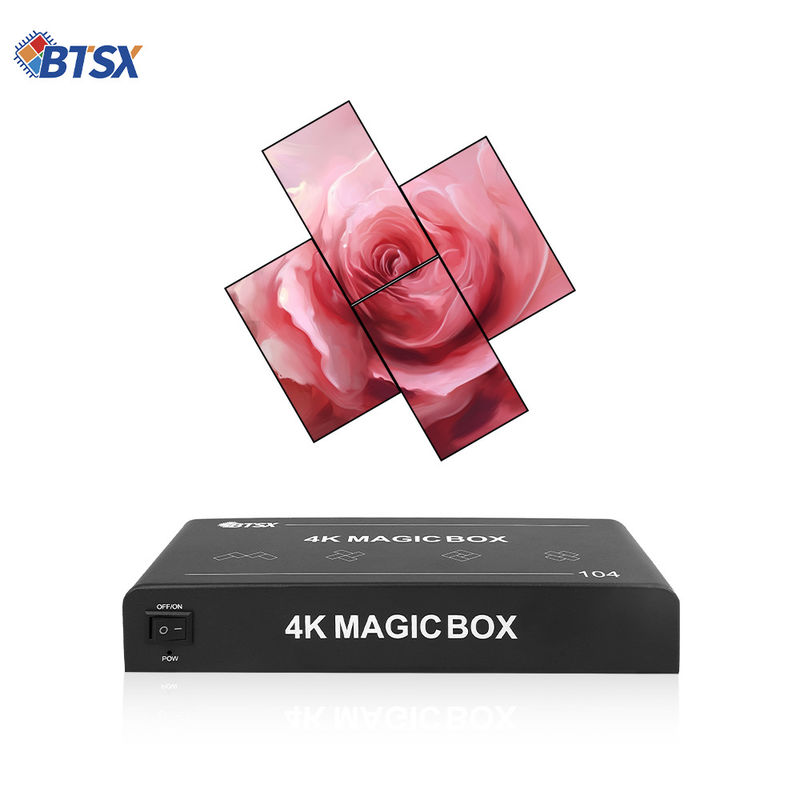

The BIT-VWC-104R rotary splicer is an industrial-grade, high-performance product tailored for multi-desktop operation needs. It features a high-definition processing chip and supports HDMI 2.0 input with resolutions up to 3840x2160@30Hz or 1920x1080@60Hz, as well as HDMI output at 1920x1080@60Hz. This versatile splicer is widely used in KTV, large screen walls, engineering display applications, large advertising walls, LCD multi-screen setups, and more.

Industrial-Grade High-Performance Rotary Splicer BIT-VWC-104R for Multi-Desktop Operation - HDMI Input & Output 0

BIT-VWC-104R High-Performance Multi Display Controller Product characteristics

It offers input support for HDMI 2.0 and HDCP 2.2, ensuring compatibility with the latest standards. With ultra-high resolution capabilities, it outputs up to a supported resolution of 1920x1080@60Hz. The splicer supports 2x2, 1x2, 1x3, and 1x4 modes, allowing for input rotation at 90, 180, or 270 degrees.

Thanks to its pure hardware design, the BIT-VWC-104R is plug-and-play, requiring no additional software. It also boasts low power consumption, an energy-saving and environmentally friendly design, and internal conduction cooling, eliminating the need for any external cooling measures and ensuring high reliability.

Industrial-Grade High-Performance Rotary Splicer BIT-VWC-104R for Multi-Desktop Operation - HDMI Input & Output 1

Industrial-Grade High-Performance Rotary Splicer BIT-VWC-104R for Multi-Desktop Operation - HDMI Input & Output 2

BIT-VWC-104R High-Performance Multi Display Controller Product specifications

Pseudolaric acid	BIT-VWC-104R
Input Interface Type	HDMI 2.0x1
Output Connector Type	HDMI 1.3x4,HDMI 2.0x1(loop)
Maximum video pixel frequency of input interface	600MHz
Maximum video pixel frequency of output interface	165MHz
Input single port support resolution	3840x2160@30Hz,1920x1080@60Hz
Output single port support resolution	1920x1080@60Hz
Input Support Maximum Wire Length	3M(HDMI fibre optic cable is not recommended)
Maximum line length supported by output	15M
Input Rotation	90/180/270°
Sound frequency	SPDIF Audio separation
Control method	Pushbutton, Remote Control
Product Size	233x108x28.7mm
Package weight	1.2KG
List of accessories	Remote Control x1, 12V Power Supply x1, HDMI Cable x1, Certificate of Conformity x1, Warranty Card x1
Power supply	12V@2A AC-DC
Warranty	3 years
Power (output)	5.88W
