Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1 HD 4k 2x2 video wall controller

Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller
Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller
Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller

Large Image :  Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1 HD 4k 2x2 video wall controller

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-VWC-104R
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1 HD 4k 2x2 video wall controller

Description
Brand: Bitvisus Place Of Origin: China
Pseudolaric Acid: BIT-VWC-104R Color: Black
Control Method: IR Control, Panel Control,PC Upper Computer Input Interface: HDMI 2.0x1
Output Interface: HDMI 1.3x4 Product Size: 233x108x28.7mm
Resolution Output: 1920x1080@60Hz Package Weight: 1.2KG

Multi-Screen Splicing for Advertising and Surveillance Ultra HD 4k 2x2 Video Wall Controller

The BIT-VWC-104R is an industrial-grade, high-performance HDMI splitter designed for multi-desktop operation. Equipped with a high-definition processing chip, it supports 3840x2160@30Hz and 1920x1080@60Hz resolution input, outputting at 1920x1080@60Hz. Ideal for KTVs, large screen walls, engineering displays, and advertising walls, this splitter offers seamless integration and flexibility.



Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller 0



Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1 HD 4k 2x2 video wall controller

  1. Ultra-High Resolution: Capable of handling resolutions up to 4K (3840x2160@30Hz) for input and Full HD (1920x1080@60Hz) for output.

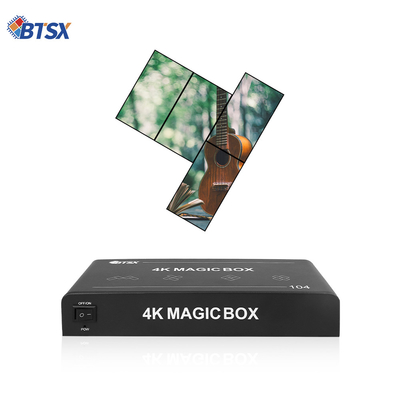

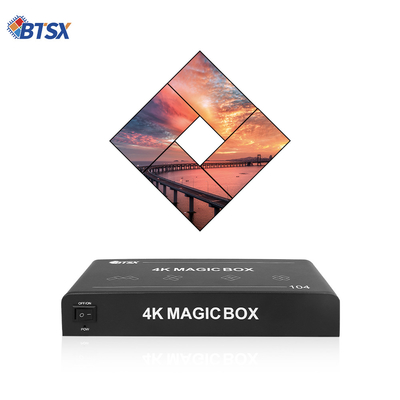

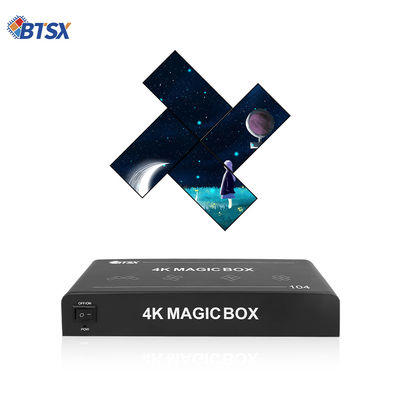

  2. Rotation Capability: Offers 90/180/270° rotation of input signals, enabling flexible multi-screen configurations including 1x2, 1x3, 1x4, and 2x2 modes.
  3. Pure Hardware Design: Plug-and-play functionality eliminates the need for software installation, simplifying setup and operation.
  4. Energy-Efficient: Low power consumption and an internal conduction cooling system ensure long-term reliability without requiring external cooling measures.
  5. Flexible Control Options: Comes with both pushbutton and remote control options, allowing users to easily switch between display modes and adjust settings.
  6. Wide Compatibility: Compatible with a wide range of devices, making it a versatile solution for various professional and commercial applications.



Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller 1

Product Application



  1. Entertainment Venues: Elevates KTV experiences with dynamic, multi-screen visuals.
  2. Advertising & Marketing: Drives attention with high-definition, multi-faceted advertising displays.
  3. Public Spaces & Events: Perfect for large-scale exhibitions, conferences, and other public gatherings requiring impressive visual presentations.
  4. Corporate Environments: Enhances control rooms, boardrooms, and other corporate settings with professional-grade display solutions.
  5. Retail Outlets: Showcases products and promotions in eye-catching, multi-screen configurations.



Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller 2



BIT-VWC-104R High-Performance Multi Display Controller Product specifications



Pseudolaric acid BIT-VWC-104R
Input Interface Type HDMI 2.0x1
Output Connector Type HDMI 1.3x4,HDMI 2.0x1(loop)
Maximum video pixel frequency of input interface 600MHz
Maximum video pixel frequency of output interface 165MHz
Input single port support resolution 3840x2160@30Hz,1920x1080@60Hz
Output single port support resolution 1920x1080@60Hz
Input Support Maximum Wire Length 3M(HDMI fibre optic cable is not recommended)
Maximum line length supported by output 15M
Input Rotation 90/180/270°
Sound frequency SPDIF Audio separation
Control method Pushbutton, Remote Control
Product Size 233x108x28.7mm
Package weight 1.2KG
List of accessories Remote Control x1, 12V Power Supply x1, HDMI Cable x1, Certificate of Conformity x1, Warranty Card x1
Power supply 12V@2A AC-DC
Warranty 3 years
Power (output) 5.88W



FAQ

Bitvisus FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ?
1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.

Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1  HD 4k 2x2 video wall controller 3
