Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller

Certification
China Shenzhen Bitvisus Technology Limited certification
I'm Online Chat Now

Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller

Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller
Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller
Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller

Large Image :  Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller

Product Details:
Place of Origin: China
Brand Name: Bitvisus
Certification: CE,HDMI,HDCP,RoHS,FCC
Model Number: BIT-VWC-104R
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Contact Us
Packaging Details: Packing box
Delivery Time: 7-30day
Payment Terms: T/T, PayPal
Supply Ability: 1000Piece/30day

Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller

Description
Brand: Bitvisus Pseudolaric Acid: BIT-VWC-104R
Color: Black Input Interface: HDMI 2.0x1
Output Interface: HDMI 1.3x4 Product Name: 4K Video Wall Controller
Control Method: IR Control, Panel Control,PC Upper Computer Resolution: 3840x2160@30Hz
Resolution Output: 1920x1080@60Hz Product Size: 233x108x28.7mm

Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller

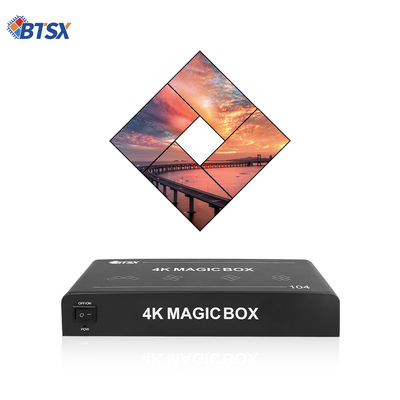

The BIT-VWC-104R is an industrial-grade, high-performance HDMI splitter designed for multi-desktop operation. Equipped with a high-definition processing chip, it supports 3840x2160@30Hz and 1920x1080@60Hz resolution input, outputting at 1920x1080@60Hz. Ideal for KTVs, large screen walls, engineering displays, and advertising walls, this splitter offers seamless integration and flexibility.



Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller 0



Multi-Screen Splicing for Advertising and Surveillance Ultra HDMI 2.0x1 HD 4k 2x2 video wall controller

  1. Ultra-High Resolution: Capable of handling resolutions up to 4K (3840x2160@30Hz) for input and Full HD (1920x1080@60Hz) for output.

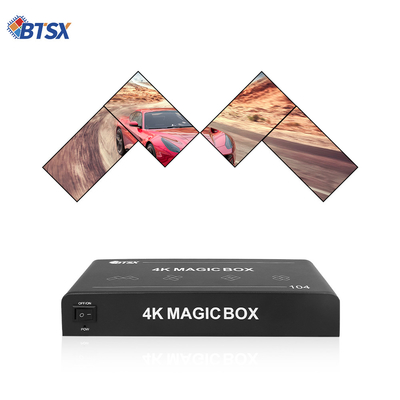

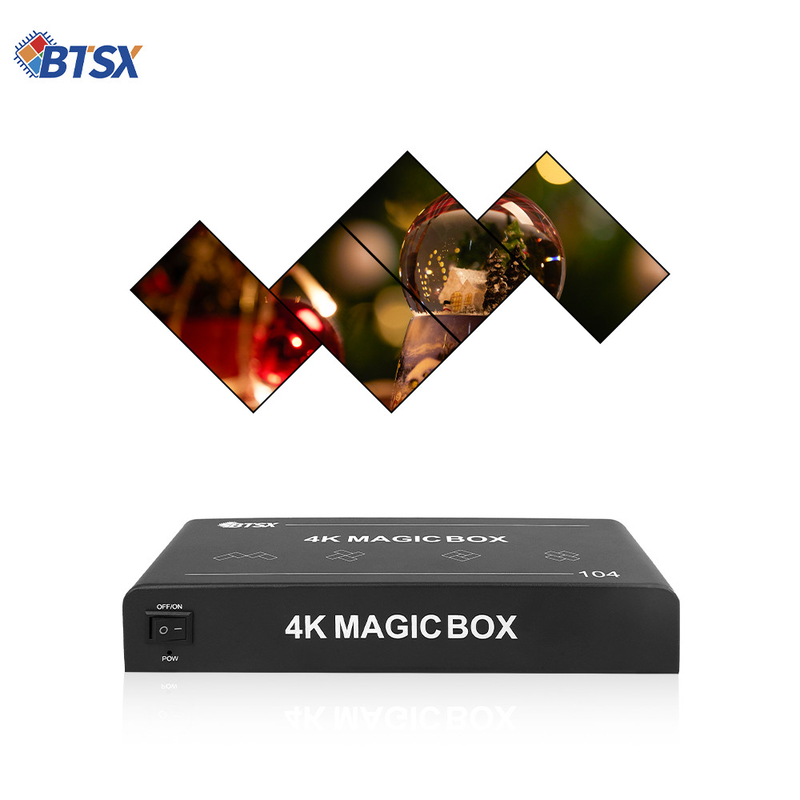

  2. Rotation Capability: Offers 90/180/270° rotation of input signals, enabling flexible multi-screen configurations including 1x2, 1x3, 1x4, and 2x2 modes.
  3. Pure Hardware Design: Plug-and-play functionality eliminates the need for software installation, simplifying setup and operation.
  4. Energy-Efficient: Low power consumption and an internal conduction cooling system ensure long-term reliability without requiring external cooling measures.
  5. Flexible Control Options: Comes with both pushbutton and remote control options, allowing users to easily switch between display modes and adjust settings.
  6. Wide Compatibility: Compatible with a wide range of devices, making it a versatile solution for various professional and commercial



Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller 1

Product Application



KTV Systems
Large Screen Walls
Engineering Displays
Advertising Walls
LCD Multi-screen Setups
Commercial Display Solutions
Control Rooms
Digital Signage Networks
Video Conferencing Systems



Bitvisus 3840x2160@30Hz Plug and play HDMI 1x4 2x2 1x3 Video Wall Controller 2



BIT-VWC-104R High-Performance Multi Display Controller Product specifications



Pseudolaric acid BIT-VWC-104R
Input Interface Type HDMI 2.0x1
Output Connector Type HDMI 1.3x4,HDMI 2.0x1(loop)
Maximum video pixel frequency of input interface 600MHz
Maximum video pixel frequency of output interface 165MHz
Input single port support resolution 3840x2160@30Hz,1920x1080@60Hz
Output single port support resolution 1920x1080@60Hz
Input Support Maximum Wire Length 3M(HDMI fibre optic cable is not recommended)
Maximum line length supported by output 15M
Input Rotation 90/180/270°
Sound frequency SPDIF Audio separation
Control method Pushbutton, Remote Control

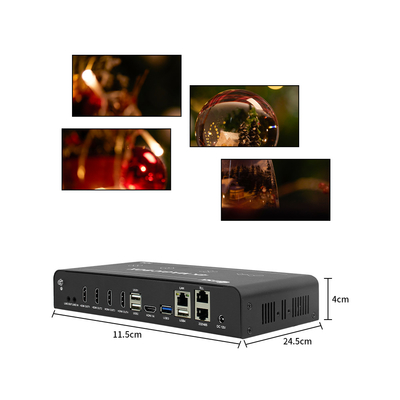

Product Size 233x108x28.7mm
Package weight 1.2KG
List of accessories Remote Control x1, 12V Power Supply x1, HDMI Cable x1, Certificate of Conformity x1, Warranty Card x1
Power supply 12V@2A AC-DC
Warranty 3 years
Power (output) 5.88W
