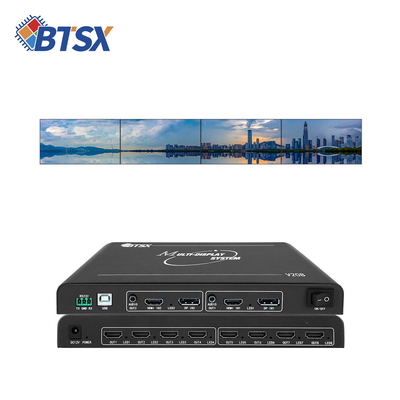

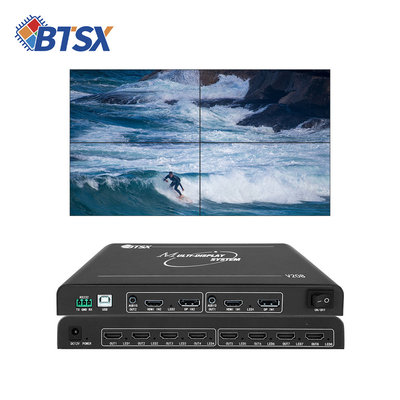

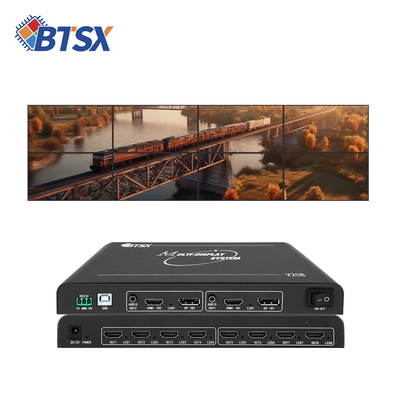

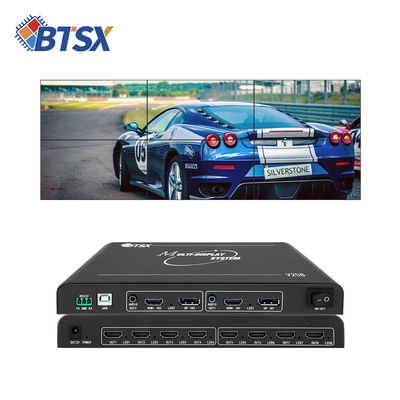

1X1 1X2 1X3 1X6 2X1 2X2 2X4 HDMI Video Switcher 2 In 8 Out Video Wall Controller

Name: 1X1 1X2 1X3 1X6 2X1 2X2 2X4 HDMI Video Switcher 2 In 8 Out Video Wall Controller
Brand: Shenzhen Bitvisus Technology Limited
SKU: BIT-MSE-8K-208HD
Price: 632.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bitvisus

Certification: CE,HDMI,HDCP,RoHS,FCC

Model Number: BIT-MSE-8K-208HD

Payment & Shipping Terms

Minimum Order Quantity: 1Piece

Price: Contact Us

Packaging Details: Packing box

Delivery Time: 7-30day

Payment Terms: T/T, PayPal

Supply Ability: 1000Piece/30day

Get Best Price

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    2X4 HDMI Video Switcher, 2X2 HDMI Video Switcher, 1X6 Video Wall Controller


Model Number:	BIT-MSE-8K-208HD	Place Of Origin:	Guangdong, China
Brand Name:	Bitvisus	Power:	DC12V2A
Frequency Range (Hz):	Other	Dimension (L X W X H):	233mm108mm28.7mm
Warranty:	12 Months	Input Interface:	2CH HDMI 2.0/DP 1.2 (either One)
HDCP Support:	HDCP 2.2 Enabled	Output Interface:	8CH HDMI 1.3

Model Number:	BIT-MSE-8K-208HD
Place Of Origin:	Guangdong, China
Brand Name:	Bitvisus
Power:	DC12V2A
Frequency Range (Hz):	Other
Dimension (L X W X H):	233mm108mm28.7mm
Warranty:	12 Months
Input Interface:	2CH HDMI 2.0/DP 1.2 (either One)
HDCP Support:	HDCP 2.2 Enabled
Output Interface:	8CH HDMI 1.3

Product Description

BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller

The BIT - MSE - 8K - 208HD is an industrial - grade high - performance product with HDMI/DP input and HDMI output interfaces, specifically developed for multi - desktop operation and multi - channel projection fusion needs.

1X1 1X2 1X3 1X6 2X1 2X2 2X4 HDMI Video Switcher 2 In 8 Out Video Wall Controller 0

Features:

Advanced Support for 2-into-8-out, accommodating diverse horizontal screen splicing configurations.
Boasts an ultra-high-definition resolution of up to 7680*2400@60Hz, with each output port delivering up to 1920x1200@60Hz.
Ensures precise point-to-point display, free from stretching or deformation, providing a broader visual field.
Utilizes a 45nm high-end programmable FPGA chip for rapid processing without delays.
Incorporates an industrial-grade design with a thickened 4-layer PCB board and 16KV super anti-static capability for enhanced stability.
Offers low power consumption, energy-efficient, and environmentally friendly internal conduction cooling.
Supports synchronized audio and video transmission.

Application

Ideal for a wide range of applications including ultra-high resolution desktop setups, massive screen walls, command and control systems, multi-screen video surveillance, engineering display projects, multi-channel projection, virtual reality experiences, surround-screen theaters, large-scale advertising displays, LCD/LED multi-screen setups, and more.

BIT-MSE-8K-208HD 1X1 1X2 1X3 1X6 2X1 2X2 2X4 Video Switcher 2 In 8 Out Video Wall Controller

Diethylammonium chloride		BIT-MSE-8K-208HD
importation	input interface	2CH HDMI 2.0/DP 1.2 (either one)
	HDCP function	Supports HDCP 2.2
	transmission distance	≤5 meters
	Input Maximum Pixel Clock	600MHz
	Input single port resolution	7680x1080@60Hz/7680x1200@60Hz (resolution within 4Kx2K@60Hz bandwidth)
	Input color format	RGB888, 24bit
exports	output interface	8CH HDMI 1.3
	transmission distance	≤15 meters
	Output Maximum Pixel Clock	165M
	Output single port resolution	1920x1200@60Hz 1280x800@60Hz (backward compatible, customizable)
	Output Color Format	RGB888, 24bit
sound frequency	audio output	3.5mm audio jack (audio split)
norm	electric power source	DC 12V/2A
	Maximum power consumption	22W
	Storage/working temperature	-10 to 50ºC/0 to 50ºC
	Product Size	L290mmW143mmH22mm
	Packing weight (net weight of equipment)	1.3KG
	List of accessories	12V/2A Power Supply1, HDMI/DP Cable2, Certificate of Conformity1, Warranty Card1
(sth. or sb) else	after-sales service	Warranty 3 years

FAQ

Bitvisus FAQ

Why Choose Bitvisus ?

1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).

2. OEM/ODM offered for our customers.

3.We are one of leading Manufacturer in this field.

How to order ?

1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.

3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale

1.Our products come with 12 months warranty and life-time service support.

2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.

Shipment & payment

1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
